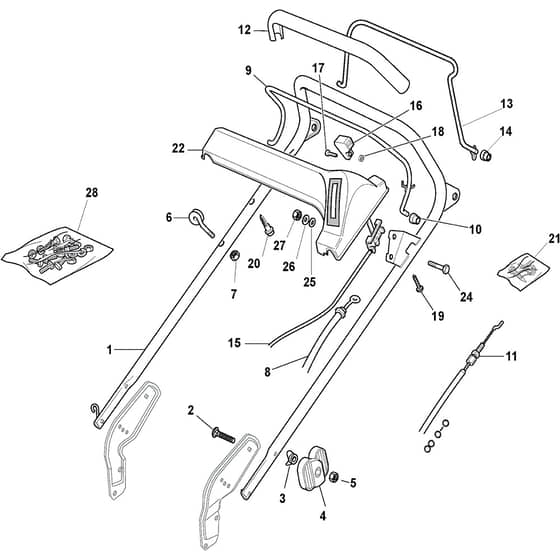

CASTEL PLUS - 2004 - 292153643/Y - Castel Garden Rotary Mower Handle Upper Part Diagram

Name: CASTEL PLUS - 2004 - 292153643/Y - Castel Garden Rotary Mower Handle Upper Part Diagram
SKU: castel_plus_292153643_y_handle_upper_part-group
Price: 1.27 GBP
Availability: InStock

Part No. castel_plus_292153643_y_handle_upper_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CASTEL PLUS - 2004 - 292153643/Y - Castel Garden Rotary Mower Handle Upper Part Diagram

Description

Castel Garden CASTEL PLUS Parts Diagram

Product Name - CASTEL PLUS

Model Year - 2004

Model Type - NP 534 TR/E

Art.N - 292153643/Y

Engine Model -

	Part No.	Details
1	MO381007028/1 Available to backorder	Handle. Upper Part Black	£61.81 £51.51
2	MO112819121/0 In stock	Screw From 01-9-2017	£1.97 £1.64
3	MO122671651/0 In stock	Washer	£1.97 £1.64
4	MO122399900/0 In stock	Black Knob	£1.55 £1.29
5	MO112293200/0 In stock	Nut	£1.55 £1.29
6	MO122430309/0 Available to backorder	Spring	£3.10 £2.58
7	MO112154330/0 In stock	Nut	£1.55 £1.29
8	MO181000634/0 Available to backorder	Cable. Thread Engine Brake B&S 675Es. 625E Series	£13.15 £10.96
9	MO181003291/3 Available to backorder	Lever. Engine Brake From 01-9-2006	£14.93 £12.44
10	MO122041966/0 In stock	Bushing	£1.55 £1.29
11	MO381000669/0 Available to backorder	Cable Rear Drive (General Transmission)	£19.09 £15.91
11	MO381000673/0 In stock	Cable Rear Drive (Bi. Ci. Di.)	£19.63 £16.36
12	MO122291050/0 Available to backorder	Handgrip Black	£14.22 £11.85
13	MO181003288/1 Available to backorder	Driving Lever	£11.60 £9.67
14	MO322041965/1 Available to backorder	Bushing From 01-9-2004	£1.63 £1.36
15	MO181007091/0 Available to backorder	Throttle Cable B&S Engine	£23.09 £19.24
16	MO122399801/0 Available to backorder	Black Knob	£1.52 £1.27
17	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
18	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
19	MO112728460/0 Available to backorder	Screw	£1.55 £1.29
20	MO122943006/0 Available to backorder	Screw	£1.84 £1.53
22	MO422120150/0 Available to backorder	Red Dashboard	£33.79 £28.16
23	MO114356693/0 Available to backorder	Throttle Label B&S Engine	£1.70 £1.42
24	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
25	MO112523020/0 In stock	Washer	£1.55 £1.29
26	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
28	MO381008610/1 Available to backorder	Screw Assembly Kit	£11.60 £9.67
