BS 45 D - 2012-2022 - 286321004/12 - Castel Garden Brushcutter Engine Diagram

Description

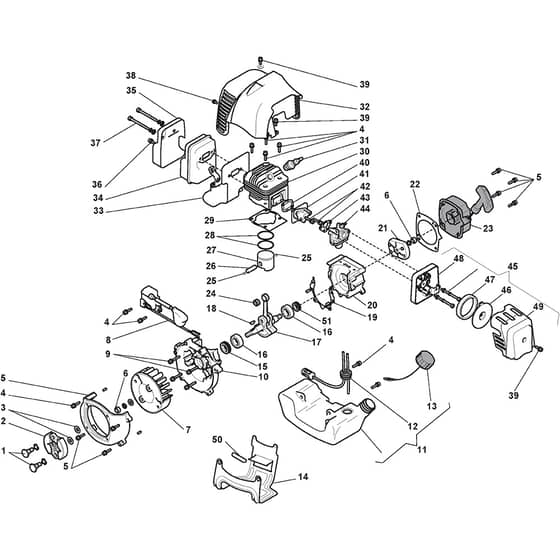

Castel Garden BS 45 D Parts Diagram

Product Name - BS 45 D

Model Year - 2012-2022

Model Type - TB 420 D

Art.N - 286321004/12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118804038/0 Available to backorder	Screw	£1.40 £1.17
2	MO118801181/0 Available to backorder	Clutch Ass.Y	£11.27 £9.39
3	MO2321230 Available to backorder	Washer	£1.40 £1.17
4	MO2135030 Available to backorder	Screw	£1.40 £1.17
5	MO118801214/0 Available to backorder	Transmission Support Case	£11.11 £9.26
6	MO2670120 Available to backorder	Nut	£1.40 £1.17
7	MO118801211/0 Available to backorder	Flywheel Ass.Y	£19.82 £16.52
8	MO118801209/0 Available to backorder	Electronic Coil	£30.97 £25.81
9	MO2135050 Available to backorder	Screw	£1.33 £1.11
10	MO118801217/0 Available to backorder	Crank Case	£19.85 £16.54
11	MO118801212/0 Available to backorder	Fuel Tank	£13.24 £11.03
12	MO118804005/0 In stock	Fuel Pipe Set	£3.10 £2.58
13	MO118801393/0 Available to backorder	Fuel Cap Assy	£1.97 £1.64
14	MO118801207/0 Available to backorder	Support	£9.58 £7.98
15	MO118801197/0 Available to backorder	Seal Ring	£1.33 £1.11
16	MO3112040 Available to backorder	Ball Bearing	£14.64 £12.20
17	MO118801213/0 Available to backorder	Crankshaft	£35.20 £29.33
18	MO123072002/0 Available to backorder	Flywheel Key	£1.33 £1.11
19	MO118801201/0 Available to backorder	Crankcase Gasket	£1.40 £1.17
20	MO118801218/0 Available to backorder	Crank Case	£13.51 £11.26
21	MO118801191/0 Available to backorder	Starter Cup Ass.Y	£4.22 £3.52
22	MO118801193/0 Available to backorder	Gasket	£1.82 £1.52
23	MO118801186/0 Available to backorder	Starter Assy	£18.86 £15.72
24	MO118801195/0 Available to backorder	Needle Bearing	£2.26 £1.88
25	MO118801196/0 Available to backorder	Washer. Piston Pin	£1.33 £1.11
26	MO118801199/0 Available to backorder	Piston Pin	£1.33 £1.11
27	MO118801216/0 Available to backorder	Piston	£8.74 £7.28
28	MO118801198/0 Available to backorder	Piston Ring	£2.26 £1.88
29	MO118801202/0 Available to backorder	Cylinder Gasket	£1.28 £1.07
30	MO118801215/0 Available to backorder	Cylinder	£45.04 £37.53
31	9494 In stock	Spark Plug	£3.72 £3.10
32	MO118801220/0 Available to backorder	Red Cylinder Cover	£12.38 £10.32
33	MO118801221/0 Available to backorder	Muffler Gasket	£5.21 £4.34
34	MO118801222/0 Available to backorder	Muffler	£35.20 £29.33
35	MO118801219/0 Available to backorder	Muffler Guard	£4.50 £3.75
36	MO2135180 Available to backorder	Screw	£1.40 £1.17
37	MO118801180/0 Available to backorder	Screw	£1.69 £1.41
38	MO123878020/0 Available to backorder	Screw	£1.33 £1.11
39	MO2135040 Available to backorder	Screw	£1.38 £1.15
40	MO118801204/0 Available to backorder	Intake Manifold Gasket	£1.40 £1.17
41	MO118801200/0 Available to backorder	Intake Manifold	£2.26 £1.88
51	MO118801188/0 Available to backorder	Oil Seal 12 X 22 X 7	£1.33 £1.11
