BS 26 - 2012 - 280720004/12 - Castel Garden Brushcutter Handle Transmission Diagram

Description

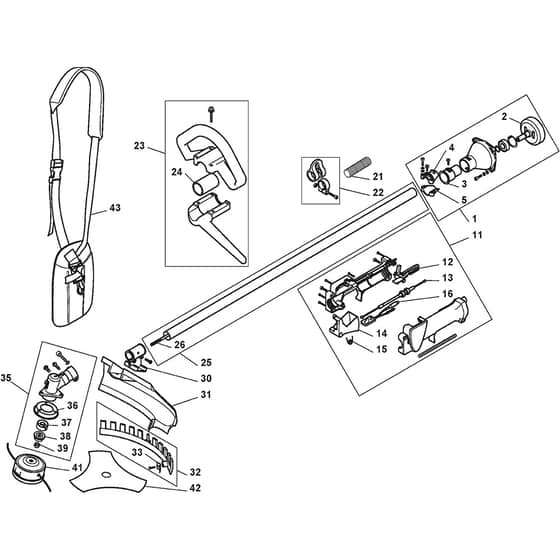

Castel Garden BS 26 Parts Diagram

Product Name - BS 26

Model Year - 2012

Model Type - TB 26

Art.N - 280720004/12

Engine Model -

	Part No.	Details
2	MO123050011/0 Available to backorder	Clutch Drum Assy	£15.34 £12.78
3	MO123275036/0 Available to backorder	Grommet	£2.69 £2.24
4	MO123720005/0 Available to backorder	Support	£4.78 £3.98
13	MO123066026/0 Available to backorder	Throttle Cable	£7.25 £6.04
16	MO183303002/0 Available to backorder	Switch	£4.93 £4.11
22	MO183780002/0 Available to backorder	Harness Support	£3.52 £2.93
23	MO183300025/0 Available to backorder	Front Handle	£14.35 £11.96
25	MO183869073/0 Available to backorder	Assy Transm. Tube+Flex	£42.23 £35.19
26	MO123020038/0 Available to backorder	Transmission Shaft	£17.74 £14.78
30	MO123784012/0 Available to backorder	Support	£8.00 £6.67
31	MO123465007/0 Available to backorder	Safety Cover	£7.39 £6.16
32	MO183600055/0 Available to backorder	Guard	£6.32 £5.27
33	MO123311013/0 Available to backorder	Line Cutter Blade	£3.25 £2.71
35	MO183820507/0 Available to backorder	Gear Case Assy	£88.69 £73.91
36	MO123670002/0 Available to backorder	Guard	£1.33 £1.11
37	MO123250002/0 Available to backorder	Upper Ring Nut	£5.65 £4.71
38	MO123250003/0 Available to backorder	Lower Ring Nut	£4.37 £3.64
39	MO123120015/0 Available to backorder	Nut	£1.63 £1.36
41	MO118801124/0 In stock	Nylon Head	£12.50 £10.42
42	MO1911-9262-01 In stock	3 Teeth Disc	£9.55 £7.96
43	MO123046005/0 Available to backorder	Harness	£22.51 £18.76
