Stihl BR600 - Engine - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4282 020 0203 Available to backorder	Engine (Contains 2 - 30)	£398.40 £332.00
2	ST4282 020 1203 Available to backorder	Cylinder with piston Ø 50 mm (Contains 3 - 12)	£304.08 £253.40
3	ST4282 025 1801 Available to backorder	Inlet valve	£12.98 £10.82
4	ST4282 025 1903 In stock	Exhaust valve	£24.64 £20.53
5	ST4282 025 1600 Available to backorder	Valve spring	£1.54 £1.28
6	ST4180 025 3000 In stock	Spring retainer plate	£1.32 £1.10
7	ST4180 038 1700 Available to backorder	Collar screw M5	£2.32 £1.93
8	ST4282 030 2005 Available to backorder	Piston Ø 50 mm (Contains 9 - 11)	£130.90 £109.08
9	ST4283 034 3006 In stock	Piston ring Ø 50x12 mm	£11.00 £9.17
11	ST9463 650 1200 In stock	Snap ring 12x1	£0.66 £0.55
12	ST9022 341 1370 In stock	Pan head screw IS M6x30	£1.22 £1.02
13	ST4282 030 0411 Available to backorder	Crankshaft	£324.00 £270.00
14	ST9639 003 1585 In stock	Oil seal 15x25x5	£6.50 £5.42

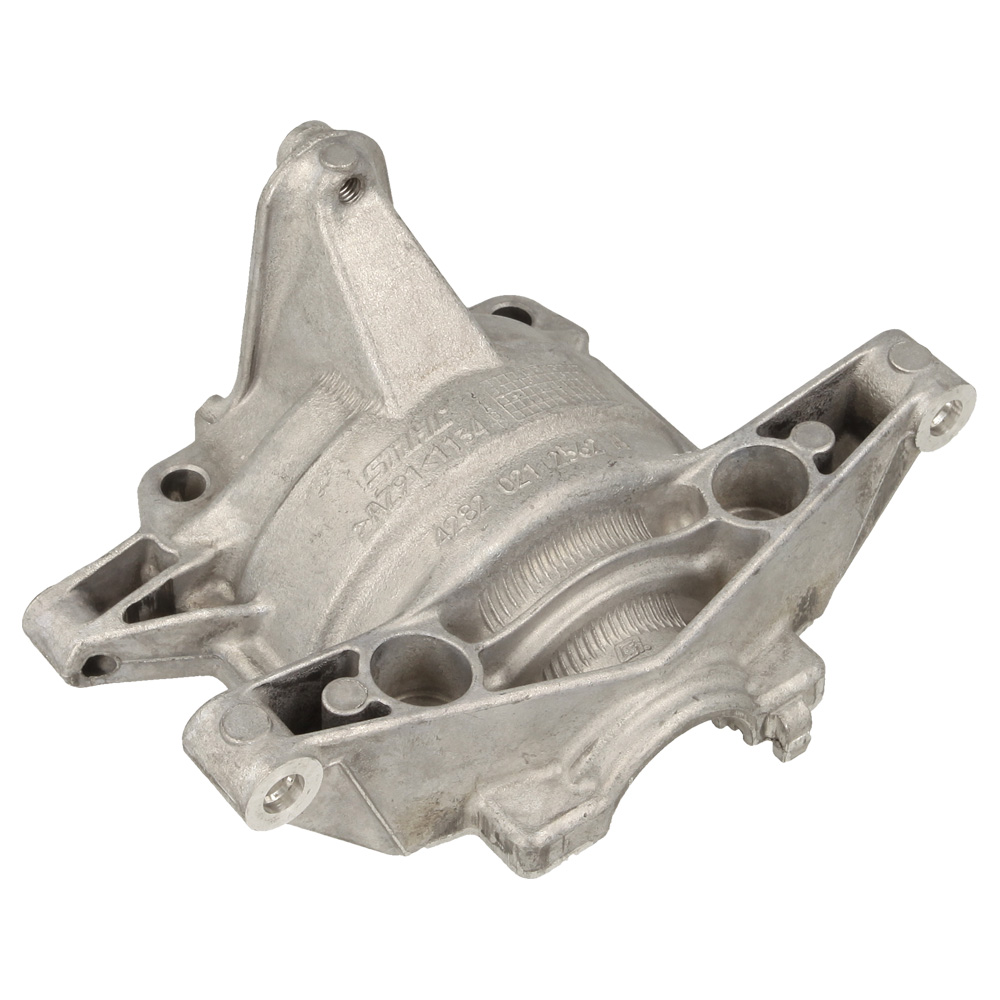

15	ST4282 021 2503 Available to backorder	Engine pan	£21.12 £17.60
17	ST4282 030 1801 In stock	Cam wheel	£9.02 £7.52
18	ST4180 038 0801 Available to backorder	Pin 5x28	£2.20 £1.83
19	ST4282 038 1900 Available to backorder	Cam follower	£9.58 £7.98
20	ST4282 038 1300 Available to backorder	Cover	£8.02 £6.68
21	ST9075 478 3016 Available to backorder	Pan head self-tapping screw IS-D4x16	£0.76 £0.63
22	ST4282 038 2600 In stock	Pushrod	£1.66 £1.38
23	ST4282 038 1000 Available to backorder	Rocker arm	£2.20 £1.83
24	ST4180 038 2000 Available to backorder	Sleeve	£2.86 £2.38
25	ST4180 038 2700 Available to backorder	Lock nut M5	£1.10 £0.92

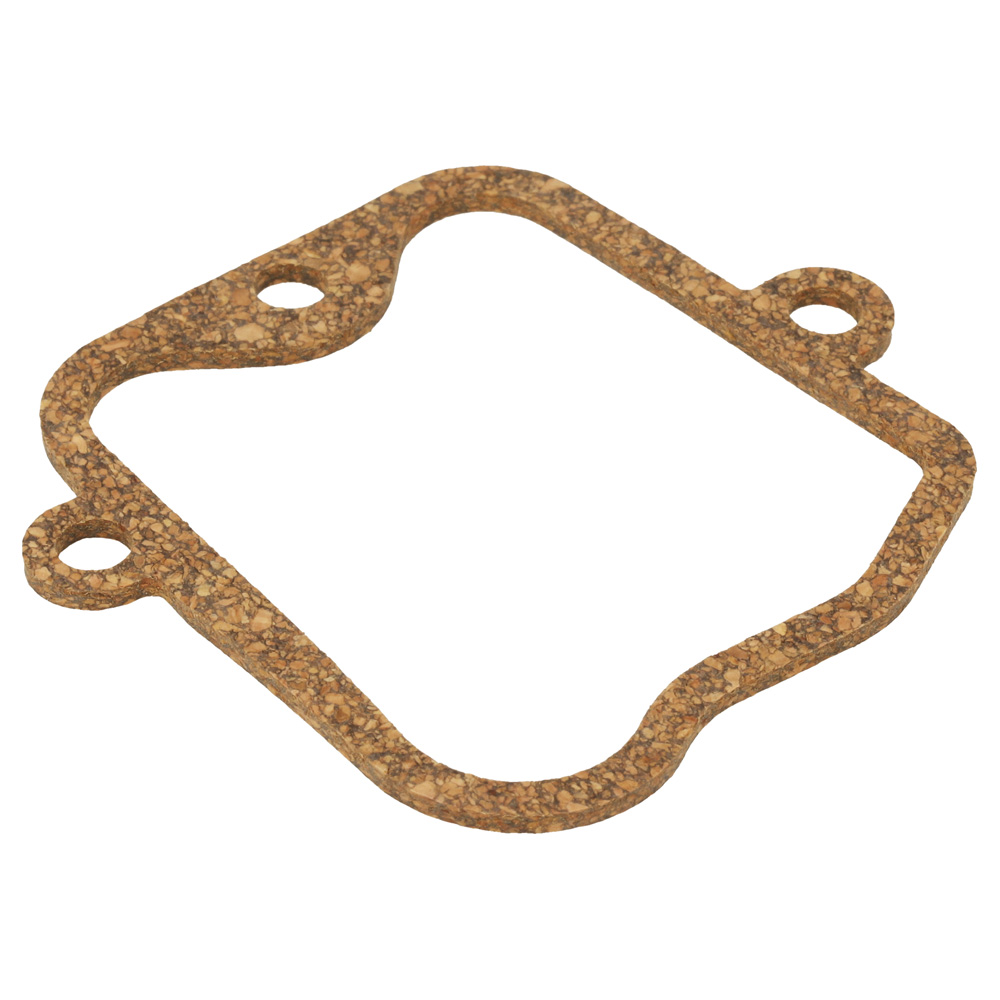

26	ST4282 029 0501 Available to backorder	Gasket	£1.10 £0.92
27	ST4282 025 1101 Available to backorder	Valve cover	£6.94 £5.78
28	ST9636 815 0270 Available to backorder	Sealing ring 5x9x1	£0.48 £0.40
29	ST9022 346 1070 In stock	Spline screw IS-M5x30	£1.00 £0.83
30	ST4282 149 0600 In stock	Muffler gasket	£2.32 £1.93
31	ST4283 129 0900 In stock	Gasket	£2.20 £1.83
32	ST4282 007 1600 Available to backorder	Set of gaskets (Contains 14 + 25 + 28 + 30 + 31 + 33)	£23.10 £19.25
33	ST4180 893 6400 In stock	Setting gauge	£0.34 £0.28
34	ST4282 007 1029 In stock	Valve clearance setting kit (Contains 26 + 28 + 33)	£2.64 £2.20
35	3945 In stock	Spark plug NGK CMR6H	£3.76 £3.13
