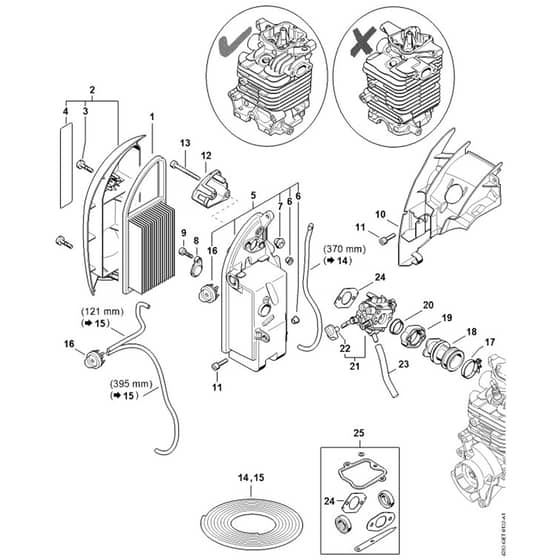

Stihl BR600 - Air Filter And Manifold - Parts Diagram

Name: Stihl BR600 - Air Filter And Manifold - Parts Diagram
SKU: br600_air_filter_and_manifold-group
Price: 0.79 GBP
Availability: InStock

Part No. br600_air_filter_and_manifold-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl BR600 - Air Filter And Manifold - Parts Diagram

Description

Stihl BR600 - Air Filter And Manifold - Parts Diagram

	Part No.	Details
1	ST4282 141 0300 In stock	Air filter	£14.63 £12.19

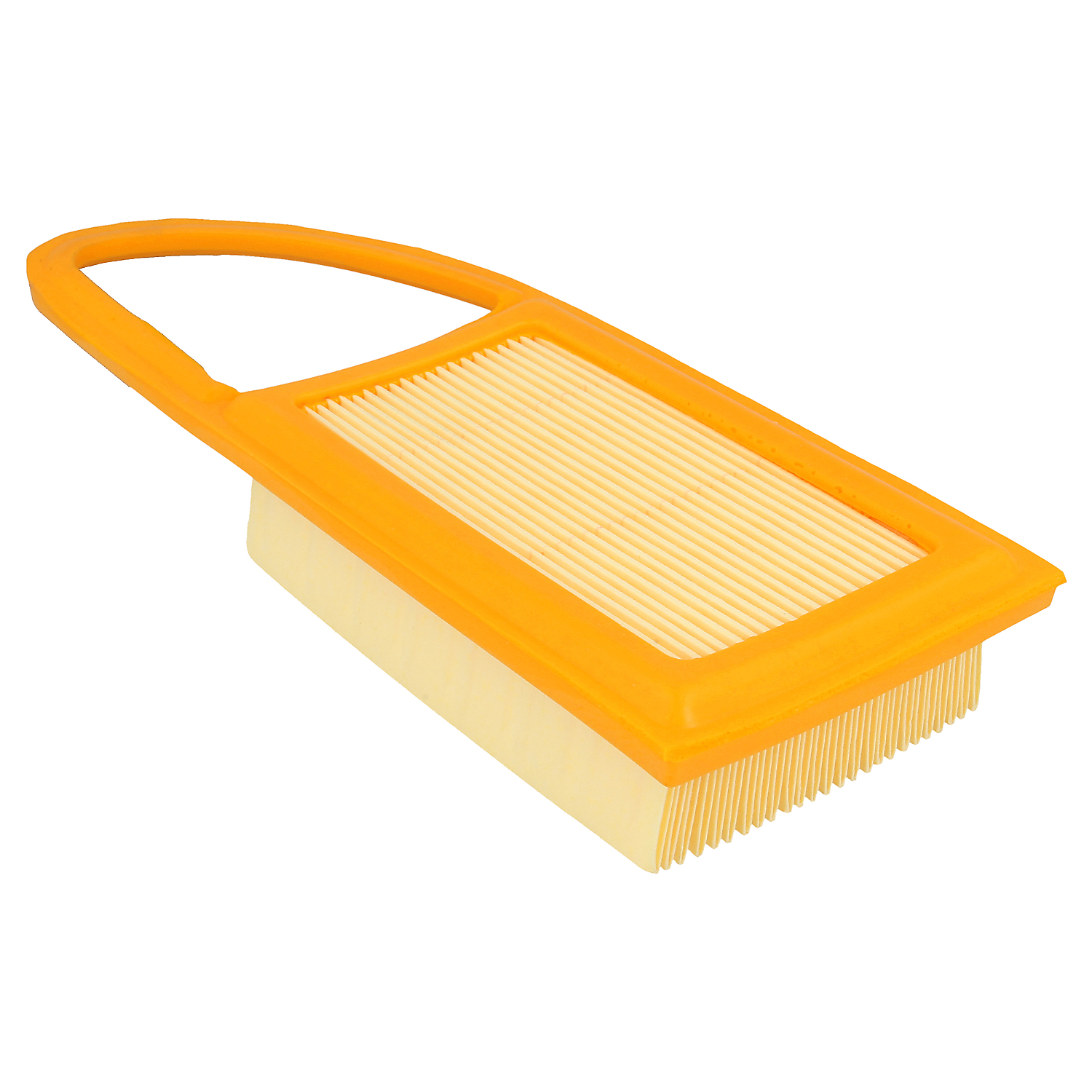

1	6190 In stock	Air Filter	£4.28 £3.57
2	ST4282 140 1002 Available to backorder	Filter cover (Contains 3 & 4)	£29.46 £24.55
3	ST9022 319 1027 In stock	Screw IS-M5x21	£0.95 £0.79
4	ST0000 967 7335 Available to backorder	Warning pictogram BR	£2.15 £1.79
5	ST4282 140 2851 Available to backorder	Filter housing (Contains 42557)	£39.71 £33.09
6	ST0000 963 0809 Available to backorder	Bushing	£1.26 £1.05
7	ST4134 123 7500 Available to backorder	Grommet	£1.60 £1.33
8	ST4282 141 2900 Available to backorder	Cover	£2.15 £1.79
9	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.95 £0.79

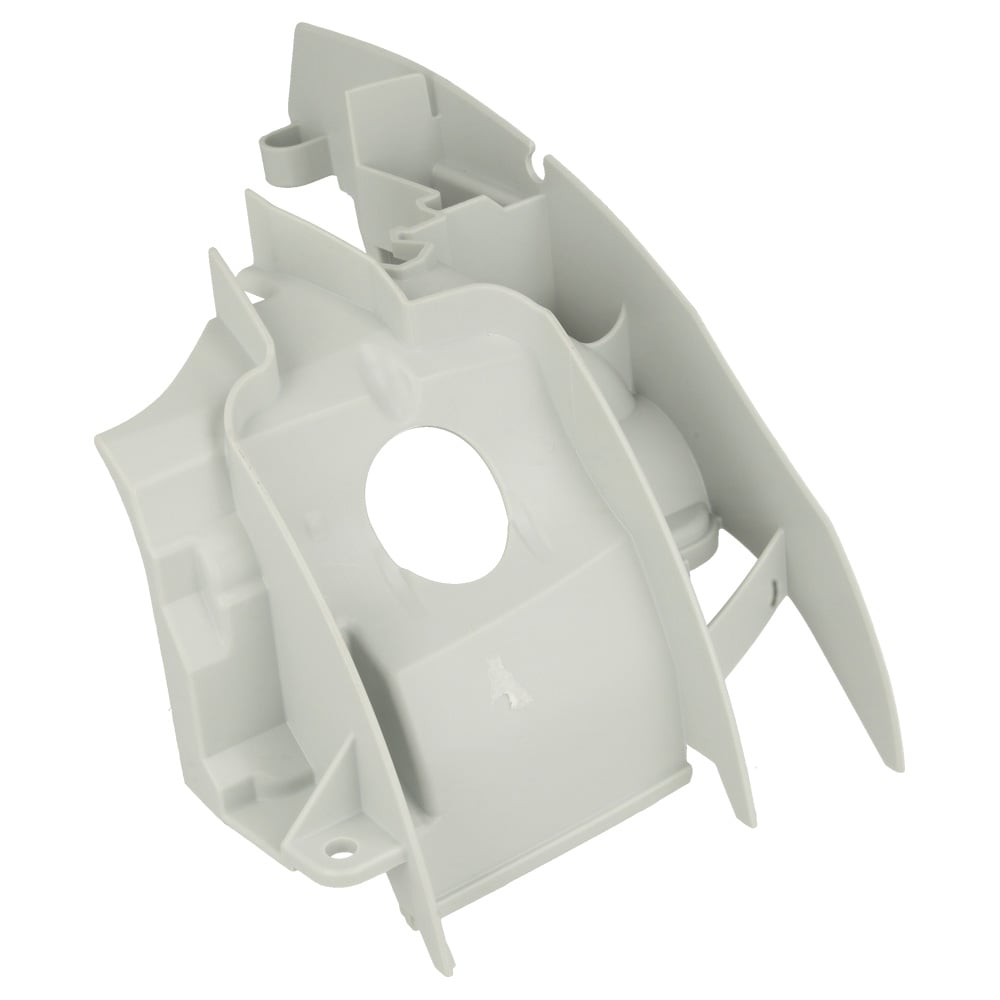

10	ST4282 087 3002 Available to backorder	Air guide shroud	£15.94 £13.28
11	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
12	ST4282 121 6900 Available to backorder	Baffle	£7.74 £6.45
13	ST9022 341 1220 In stock	Spline screw IS-M5x48	£1.43 £1.19
14	ST0000 937 5004 Available to backorder	Hose 3.1x5.7 mm x 1 m R5	£23.89 £19.91
15	ST0000 930 2802 In stock	Hose 2.2x5.4 mm x 1 m R1	£4.25 £3.54
16	ST0000 350 6202 In stock	Fuel pump	£12.64 £10.53

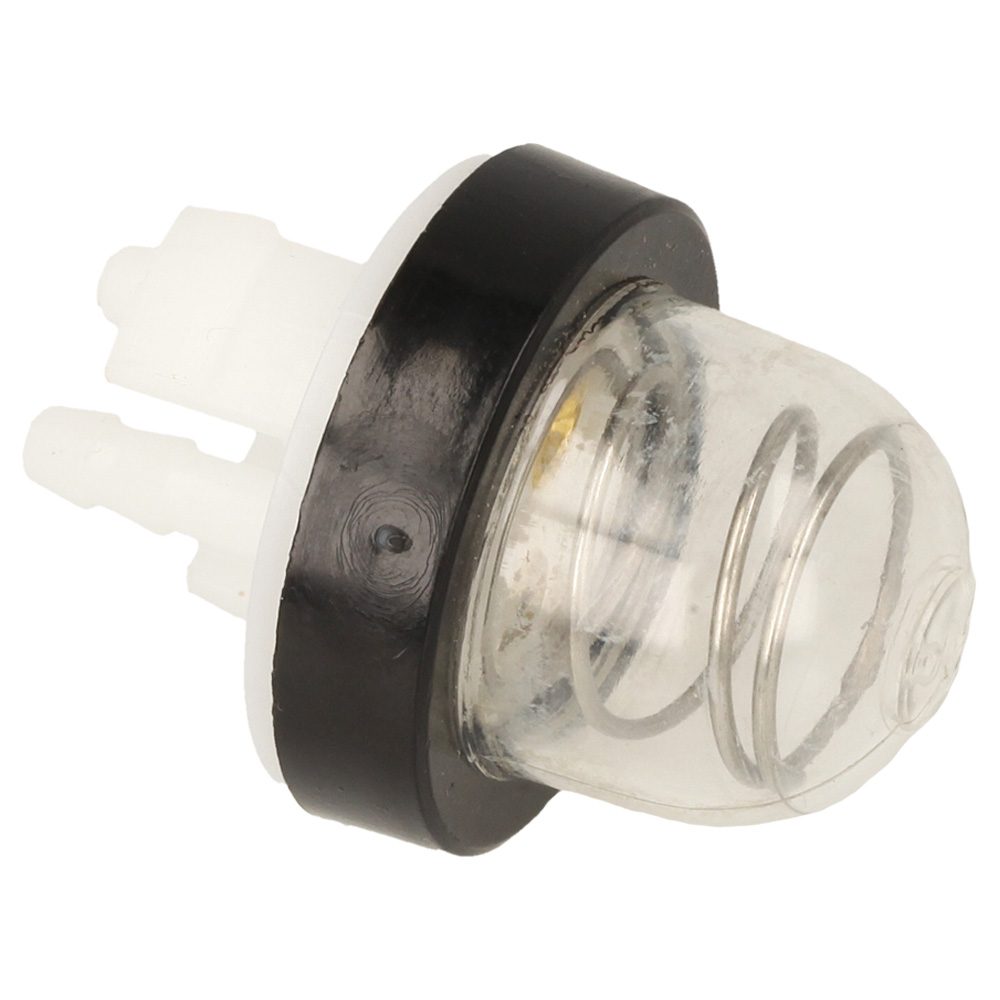

16	6328 In stock	Fuel Primer Pump	£3.78 £3.15
17	ST9771 021 2536 Available to backorder	Hose clip 30x5	£2.15 £1.79
18	ST4282 141 2200 Available to backorder	Manifold	£53.94 £44.95
19	ST4282 120 2200 Available to backorder	Flange	£35.40 £29.50
20	ST1113 141 1805 Available to backorder	Sleeve	£1.14 £0.95
21	ST4282 120 0613 Available to backorder	Carburetor 4282/13 (Contains 22)	£197.76 £164.80
22	STZ010 042 Z008 In stock	Choke lever	£6.60 £5.50
23	ST4282 141 8600 In stock	Impulse hose	£4.01 £3.34
24	ST4283 129 0900 In stock	Gasket	£2.36 £1.97
25	ST4282 007 1600 Available to backorder	Set of gaskets (Contains 24)	£23.89 £19.91
