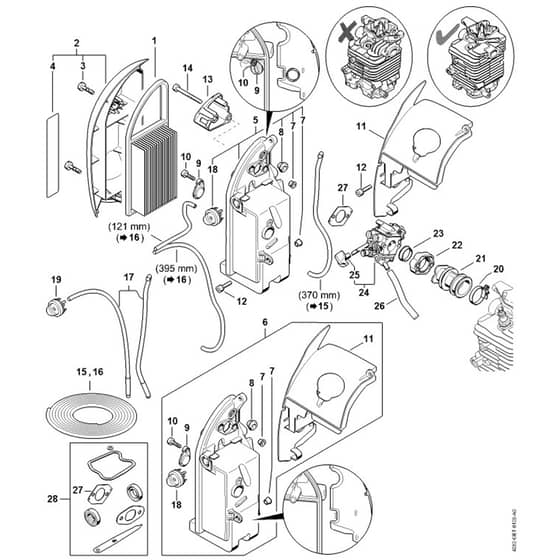

Stihl BR600 - Air Filter And Manifold 02 - Parts Diagram

Name: Stihl BR600 - Air Filter And Manifold 02 - Parts Diagram
SKU: br600_air_filter_and_manifold_02-group
Price: 0.79 GBP
Availability: InStock

Part No. br600_air_filter_and_manifold_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl BR600 - Air Filter And Manifold 02 - Parts Diagram

Description

Stihl BR600 - Air Filter And Manifold 02 - Parts Diagram

	Part No.	Details
1	ST4282 141 0300 In stock	Air filter	£14.63 £12.19
1	6190 In stock	Air Filter	£4.28 £3.57
2	ST4282 140 1003 In stock	Filter cover (Contains 3 & 4)	£29.81 £24.84
3	ST9022 319 1027 In stock	Screw IS-M5x21	£0.95 £0.79
4	ST0000 967 7335 Available to backorder	Warning pictogram BR	£2.15 £1.79
5	ST4282 140 2851 Available to backorder	Filter housing (Contains 43319)	£39.71 £33.09
6	ST4282 007 1021 Available to backorder	Filter housing kit (Contains 7 - 11 + 18)	£47.80 £39.83
7	ST0000 963 0809 Available to backorder	Bushing	£1.26 £1.05
8	ST4134 123 7500 Available to backorder	Grommet	£1.60 £1.33
9	ST4282 141 2900 Available to backorder	Cover	£2.15 £1.79
10	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.95 £0.79
11	ST4282 087 3001 Available to backorder	Air guide shroud	£11.28 £9.40
12	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
13	ST4282 121 6900 Available to backorder	Baffle	£7.74 £6.45
14	ST9022 341 1220 In stock	Spline screw IS-M5x48	£1.43 £1.19
15	ST0000 937 5004 Available to backorder	Hose 3.1x5.7 mm x 1 m R5	£23.89 £19.91
16	ST0000 930 2802 In stock	Hose 2.2x5.4 mm x 1 m R1	£4.25 £3.54
17	ST4282 007 1014 In stock	Fuel hose kit	£7.66 £6.38
18	ST0000 350 6202 In stock	Fuel pump	£12.64 £10.53
18	6328 In stock	Fuel Primer Pump	£3.78 £3.15
19	ST1130 350 6200 In stock	Fuel pump	£14.04 £11.70

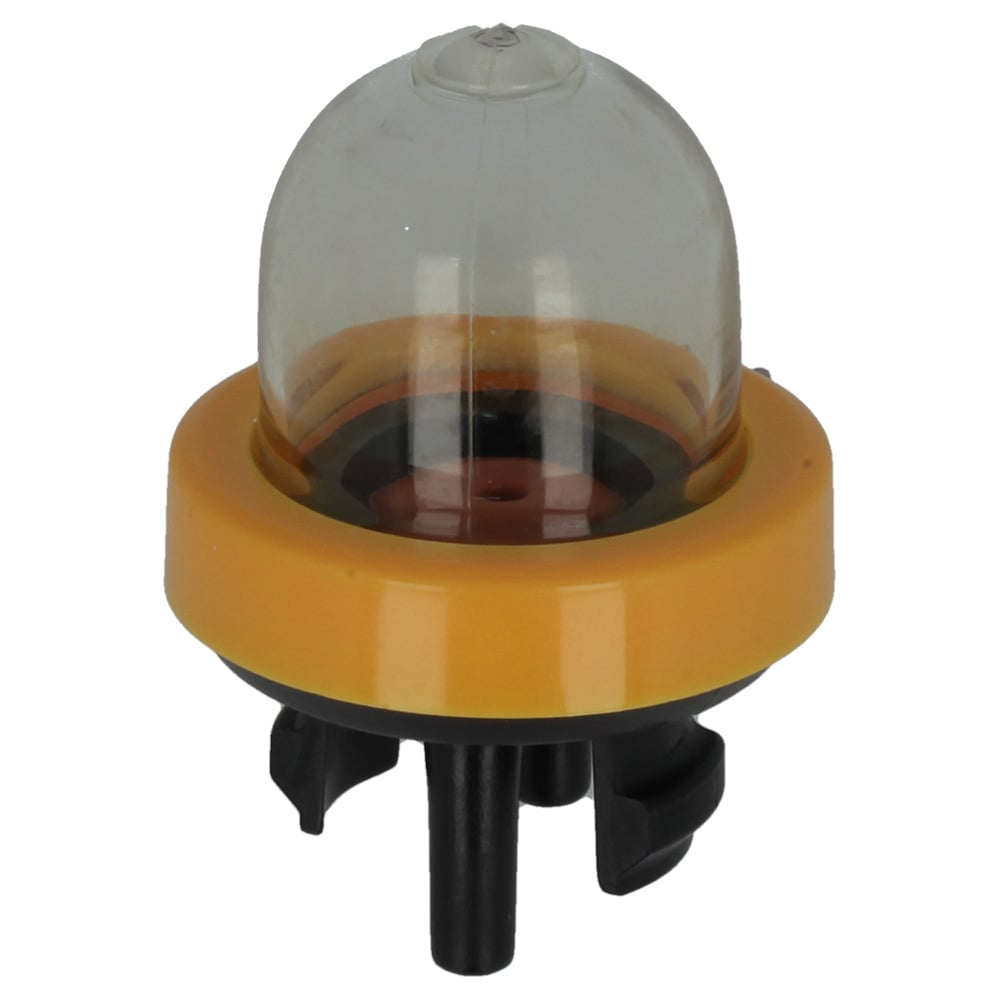

19	2411 In stock	Primer Bulb	£5.30 £4.42
20	ST9771 021 2536 Available to backorder	Hose clip 30x5	£2.15 £1.79
21	ST4282 141 2200 Available to backorder	Manifold	£53.94 £44.95
22	ST4282 120 2200 Available to backorder	Flange	£35.40 £29.50
23	ST1113 141 1805 Available to backorder	Sleeve	£1.14 £0.95
24	ST4282 120 0611 Available to backorder	Carburetor 4282/11 (Contains 25)	£198.00 £165.00
24	6507 In stock	Carburettor	£24.48 £20.40
25	ST4282 182 9500 In stock	Choke knob	£3.91 £3.26
26	ST4282 141 8600 In stock	Impulse hose	£4.01 £3.34
27	ST4283 129 0900 In stock	Gasket	£2.36 £1.97
28	ST4282 007 1010 In stock	Set of gaskets (Contains 27)	£14.63 £12.19
