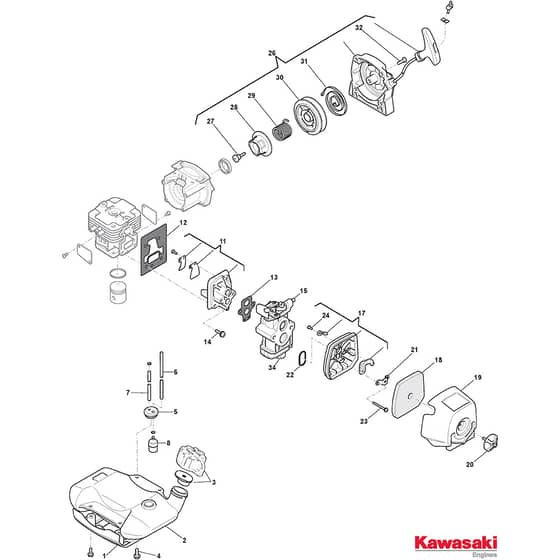

BKE 53 D - 2013 - 288421003/13 - Castel Garden Brushcutter Carburettor Starter Assy Diagram

Name: BKE 53 D - 2013 - 288421003/13 - Castel Garden Brushcutter Carburettor Starter Assy Diagram
SKU: bke_53_d_288421003_13_carburettor_starter_assy-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BKE 53 D - 2013 - 288421003/13 - Castel Garden Brushcutter Carburettor Starter Assy Diagram

Description

Castel Garden BKE 53 D Parts Diagram

Product Name - BKE 53 D

Model Year - 2013

Model Type - BKE 53 D

Art.N - 288421003/13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118801858/0 Available to backorder	Tank Support	£9.17 £7.64
2	MO118801893/0 Available to backorder	Fuel Tank	£77.42 £64.52
3	MO118801957/0 Available to backorder	Oil Cap From 01-9-2017	£37.85 £31.54
4	MO2135030 Available to backorder	Screw	£1.40 £1.17
5	MO118801925/0 Available to backorder	Grommet	£11.46 £9.55
6	MO118801949/0 Available to backorder	Fuel Line	£3.92 £3.27
7	MO118802000/0 Available to backorder	Tube	£12.37 £10.31
8	MO183520004/0 Available to backorder	Intake Filter	£18.74 £15.62
11	MO118801790/0 Available to backorder	Breather Valve Ass.Y	£29.71 £24.76
12	MO118801781/0 Available to backorder	Cylinder Gasket	£11.69 £9.74
13	MO118801972/0 Available to backorder	Carburetor Gasket	£2.96 £2.47
15	MO118801828/0 Available to backorder	Carburetor	£247.48 £206.23
17	MO118801770/0 Available to backorder	Air Cleaner Base	£18.25 £15.21

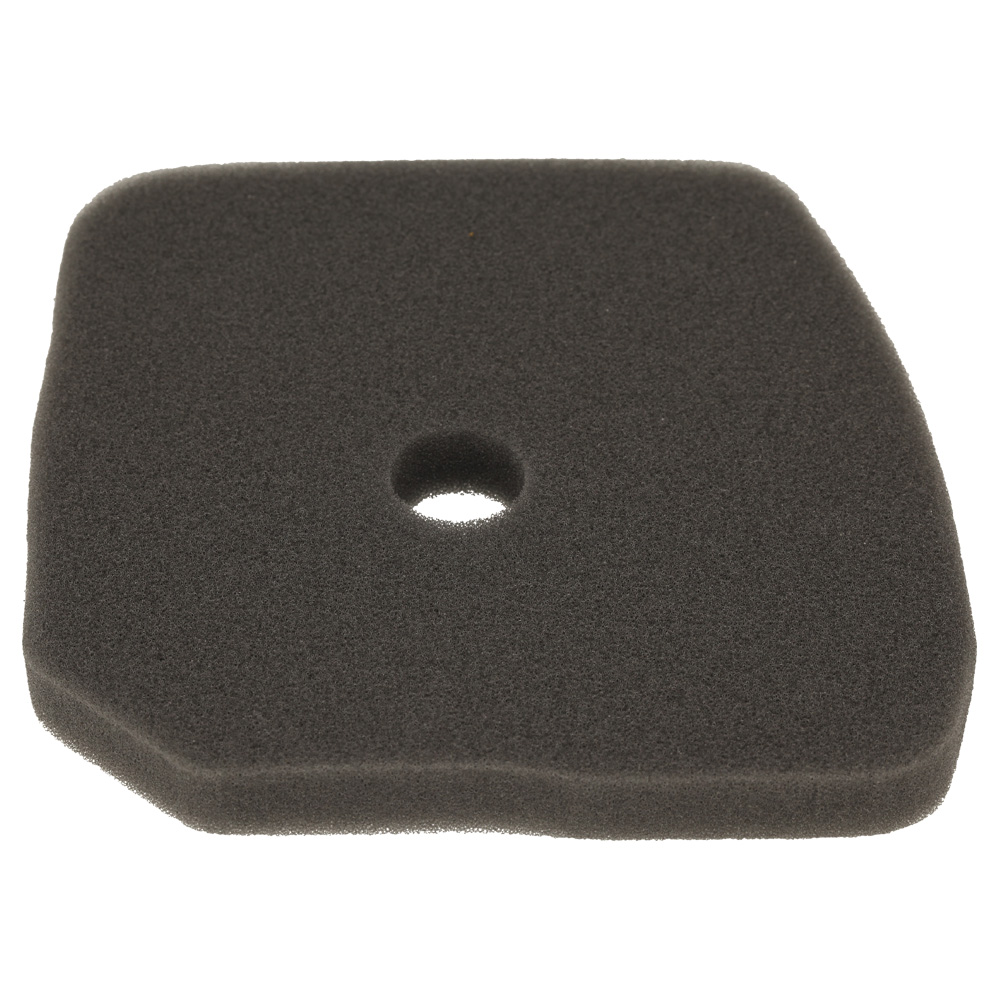

18	MO118801963/0 Available to backorder	Air Filter	£8.02 £6.68
19	MO118801786/0 Available to backorder	Grey Filter Cover	£16.16 £13.47
20	MO118801941/0 Available to backorder	Screw	£4.67 £3.89
21	MO118801835/0 Available to backorder	Baffle	£3.64 £3.03
22	MO118801924/0 Available to backorder	Or Ring	£1.82 £1.52
24	MO112727810/0 Available to backorder	Screw	£1.55 £1.29

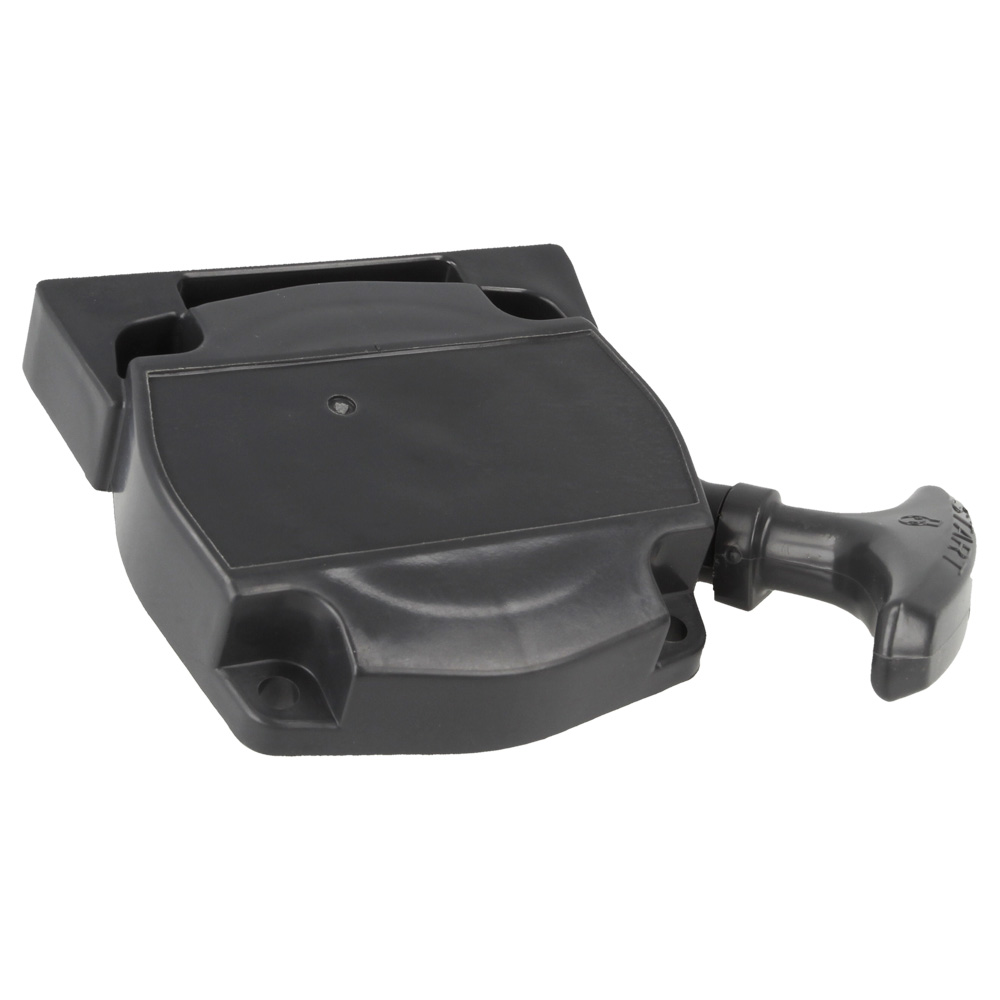

26	MO118801879/0 Available to backorder	Starter Assy Black	£91.25 £76.04
27	MO118801947/0 Available to backorder	Screw	£4.57 £3.81
28	MO118801866/0 Available to backorder	Cam	£31.12 £25.93
29	MO118801997/0 Available to backorder	Spring	£13.44 £11.20
30	MO118801903/0 Available to backorder	Starter Pulley	£15.13 £12.61
31	MO118801938/0 Available to backorder	Starter Spring	£29.56 £24.63
32	MO2132180 Available to backorder	Screw	£1.33 £1.11
34	MO118805313/0 Available to backorder	Primer Bulb [Kawasaki]	£8.45 £7.04
