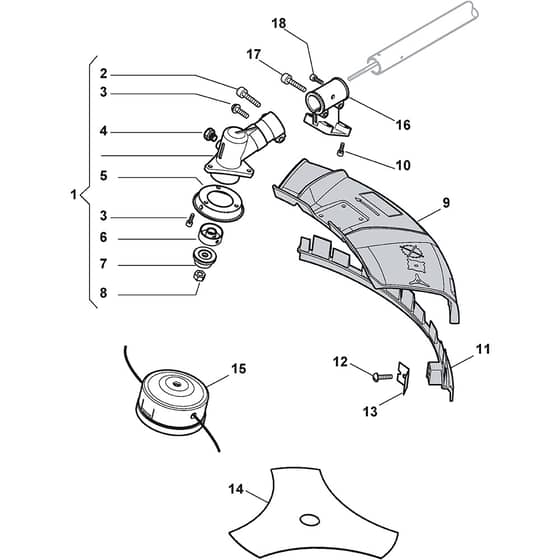

BKE 27 D - 2013 - 288121003/13 - Castel Garden Brushcutter Gear Case Diagram

Name: BKE 27 D - 2013 - 288121003/13 - Castel Garden Brushcutter Gear Case Diagram
SKU: bke_27_d_288121003_13_gear_case-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BKE 27 D - 2013 - 288121003/13 - Castel Garden Brushcutter Gear Case Diagram

Description

Castel Garden BKE 27 D Parts Diagram

Product Name - BKE 27 D

Model Year - 2013

Model Type - BKE 27 D

Art.N - 288121003/13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO183820507/0 Available to backorder	Gear Case Assy	£88.68 £73.90
2	MO2135030 Available to backorder	Screw	£1.40 £1.17
4	MO112727794/0 Available to backorder	Screw	£1.40 £1.17
5	MO123670002/0 Available to backorder	Guard	£1.33 £1.11
6	MO123250002/0 Available to backorder	Upper Ring Nut	£5.64 £4.70
7	MO123250003/0 Available to backorder	Lower Ring Nut	£4.37 £3.64
8	MO123120015/0 Available to backorder	Nut	£1.55 £1.29
9	MO118801341/0 Available to backorder	Safety Cover. Black	£19.57 £16.31
10	MO9943-0516-16 In stock	Screw	£1.22 £1.02
12	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
13	MO123311013/0 Available to backorder	Line Cutter Blade	£3.24 £2.70
14	MO1911-9262-01 Available to backorder	3 Teeth Disc	£9.30 £7.75
15	MO383820507/1 Available to backorder	2 Hedges Nylon Head	£45.83 £38.19
16	MO123784012/0 Available to backorder	Support	£8.02 £6.68
17	MO2135050 Available to backorder	Screw	£1.33 £1.11
18	MO2135180 Available to backorder	Torx Screw M5 X 12	£1.40 £1.17
