BJ 345 D - 2010-2011 - 285421003/10 - Castel Garden Brushcutter Engine Diagram

Description

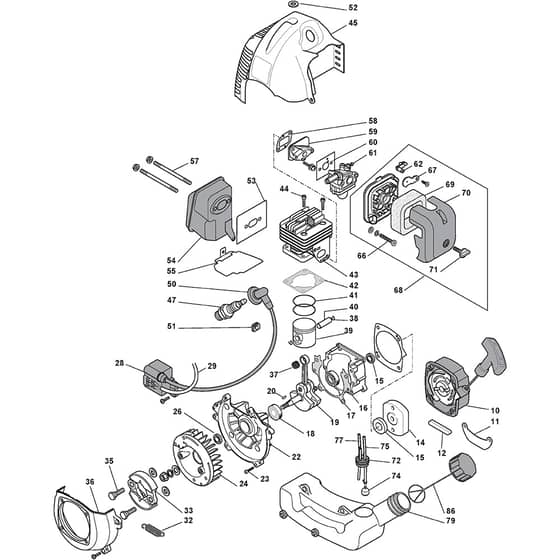

Castel Garden BJ 345 D Parts Diagram

Product Name - BJ 345 D

Model Year - 2010-2011

Model Type - BJ345D

Art.N - 285421003/10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO183058042/0 Available to backorder	Starter Assy	£36.59 £30.49
14	MO183082004/0 Available to backorder	Starter Cup Ass.Y	£6.05 £5.04
15	MO119035159/0 Available to backorder	Seal Ring	£1.33 £1.11
17	MO123280087/0 Available to backorder	Crankcase Gasket	£1.82 £1.52
18	MO3112240 Available to backorder	Ball Bearing	£10.14 £8.45
19	MO123020034/0 Available to backorder	Crankshaft	£61.93 £51.61
20	MO123072002/0 Available to backorder	Flywheel Key	£1.33 £1.11
24	MO123880019/0 Available to backorder	Flywheel	£17.64 £14.70
28	MO123044019/0 Available to backorder	Electronic Coil	£35.00 £29.17
32	MO123430583/0 Available to backorder	Spring	£11.69 £9.74
33	MO118804000/0 Available to backorder	Clutch Unit	£11.34 £9.45
35	MO123878058/0 Available to backorder	Screw	£1.82 £1.52
37	MO123235010/0 Available to backorder	Needle Bearing	£2.81 £2.34
38	MO123202010/0 Available to backorder	Circlip	£1.33 £1.11
39	MO123590014/0 Available to backorder	Piston	£7.03 £5.86
40	MO123760008/0 Available to backorder	Piston Pin	£1.69 £1.41
41	MO123204017/0 Available to backorder	Piston Ring	£2.26 £1.88
42	MO123280088/0 Available to backorder	Cylinder Gasket	£1.55 £1.29
43	MO123071025/0 Available to backorder	Cylinder	£46.46 £38.72
47	9494 In stock	Spark Plug	£3.72 £3.10
51	MO123275023/0 Available to backorder	Grommet	£1.40 £1.17
54	MO183740023/0 Available to backorder	Muffler	£14.35 £11.96
58	MO123280085/0 Available to backorder	Intake Manifold Gasket	£1.33 £1.11
59	MO123073520/0 Available to backorder	Intake Manifold	£7.46 £6.22
60	MO123280086/0 Available to backorder	Intake Carburator Gasket	£1.55 £1.29
61	MO123054037/0 Available to backorder	Carburetor	£43.64 £36.37
62	MO123315089/0 Available to backorder	Choke Lever	£1.69 £1.41
67	MO123190000/0 Available to backorder	Shutter	£1.33 £1.11
68	MO183220003/0 Available to backorder	Air Filter	£10.00 £8.33
69	MO123220011/0 In stock	Air Filter	£3.79 £3.16
71	MO123878056/0 Available to backorder	Screw	£1.33 £1.11
72	MO123275021/0 Available to backorder	Grommet	£1.33 £1.11
74	MO183520005/0 In stock	Intake Filter	£3.38 £2.82
75	MO123867032/0 Available to backorder	Tube	£1.69 £1.41
77	MO123867031/0 Available to backorder	Tube	£6.20 £5.17
79	MO123733007/0 Available to backorder	Fuel Tank Assy	£9.58 £7.98
86	MO183790009/0 Available to backorder	Fuel Cap	£2.81 £2.34
