BJ 345 - 2010-2011 - 285420003/10 - Castel Garden Brushcutter Engine Diagram

Description

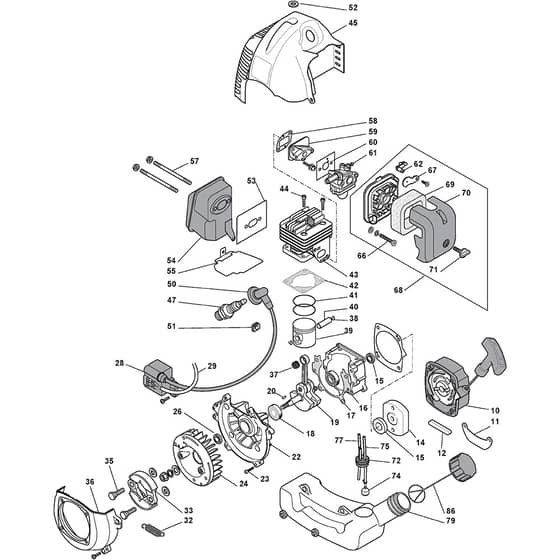

Castel Garden BJ 345 Parts Diagram

Product Name - BJ 345

Model Year - 2010-2011

Model Type - BJ345D

Art.N - 285420003/10

Engine Model -

	Part No.	Details
1	MO183058042/0 Available to backorder	Starter Assy	£36.59 £30.49
14	MO183082004/0 Available to backorder	Starter Cup Ass.Y	£6.05 £5.04
15	MO119035159/0 Available to backorder	Seal Ring	£1.33 £1.11
17	MO123280087/0 Available to backorder	Crankcase Gasket	£1.84 £1.53
18	MO3112240 Available to backorder	Ball Bearing	£10.14 £8.45
19	MO123020034/0 Available to backorder	Crankshaft	£61.94 £51.62
20	MO123072002/0 Available to backorder	Flywheel Key	£1.33 £1.11
24	MO123880019/0 Available to backorder	Flywheel	£17.65 £14.71
28	MO123044019/0 Available to backorder	Electronic Coil	£34.99 £29.16
32	MO123430583/0 Available to backorder	Spring	£11.70 £9.75
33	MO118804000/0 Available to backorder	Clutch Unit	£11.34 £9.45
35	MO123878058/0 Available to backorder	Screw	£1.84 £1.53
37	MO123235010/0 Available to backorder	Needle Bearing	£2.82 £2.35
38	MO123202010/0 Available to backorder	Circlip	£1.33 £1.11
39	MO123590014/0 Available to backorder	Piston	£7.02 £5.85
40	MO123760008/0 Available to backorder	Piston Pin	£1.70 £1.42
41	MO123204017/0 Available to backorder	Piston Ring	£2.24 £1.87
86	MO183790009/0 In stock	Fuel Cap	£2.82 £2.35
