BJ 335 D - 2009-2011 - 285321003/MO9 - Mountfield Brushcutter Engine Diagram

Name: BJ 335 D - 2009-2011 - 285321003/MO9 - Mountfield Brushcutter Engine Diagram
SKU: bj_335_d_285321003_mo9_engine-group
Price: 0.89 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BJ 335 D - 2009-2011 - 285321003/MO9 - Mountfield Brushcutter Engine Diagram

Description

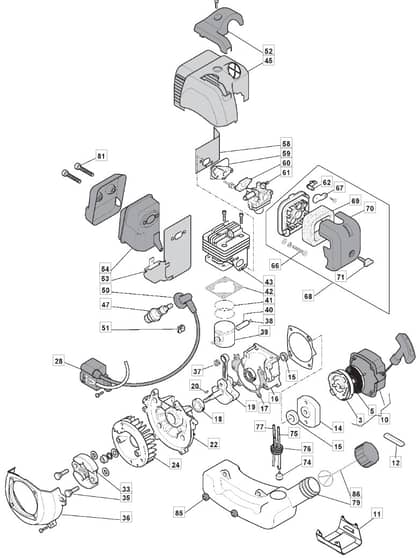

Mountfield BJ 335 D Parts Diagram

Model Year - 2009-2011

Model Type - BJ 335 D

Art.N - 285321003/MO9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO123604007/0 Available to backorder	Starter Pulley	£5.35 £4.46
5	MO123430585/0 Available to backorder	Spring	£6.47 £5.39
10	MO183058041/0 Available to backorder	Starter Assy	£18.59 £15.49
14	MO183082004/0 Available to backorder	Starter Cup Ass.Y	£6.05 £5.04
15	MO119035159/0 Available to backorder	Seal Ring	£1.33 £1.11
17	MO123280047/0 Available to backorder	Crankcase Gasket	£1.82 £1.52
18	MO3112240 Available to backorder	Ball Bearing	£10.14 £8.45
19	MO123020025/0 Available to backorder	Crankshaft	£45.04 £37.53
20	MO123072002/0 Available to backorder	Flywheel Key	£1.33 £1.11
22	MO123685027/0 Available to backorder	Crank Case	£19.99 £16.66
24	MO123880018/0 Available to backorder	Flywheel	£28.01 £23.34
28	MO123044018/0 Available to backorder	Electronic Coil	£24.92 £20.77
33	MO123430583/0 Available to backorder	Clutch Unit	£11.69 £9.74
35	MO123878058/0 Available to backorder	Screw	£1.82 £1.52
37	MO123235007/0 Available to backorder	Needle Bearing	£2.68 £2.23
38	MO123202009/0 Available to backorder	Circlip	£1.33 £1.11
39	MO123590008/0 Available to backorder	Piston	£9.28 £7.73
40	MO123760007/0 Available to backorder	Piston Pin	£1.40 £1.17
41	MO123204010/0 Available to backorder	Piston Ring	£2.53 £2.11
42	MO123280045/0 Available to backorder	Cylinder Gasket	£1.40 £1.17
43	MO123071024/0 Available to backorder	Cylinder	£39.42 £32.85
47	2688 In stock	Spark Plug	Was £1.44 £1.20 Special Price £1.07 £0.89
50	MO123053002/0 Available to backorder	Spark Plug Cover	£6.61 £5.51
51	MO123275023/0 Available to backorder	Grommet	£1.40 £1.17
52	MO123109552/0 Available to backorder	Cover. Spark Plug	£5.52 £4.60
53	MO123280043/0 Available to backorder	Muffler Gasket	£12.67 £10.56
54	MO183740022/0 Available to backorder	Muffler	£54.90 £45.75
58	MO2135030 Available to backorder	Intake Manifold Gasket	£1.40 £1.17
59	MO123073509/0 Available to backorder	Intake Manifold	£4.08 £3.40
60	MO123280039/0 Available to backorder	Intake Carburator Gasket	£1.33 £1.11
61	MO123054026/1 Available to backorder	Carburetor	£43.21 £36.01
62	MO123315089/0 Available to backorder	Choke Lever	£1.69 £1.41
67	MO123190000/0 Available to backorder	Shutter	£1.33 £1.11
68	MO183220003/0 Available to backorder	Air Filter	£10.00 £8.33
69	MO123220011/0 In stock	Air Filter	£3.79 £3.16
70	MO123090026/0 Available to backorder	Air Cleaner Cover	£4.37 £3.64
71	MO123878056/0 Available to backorder	Screw	£1.33 £1.11
74	MO183520005/0 In stock	Intake Filter	£3.38 £2.82
75	MO123867030/0 Available to backorder	Tube	£1.33 £1.11
76	MO123275021/0 Available to backorder	Grommet	£1.33 £1.11
77	MO123867031/0 Available to backorder	Tube	£6.20 £5.17
79	MO123733003/0 Available to backorder	Fuel Tank Assy	£9.58 £7.98
81	MO9950-0570-12 Available to backorder	Screw	£2.96 £2.47
85	MO123280060/0 Available to backorder	Rubber Gasket	£1.40 £1.17
86	MO183790009/0 Available to backorder	Fuel Cap	£2.81 £2.34
