BJ 335 D - 2009-2011 - 285321002/09 - Stiga Brushcutter Engine Diagram

Description

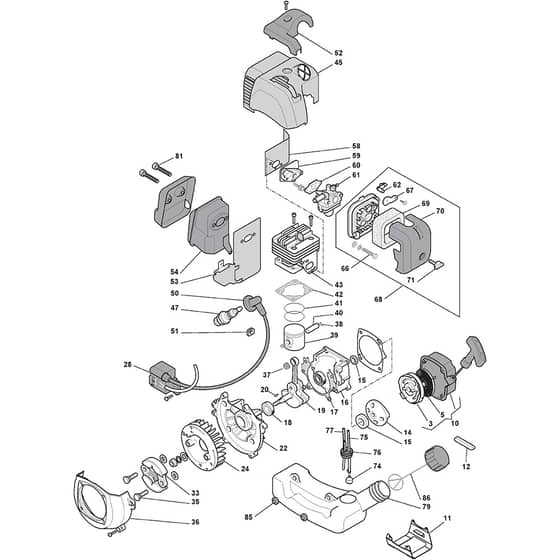

Stiga BJ 335 D Parts Diagram

Product Name - BJ 335 D

Model Year - 2009-2011

Model Type - BJ335D

Art.N - 285321002/09

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO123604007/0 Available to backorder	Starter Pulley	£5.35 £4.46
5	MO123430585/0 Available to backorder	Spring	£6.47 £5.39
10	MO183058032/0 Available to backorder	Starter Assy	£37.67 £31.39
15	MO119035159/0 Available to backorder	Seal Ring	£1.33 £1.11
17	MO123280047/0 Available to backorder	Crankcase Gasket	£1.82 £1.52
18	MO3112240 Available to backorder	Ball Bearing	£10.14 £8.45
19	MO123020025/0 Available to backorder	Crankshaft	£45.04 £37.53
20	MO123072002/0 Available to backorder	Flywheel Key	£1.33 £1.11
22	MO123685027/0 Available to backorder	Crank Case	£19.99 £16.66
24	MO123880009/0 Available to backorder	Flywheel	£33.67 £28.06
28	MO123044011/0 Available to backorder	Electronic Coil	£47.12 £39.27
32	MO123430583/0 Available to backorder	Clutch Unit	£11.69 £9.74
35	MO123878058/0 Available to backorder	Screw	£1.82 £1.52
37	MO123235007/0 Available to backorder	Needle Bearing	£2.68 £2.23
38	MO123202009/0 Available to backorder	Circlip	£1.33 £1.11
39	MO123590008/0 Available to backorder	Piston	£9.28 £7.73
40	MO123760007/0 Available to backorder	Piston Pin	£1.40 £1.17
41	MO123204010/0 Available to backorder	Piston Ring	£2.53 £2.11
42	MO123280045/0 Available to backorder	Cylinder Gasket	£1.40 £1.17
43	MO123071014/0 Available to backorder	Cylinder	£82.36 £68.63
47	9494 In stock	Spark Plug	£3.72 £3.10
86	MO183790009/0 Available to backorder	Fuel Cap	£2.81 £2.34
