Bio Master 2200 - 2018-2025 - 290000222/ST1 - Stiga Chippers and Shredders Chipper Diagram

Description

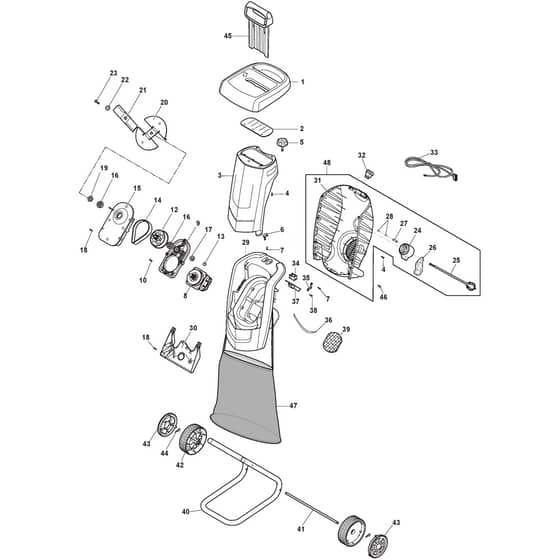

Stiga Bio Master 2200 Parts Diagram

Product Name - Bio Master 2200

Model Year - 2018-2025

Model Type - BIO MASTER 2200

Art.N - 290000222/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118802926/0 Available to backorder	Handle. Yellow	£25.46 £21.22
2	MO118802775/0 Available to backorder	Guard	£6.20 £5.17
3	MO118802923/0 Available to backorder	Upper Cover. Grey	£64.75 £53.96
5	MO118802747/0 Available to backorder	Knob	£5.76 £4.80
6	MO118802757/0 Available to backorder	Key	£2.68 £2.23
7	MO112728523/0 Available to backorder	Screw	£1.55 £1.29
10	MO118810099/0 Available to backorder	Screw	£2.53 £2.11
12	MO118802746/0 Available to backorder	Pulley	£32.38 £26.98
13	MO3353020 Available to backorder	Seeger Ring	£1.40 £1.17
14	MO118802774/0 Available to backorder	Belt Pulley	£17.78 £14.82
15	MO118802769/0 Available to backorder	Engine Cover	£29.56 £24.63
16	MO118802759/0 Available to backorder	Bearing	£15.78 £13.15
18	MO112728450/0 In stock	Screw	£1.55 £1.29
19	MO118802760/0 Available to backorder	Gasket	£1.55 £1.29
20	MO118802764/0 Available to backorder	Bottom Blade	£26.66 £22.22
21	MO118802762/1 Available to backorder	Blade	£23.44 £19.53
22	MO118802755/0 Available to backorder	Screw Gasket	£1.97 £1.64
23	MO112793301/0 In stock	Screw	£1.55 £1.29
24	MO118804844/0 Available to backorder	Power Outlet	£6.20 £5.17
25	MO118804845/0 Available to backorder	Power Cord Assy	£9.96 £8.30
26	MO118804847/0 Available to backorder	Power Hook	£1.48 £1.23
27	MO118804846/0 Available to backorder	Cable Holder	£1.48 £1.23
28	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
29	MO118802900/0 Available to backorder	Housing. Yellow	£84.70 £70.58
30	MO118802766/0 Available to backorder	Pressure Plate	£53.21 £44.34
32	MO118802750/0 Available to backorder	Switch	£13.09 £10.91
33	MO118802752/0 Available to backorder	Switch Wires	£5.92 £4.93
34	MO118802751/0 Available to backorder	Safety Switch	£23.23 £19.36

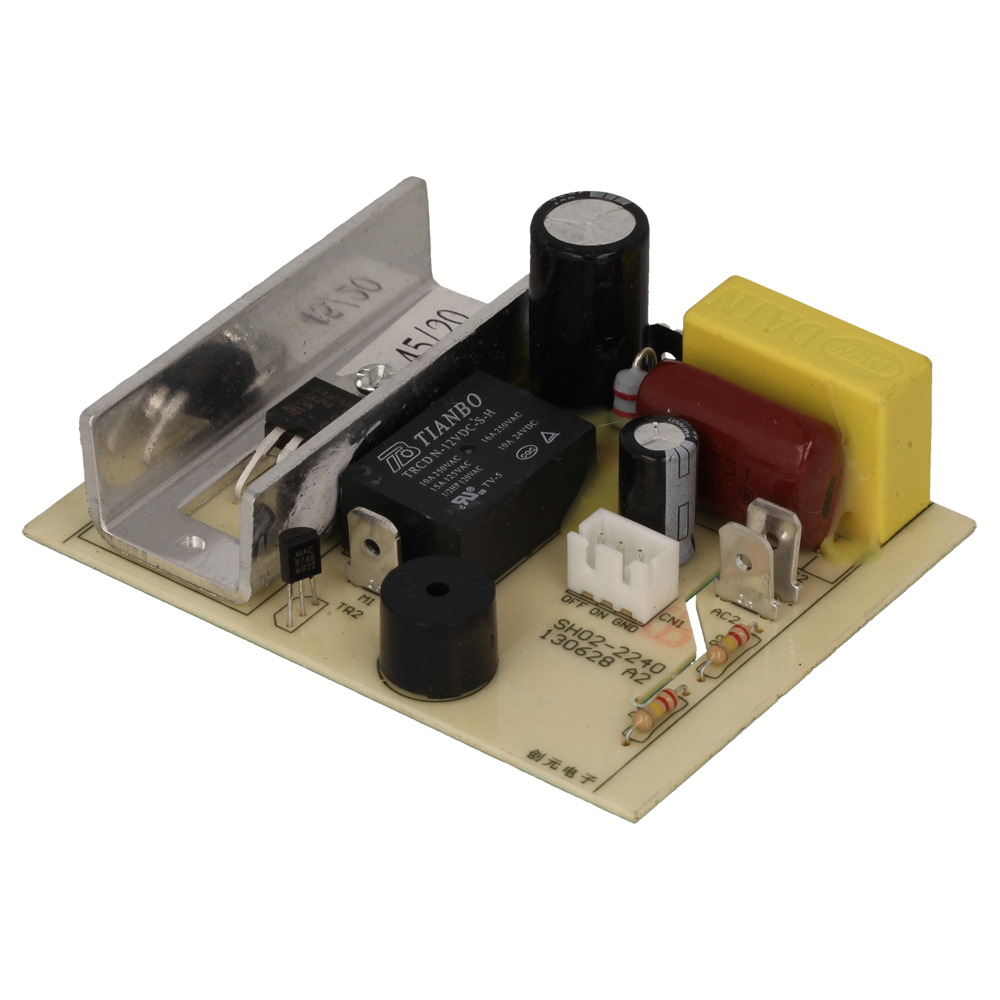

37	MO118802749/0 Available to backorder	Electronic Card	£66.16 £55.13
38	MO6981116 Available to backorder	Screw	£1.38 £1.15
39	MO118802754/0 Available to backorder	Filter	£1.69 £1.41
40	MO118802909/0 Available to backorder	Support. Wheel	£68.99 £57.49
41	MO118802756/0 Available to backorder	Wheel Axle	£11.82 £9.85
42	MO118802767/0 Available to backorder	Wheel	£26.64 £22.20
44	MO118802217/0 Available to backorder	Cotter Pin	£1.82 £1.52
45	MO118802773/0 Available to backorder	Prodder	£14.35 £11.96
46	MO112728519/0 Available to backorder	Screw	£1.40 £1.17
47	MO118805063/0 Available to backorder	Collecting Bag	£54.90 £45.75
48	MO118805158/0 Available to backorder	Grey Cover & Power Cord Assy	£71.08 £59.23
