Billy Goat BG1002SP - Self Propelled Litter Vacuum Chassis Diagram

Name: Billy Goat BG1002SP - Self Propelled Litter Vacuum Chassis Diagram
SKU: bg1002sp_self_propelled_litter_vacuum_chassis-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat BG1002SP - Self Propelled Litter Vacuum Chassis Diagram

Description

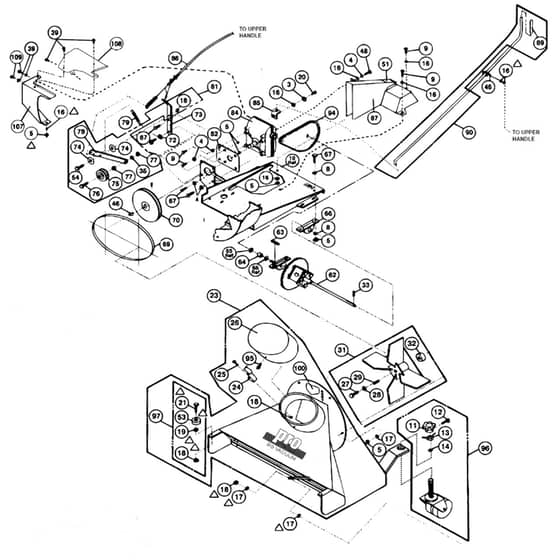

BG1002SP Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG800730-S Available to backorder	Bag	£324.42 £270.35
2	BG810139 Available to backorder	Elbow Ass’Y	£582.32 £485.27
4	BG8177011 Available to backorder	Washer Lock Spring 5/16 Med	£0.78 £0.65
5	BG8160002 Available to backorder	Nut Lock 5/16-18	£0.97 £0.81
8	BG8171003 Available to backorder	Washer Flat 5/16	£0.78 £0.65
9	BG8041026 Available to backorder	Screw Cap 5/16-18 X 3/4	£0.97 £0.81
11	BG850154 Available to backorder	Knob Hand	£9.80 £8.17
12	BG8059143 Available to backorder	Screw Machine #10 - 24 X 2	£0.97 £0.81
13	BG800227 Available to backorder	Nut Lock Caster	£23.82 £19.85
14	BG800109 Available to backorder	Washer 3/4 Plastic	£1.08 £0.90
16	BG8171002 Available to backorder	Washer Flat Cut 1//4 (5/16 X 3 /4 X 1/16)	£0.78 £0.65
17	BG8172008 Available to backorder	Washer 5/16 Sae	£0.78 £0.65
18	BG8160001 Available to backorder	Nut Lock 1/4-20	£0.97 £0.81
21	BG8041009 Available to backorder	Screw Cap 1/4 - 20 Nc X 1 3/4	£0.97 £0.81
23	BG800931 Available to backorder	Nozzle Ass’Y	£727.20 £606.00
25	BG8041004 Available to backorder	Screw Cap 1/4 - 20 X 3/4	£0.97 £0.81
26	BG800183 Available to backorder	Cap	£7.16 £5.97
27	BG5106654 Available to backorder	Screw Cap 7/16 - 20 X 1-1/4 Gr 5	£5.76 £4.80
28	BG8177013 Available to backorder	Washer Lock 7/16 Twisted Tooth	£0.78 £0.65
31	BG800090 Available to backorder	Impeller Assembly	£353.90 £294.92
33	BG850230 Available to backorder	Cotter Pin 1/8 X 1	£1.00 £0.83
34	BG8041048 Available to backorder	Screw Cap 3/8-16 X 3/4	£0.97 £0.81
35	BG8177012 Available to backorder	Washer Lock 3/8	£1.20 £1.00
37	BG400570 Available to backorder	Grip Handle	£6.74 £5.62
38	BG8181007 Available to backorder	Washer Lock 1/4 Ext	£0.78 £0.65
39	BG8122082 Available to backorder	Screw Sm 1/4 X 3/8 Hex	£1.61 £1.34
40	BG8041031 Available to backorder	Screw Cap 5/16-18 X 2	£0.97 £0.81
47	BG810134 Available to backorder	Handle Top Ass’Y	£131.32 £109.43
49	BG8041008 Available to backorder	Screw Cap 1/4-20 X 1 - 1/2	£1.20 £1.00
50	BG800178 Available to backorder	Bag Loop	£2.89 £2.41
52	BG900514-00 Available to backorder	Throttle Control Assy	£48.28 £40.23
54	BG8041006 Available to backorder	Screw Cap 1/4-20 X 1	£0.97 £0.81
62	BG800996 Available to backorder	Differential With Sprocket	£159.36 £132.80
63	BG9201084 Available to backorder	Key 3/16 Sq X 1 - 3/4 Lg	£2.40 £2.00
64	BG800421 Available to backorder	Spacer	£1.28 £1.07
65	BG8172015 Available to backorder	Washer 3/4 Sae	£0.78 £0.65
66	BG800557 Available to backorder	Be Aring Pillow Block	£35.11 £29.26
67	BG8041028 Available to backorder	Screw Cap 5/16-18 X 1	£0.97 £0.81
68	BG850238 Available to backorder	Washer 3/4 (0765 X 125 X 006)	£1.08 £0.90
69	BG800250 Available to backorder	Belt Drive	£27.24 £22.70
70	BG800251 Available to backorder	Pulley With Set Screw	£32.20 £26.83
74	BG8172019 Available to backorder	Washer Fender 1/4	£0.78 £0.65
75	BG5108777 Available to backorder	Pulle Y Idle R	£16.82 £14.02
76	BG800888 Available to backorder	Bo Lt Idle R	£9.02 £7.52
78	BG800261 Available to backorder	Bar Idler	£9.80 £8.17
79	BG800242 Available to backorder	Spring	£5.26 £4.38

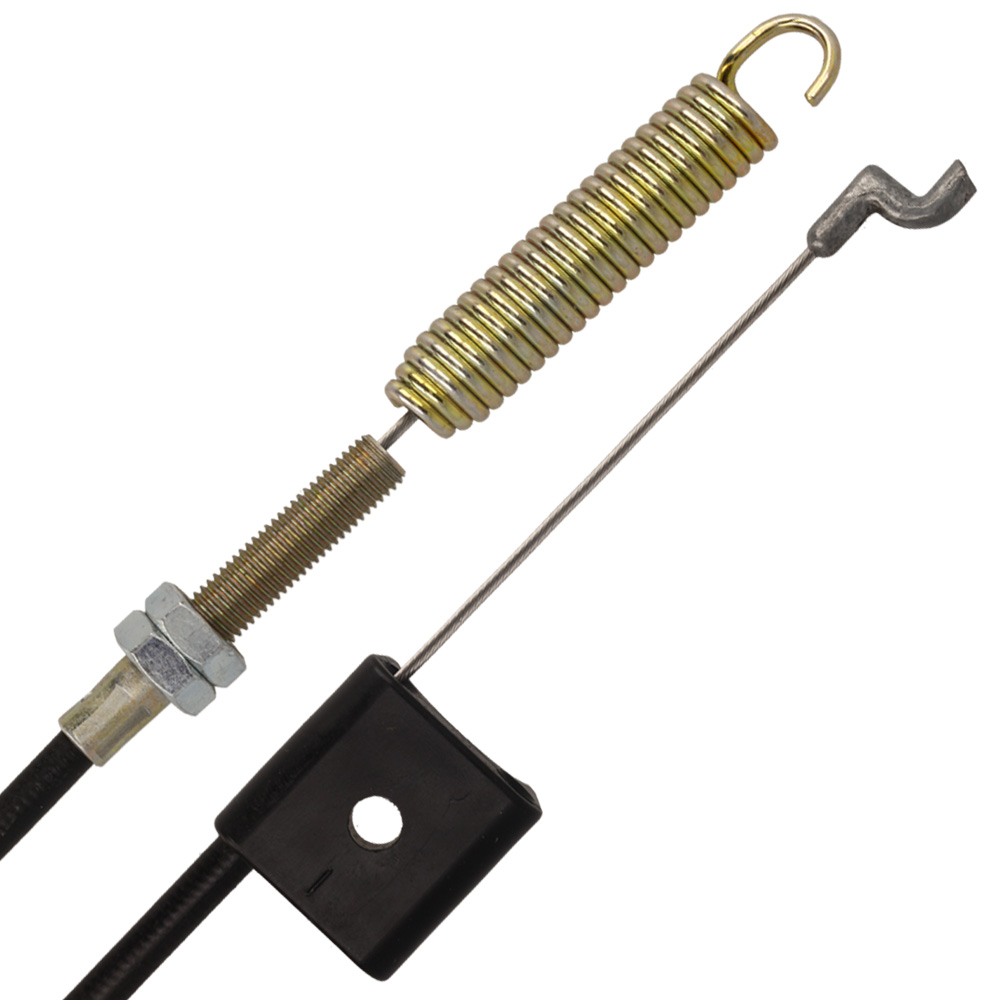

86	BG810160 Available to backorder	Cable Clutch Ass’Y Bg	£66.82 £55.68
87	BG811041 Available to backorder	Guard Chain W/Labels	£96.96 £80.80
88	BG900970 Available to backorder	Rod Bail Ass’Y	£76.88 £64.07
93	BG900407 Available to backorder	Ty Wrap	£0.78 £0.65
94	BG810156 Available to backorder	Chain Drive Bg	£38.28 £31.90
96	BG800682 Available to backorder	Caster Dual Assy	£145.82 £121.52
100	BG400424 Available to backorder	Label Danger Keeps Hands & Feet Away	£3.71 £3.09
102	BG810736 Available to backorder	Label Flying Material	£3.71 £3.09
103	BG100346 Available to backorder	Label Ear Eye Breathing	£3.71 £3.09
104	BG900327 Available to backorder	Label Warning Guards	£3.71 £3.09
109	BG900505 Available to backorder	Screw Self Tap 1/4 - 14 X 3/4	£1.61 £1.34
