Billy Goat BG1002 - Litter Vacuum Handles Diagram

Name: Billy Goat BG1002 - Litter Vacuum Handles Diagram
SKU: bg1002_litter_vacuum_handles-group
Price: 0.67 GBP
Availability: InStock

Part No. bg1002_litter_vacuum_handles-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat BG1002 - Litter Vacuum Handles Diagram

Description

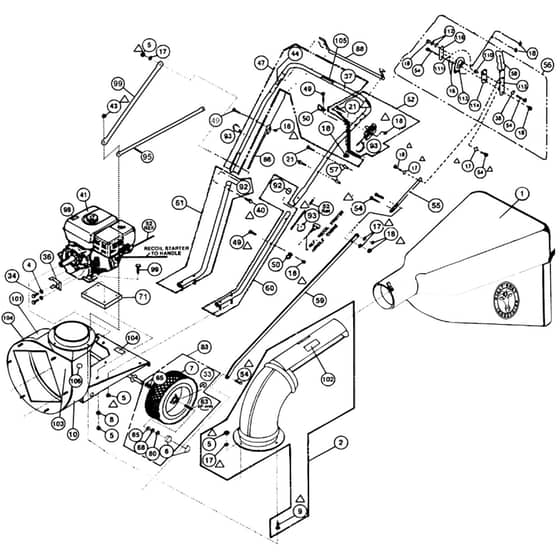

BG1002 Parts Diagram

	Part No.	Details
1	BG800730-S Available to backorder	Bag	£311.40 £259.50
2	BG810139 Available to backorder	Elbow Ass’Y	£517.56 £431.30
5	BG8160002 Available to backorder	Nut Lock 5/16-18	£0.97 £0.81
7	BG400295 Available to backorder	Wheel	£104.28 £86.90
8	BG8171003 Available to backorder	Washer Flat 5/16	£0.80 £0.67
9	BG8041026 Available to backorder	Screw Cap 5/16-18 X 3/4	£1.03 £0.86
11	BG850154 Available to backorder	Knob Hand	£10.14 £8.45
12	BG8059143 Available to backorder	Screw M Achine #10 - 24 X 2	£0.97 £0.81
13	BG800227 Available to backorder	Nut Lock Caster	£24.64 £20.53
14	BG800109 Available to backorder	W Asher 3/4 Pla Stic	£1.12 £0.93
16	BG8171002 Available to backorder	Washer Flat Cut 1//4 (5/16 X 3 /4 X 1/16)	£0.80 £0.67
17	BG8172008 Available to backorder	Washer 5/16 Sae	£0.80 £0.67
18	BG8160001 Available to backorder	Nut Lock 1/4-20	£0.97 £0.81
21	BG8041009 Available to backorder	Screw Cap 1/4 - 20 Nc X 1 3/4	£0.97 £0.81
23	BG800931 Available to backorder	Nozzle Ass’Y	£622.80 £519.00
25	BG8041004 Available to backorder	Screw Cap 1/4 - 20 X 3/4	£0.97 £0.81
26	BG800183 Available to backorder	Cap	£7.40 £6.17
27	BG5106654 Available to backorder	Screw Cap 7/16 - 20 X 1-1/4 Gr 5	£5.96 £4.97
28	BG8177013 Available to backorder	Washer Lock 7/16 Twisted Tooth	£0.80 £0.67
31	BG800988 Available to backorder	Impeller Assembly	£270.96 £225.80
33	BG850230 Available to backorder	Co Tte R P In 1/8 X 1	£1.03 £0.86
37	BG400570 Available to backorder	Grip Handle	£6.74 £5.62
38	BG8181007 Available to backorder	Washer Lock 1/4 Ext	£0.80 £0.67
39	BG8122082 Available to backorder	Screw Sm 1/4 X 3/8 Hex	£1.39 £1.16
40	BG8041032 Available to backorder	Screw Cap 5/16-18 X 2	£0.97 £0.81
47	BG810134 Available to backorder	Handle Top Assy	£131.28 £109.40
49	BG8041008 Available to backorder	Screw Cap 1/4-20 X 1 - 1/2	£1.03 £0.86
50	BG800178 Available to backorder	Bag Loop	£2.89 £2.41
52	BG900514-00 Available to backorder	Throttle Control Assy	£45.97 £38.31
54	BG8041006 Available to backorder	Screw Cap 1/4-20 X 1	£0.97 £0.81
65	BG8172015 Available to backorder	Washer 3/4 Sae	£1.03 £0.86
83	BG800137-S Available to backorder	Wheel Ass’Y Bgsp	£91.56 £76.30
93	BG900407 Available to backorder	Ty Wrap	£0.80 £0.67
96	BG800682 Available to backorder	Caster Dual Assy	£145.80 £121.50
100	BG400424 Available to backorder	Label Danger Keeps Hands & Feet Away	£3.71 £3.09
102	BG810736 Available to backorder	Label Flying Material	£3.71 £3.09
103	BG100346 Available to backorder	Label Ear Eye Breathing	£3.71 £3.09
