Belle WPX 3-30 - Main Assembly

Description

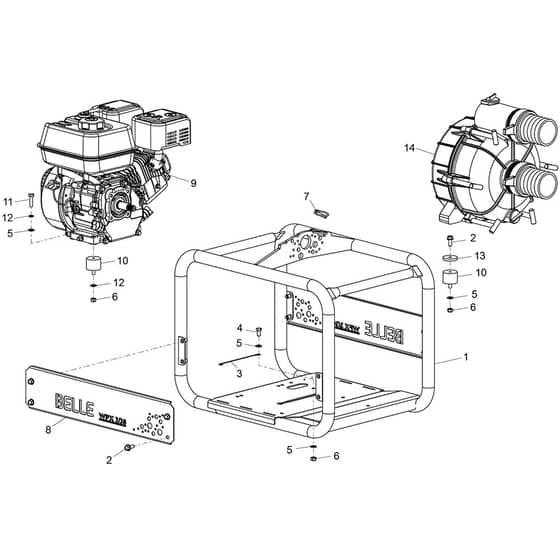

Belle WPX 3-30 - Main Assembly - Parts Diagram

	Part No.	Details
1	BE996/00400SP Available to backorder	[1] - Gpx2700/3400 Frame Assy	£270.36 £225.30
2	BE7/8037 Available to backorder	[2] - Screw	£0.48 £0.40
3	BE914/25303 Available to backorder	[3] - Cable Retaining	£22.08 £18.40
4	BE7/8008 Available to backorder	[4] - Screw	£0.48 £0.40
5	BE4/8006 Available to backorder	[5] - Washer M8	£0.48 £0.40
6	BE8/8008 Available to backorder	[6] - Nut	£0.48 £0.40
7	3956 In stock	[7] - Linch Pin Kit x 4	£0.48 £0.40
8	BEWPX/99901S Available to backorder	[8] - Pressing Wpx Side Guard Orange	£24.24 £20.20
10	BE21/0157 Available to backorder	[10] - Mount Anti Vibration	£7.24 £6.03
11	BE7/8009 Available to backorder	[11] - Screw	£0.48 £0.40
12	BE4/8003 Available to backorder	[12] - Washer M8	£0.71 £0.59
13	BE4/8023 Available to backorder	[13] - Washer	£2.88 £2.40
