Belle TDX 650 Twin Drum Roller - Yanmar L100N Engine Assembly

Name: Belle TDX 650 Twin Drum Roller - Yanmar L100N Engine Assembly
SKU: TDX650TwinDrumRollerYanmarL100NEngine-group
Price: 0.4 GBP
Availability: InStock

Part No. TDX650TwinDrumRollerYanmarL100NEngine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle TDX 650 Twin Drum Roller - Yanmar L100N Engine Assembly

Description

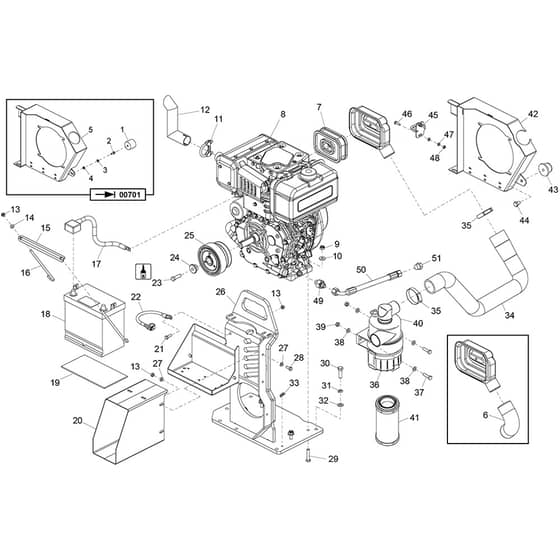

Belle TDX 650 Twin Drum Roller - Yanmar L100N Engine Assembly - Parts Diagram

	Part No.	Details
1	BE7/20003 Available to backorder	[1] - Rubber Socket Up To 00701	£2.88 £2.40
3	BE05.3.066 Available to backorder	[3] - Washer Up To 00701 M6	£0.77 £0.64
4	BE8/6007 Available to backorder	[4] - Nut Up To 00701	£0.48 £0.40
6	BE22/0048 Available to backorder	[6] - Air Intake Pipe 90 Deg Elbow Up To 00858	£46.46 £38.72
7	BE21/0349 Available to backorder	[7] - Air Filter L100	£135.84 £113.20
9	BE8/10006 Available to backorder	[9] - Nut	£0.48 £0.40
10	BE4/1010 Available to backorder	[10] - Washer	£6.00 £5.00
11	BE23/00603 Available to backorder	[11] - �45 Exhaust Clamp U-Shaped	£5.09 £4.24
12	BE23/00604 Available to backorder	[12] - Exhaust Yanmar L100	£82.80 £69.00
13	BE8/8002 Available to backorder	[13] - Nut	£1.60 £1.33
14	BE4/8001 Available to backorder	[14] - Washer Now Use - 4/8006	£0.48 £0.40
15	BE981/99942 Available to backorder	[15] - Pressing Battery Clamp	£12.66 £10.55
16	BE9/8030 Available to backorder	[16] - Bolt	£5.57 £4.64
17	BE71/0269 Available to backorder	[17] - Cable Battery Positive	£66.24 £55.20
18	BE70/0270 Available to backorder	[18] - Roller Battery Ea457 12V	£377.40 £314.50
19	BE981/99951 Available to backorder	[19] - Battery Rubber Mat	£10.22 £8.52
21	BE7/8012 Available to backorder	[21] - Screw	£0.48 £0.40
22	BE71/0270 Available to backorder	[22] - Cable Battery Negative	£53.54 £44.62
23	BE71.0.057 Available to backorder	[23] - Screw	£117.24 £97.70
24	BE981/99946 Available to backorder	[24] - Boss Clutch Retainer	£21.08 £17.57
25	BE21/0341 Available to backorder	[25] - Concentric Clutch	£284.28 £236.90
27	BE4/8006 Available to backorder	[27] - Washer M8	£0.48 £0.40
28	BE7/8037 Available to backorder	[28] - Screw	£0.48 £0.40
29	BE9/10007 Available to backorder	[29] - Bolt	£0.62 £0.52
30	BE7/12013 Available to backorder	[30] - Screw	£0.66 £0.55
31	BE4/1201 Available to backorder	[31] - Washer M12	£0.48 £0.40
32	BE4/1204 Available to backorder	[32] - Washer M12	£0.48 £0.40
33	BE981/99969 Available to backorder	[33] - Pressing Cable Clamp Washer	£8.89 £7.41
34	BE21/0369 Available to backorder	[34] - Hose Yanmar Pre Cleaner 650A From 00859	£105.72 £88.10
35	BE3/7043 Available to backorder	[35] - Clip Jubilee 45-60mm From 00859	£11.60 £9.67
51	BE6/0247 Available to backorder	[51] - 3/8" Bsp Male Plug	£3.89 £3.24
