Belle TDX 650 Twin Drum Roller - Controls (From 01435)

Name: Belle TDX 650 Twin Drum Roller - Controls (From 01435)
SKU: TDX650TwinDrumRollerControlsFrom01435-group
Price: 0.4 GBP
Availability: InStock

Part No. TDX650TwinDrumRollerControlsFrom01435-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle TDX 650 Twin Drum Roller - Controls (From 01435)

Description

Belle TDX 650 Twin Drum Roller - Controls (From 01435) - Parts Diagram

	Part No.	Details
1	BE981/09200GR Available to backorder	[1] - Control Unit Surnd Anthr- Grey Grey	£267.96 £223.30
1	BE981/09200W Available to backorder	[1] - Control Unit Surround White White	£267.84 £223.20
2	BE981/99958 Available to backorder	[2] - Thro' Bar Control Levers	£21.35 £17.79
3	BE981/09500 Available to backorder	[3] - Wa Control Lever (Screw) Now Use 981/09500Sp	£71.04 £59.20
4	BE981/03212 Available to backorder	[4] - Nylon Washer Spacer	£8.52 £7.10
5	BE981/03211 Available to backorder	[5] - Boss Locking Collar	£11.23 £9.36

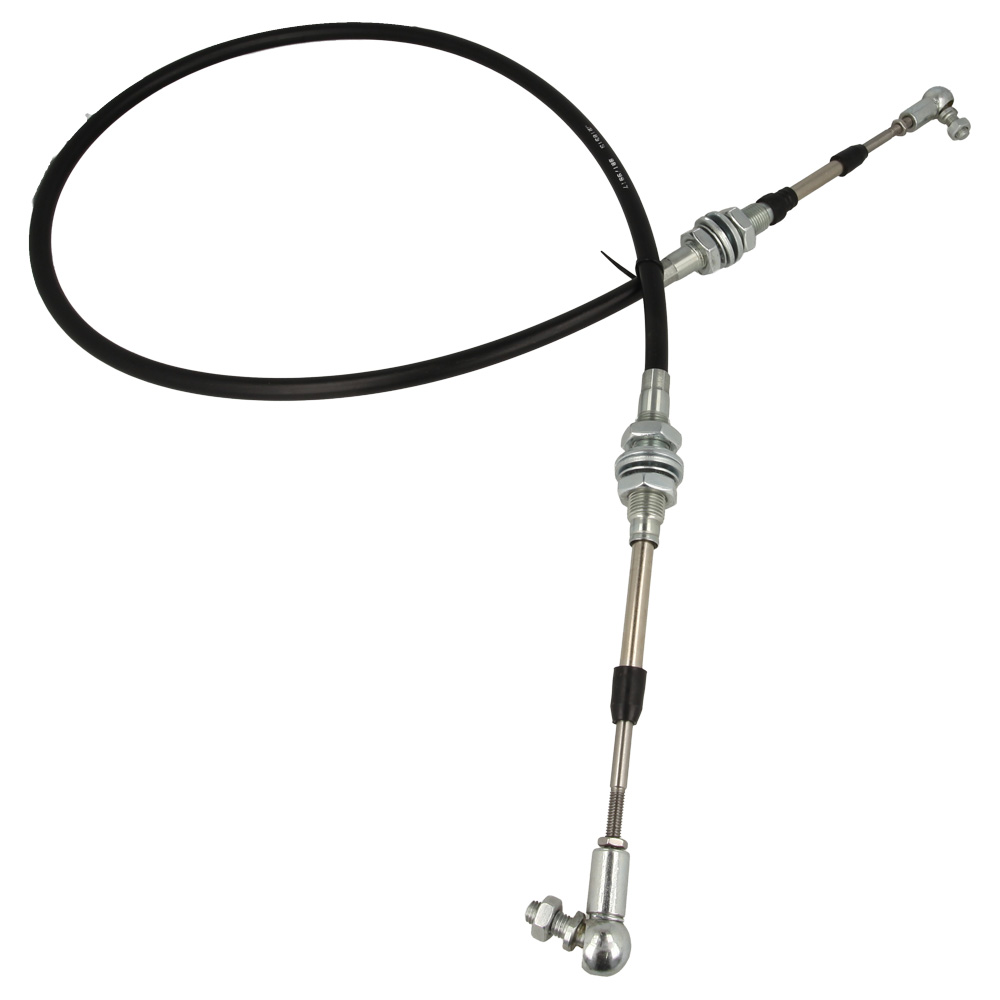

6	BE981/99917 Available to backorder	[6] - Pump Drive Control Cable	£170.40 £142.00
7	BE981/05500 Available to backorder	[7] - Self-Centre Assembly - Spares	£305.28 £254.40
8	BE2/0072 Available to backorder	[8] - Spring 88.9 Lg @ 1.29 N/mm	£35.74 £29.78
9	BE981/99912 Available to backorder	[9] - Bar Plunger Stop	£46.01 £38.34
10	BE981/03900 Available to backorder	[10] - Vib Lever Bottom	£17.83 £14.86
11	BE981/99931 Available to backorder	[11] - Boss Spring Guide	£18.25 £15.21
12	BE981/99932 Available to backorder	[12] - Boss Cable Clamp	£23.80 £19.83
13	BE2/0071 Available to backorder	[13] - Compression Spring 10.9N/mm	£35.74 £29.78
14	BE981/99915 Available to backorder	[14] - Vibrator Clutch Cable	£59.16 £49.30
15	BE981/99819 Available to backorder	[15] - Shoulder Bolt M8	£16.76 £13.97
16	BE8/8008 Available to backorder	[16] - Nut	£0.48 £0.40
17	BE8/6007 Available to backorder	[17] - Nut	£0.48 £0.40
18	BE981/99920 Available to backorder	[18] - Boss E-Stop Plunger	£48.29 £40.24
19	BE74/0026 Available to backorder	[19] - Hand Knob M12 Ball	£4.45 £3.71
20	BE981/99965 Available to backorder	[20] - Reverse Guide Plate	£10.18 £8.48
21	BE981/99966 Available to backorder	[21] - Reverse Guide Spacer	£4.82 £4.02
22	BE500/06100 Available to backorder	[22] - Grease Nipple - M6 x 1mm	£0.48 £0.40
23	BE7/8037 Available to backorder	[23] - Screw	£0.48 £0.40
25	BE7/8092 Available to backorder	[25] - Screw	£1.49 £1.24
26	BE7/8016 Available to backorder	[26] - Screw	£0.48 £0.40
27	BE4/8006 Available to backorder	[27] - Washer M8	£0.48 £0.40
28	BE981/99973GR Available to backorder	[28] - Handle Surround Rhsgrey Grey	£105.60 £88.00
28	BE981/99973Y4 Available to backorder	[28] - Handle Surround Rhs Sig Yel Yellow	£105.60 £88.00
30	BE981/99820 Available to backorder	[30] - Handle Roller Boss	£15.06 £12.55
31	BE981/99824 Available to backorder	[31] - Bar Vib Control Screw Type	£21.19 £17.66
32	BE981/99823 Available to backorder	[32] - Control Knob M10 Large	£53.75 £44.79
33	BE981/99828 Available to backorder	[33] - Pressing Vib Guide Lever	£220.20 £183.50
34	BE8/10002 Available to backorder	[34] - Nut	£0.48 £0.40
35	BE981/09400 Available to backorder	[35] - Vibrator Lever Top	£34.20 £28.50
36	BE3/0039 Available to backorder	[36] - Pin Spirol 6 x 25	£1.06 £0.88
37	BE4/8004 Available to backorder	[37] - Washer	£0.48 £0.40
