Belle TDX 650 A - Drum Assembly

Description

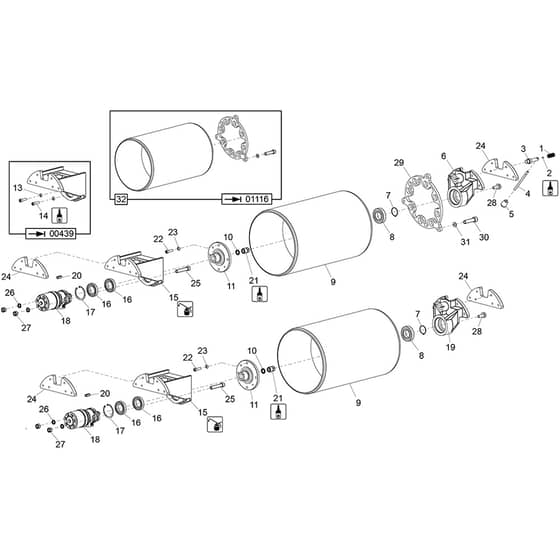

Belle TDX 650 A - Drum Assembly - Parts Diagram

	Part No.	Details
0	BE5/0088 Available to backorder	[-] - Omr Hydra. Motor Seal Kit	£134.48 £112.07
1	BE2/0061 Available to backorder	[1] - Spring 27.81 Od x 50.8 Lg	£14.34 £11.95
2	BE7/6008 Available to backorder	[2] - Screw	£0.48 £0.40
3	BE919/99843_1 Available to backorder	[3] - Boss Stopper Shaft Assy Kit Stock Code 919/99843	£36.40 £30.33
4	BE919/99843_2 Available to backorder	[4] - Handle Stopper Shaft Assy Kit Stock Code 919/99843	£13.42 £11.18
4	BE919/99843 Available to backorder	[4a] - Stopper Shaft Assy Kit Stock Code 919/99843 Includes 919/99843_1 And 919/9	£47.36 £39.47
5	BE74/0001 Available to backorder	[5] - Knob - Red 8144-265	£32.60 £27.17
6	BE981/00301GR Available to backorder	[6] - Rotating Sprt M/Cd Anthr Grey	£178.58 £148.82
7	BE3/9012 Available to backorder	[7] - Circlip 50 x 2.0 Up To Serial No. 00980	£2.64 £2.20
8	BE53/0085 Available to backorder	[8] - Single Row Dgbb 90x50x20 Up To Serial No. 00980	£34.54 £28.78
8	BE53/0094 Available to backorder	[8] - Single Row Dgbb From Serial No. 00981	£104.32 £86.93
31	BE4/1202 Available to backorder	[31] - Washer From Serial No. 01117 M12	£0.48 £0.40
