Belle TBE 130-165 - Drum Assembly

Part No. TBE130165Drum-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle TBE 130-165 - Drum Assembly

Belle TBE 130-165 - Drum Assembly

Description

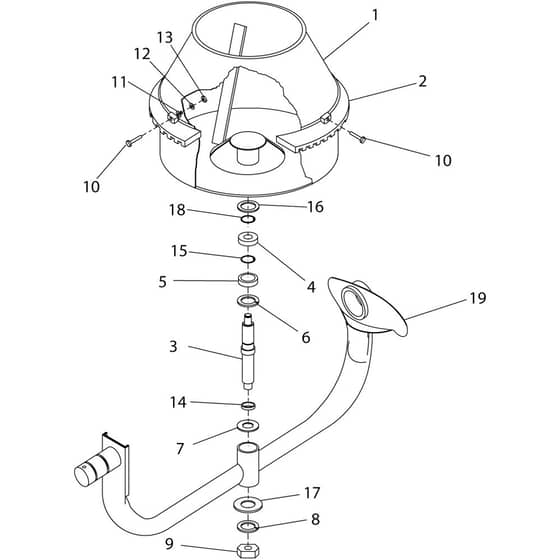

Belle TBE 130-165 - Drum Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	1		BE903/99505 Available to backorder	[1] - Drum Bwe - 80 Tbe 130		£153.60 £128.00
	1		BE903/99535 Available to backorder	[1] - Drum 110 Tbe 165		£255.24 £212.70
	2		BE903/99510 Available to backorder	[2] - Sprocket Z 132		£81.72 £68.10
	3		BE903/99506 Available to backorder	[3] - Drum Pivot		£79.80 £66.50
	4		BE53/0003 Available to backorder	[4] - Bearing 6304-2Z		£48.04 £40.03
	5		BE53/0027 Available to backorder	[5] - Bearing 6205		£13.49 £11.24
	6		BE903/99520 Available to backorder	[6] - Ring W52		£5.03 £4.19
	7		BE4/3201 Available to backorder	[7] - Washer		£3.34 £2.78
	8		BE944/99048 Available to backorder	[8] - Spring Washer M16		£2.14 £1.78
	10		BE7/8012 Available to backorder	[10] - Screw		£0.48 £0.40
	11		BE4/8001 Available to backorder	[11] - Washer Now Use - 4/8006		£0.48 £0.40
	12		BE4/8003 Available to backorder	[12] - Washer M8		£0.71 £0.59
	13		BE8/8004 Available to backorder	[13] - Nut		£0.37 £0.31
	14		BE5/0063 Available to backorder	[14] - Seal Ring 35 x 52 x 7		£17.36 £14.47
	15		BE903/99518 Available to backorder	[15] - Ring Z25		£4.97 £4.14
	16		BE903/99536 Available to backorder	[16] - Spacer		£0.58 £0.48
	17		BE4/1702 Available to backorder	[17] - Washer		£3.34 £2.78
	18		BE903/99537 Available to backorder	[18] - Ring Z-20		£5.03 £4.19
	19		BE959/99501 Available to backorder	[19] - Yoke		£67.80 £56.50

Description

Belle TBE 130-165 - Drum Assembly - Parts Diagram
