Belle Superior 300-350-400 - Axle Assembly

Belle Superior 300-350-400 - Axle Assembly

Part No. Superior300350400Axle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Superior 300-350-400 - Axle Assembly

Belle Superior 300-350-400 - Axle Assembly

Description

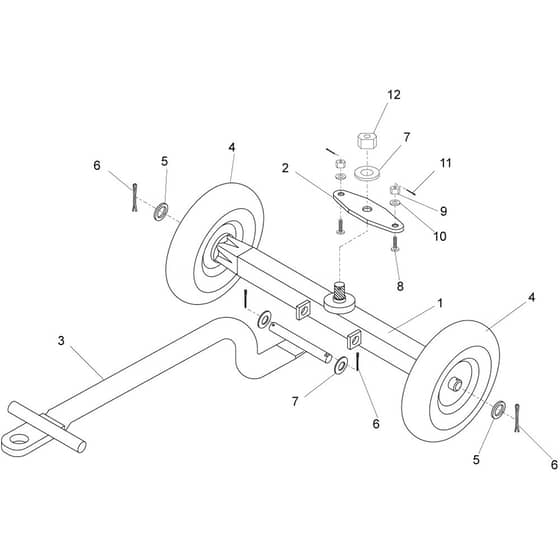

Belle Superior 300-350-400 - Axle Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	1		BE963/99005 Available to backorder	[1] - Axle		£123.60 £103.00
	2		BE909/99935 Available to backorder	[2] - Plate Axle Swivel		£47.23 £39.36
	3		BE963/99012 Available to backorder	[3] - Towbar		£81.72 £68.10
	4		BE963/99044 Available to backorder	[4] - Wheel Small		£113.04 £94.20
	5		BE963/99014 Available to backorder	[5] - Washer		£0.91 £0.76
	6		BE946/99552 Available to backorder	[6] - Split Pin 5 x 45		£1.39 £1.16
	7		BE963/99013 Available to backorder	[7] - Washer		£0.91 £0.76
	8		BE7/10010 Available to backorder	[8] - Screw		£0.43 £0.36
	9		BE8/10003 Available to backorder	[9] - Nut		£0.48 £0.40
	10		BE946/99537 Available to backorder	[10] - Washer		£1.39 £1.16
	11		BE946/99604 Available to backorder	[11] - Split Pin 4 x 45		£1.39 £1.16
	12		BE8/2001 Available to backorder	[12] - Nut		£6.40 £5.33

Description

Belle Superior 300-350-400 - Axle Assembly - Parts Diagram
