Belle Submersible Water Pump - Hydraulic Water Pump

Description

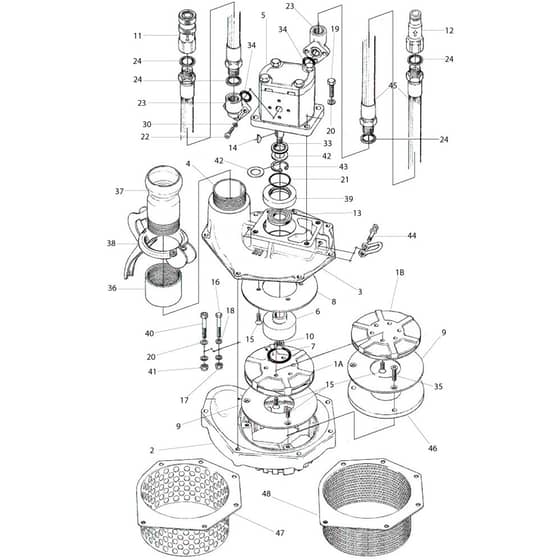

Belle Submersible Water Pump - Hydraulic Water Pump - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE176/99501 Available to backorder	[1A] - Impellar 2322-S Dia 128mm	£525.60 £438.00
1	BE176/99502 Available to backorder	[1B] - Impeller 2322-C Dia 97mm	£525.60 £438.00
2	BE176/99503 Available to backorder	[2] - Bottom Casing	£865.20 £721.00
3	BE176/99504 Available to backorder	[3] - Main Body	£1,096.80 £914.00
4	BE176/99505 Available to backorder	[4] - Outlet Tube	£141.34 £117.78
5	BE176/99506 Available to backorder	[5] - Hydraulic Motor	£1,442.40 £1,202.00
6	BE176/99507 Available to backorder	[6] - Coupling	£270.00 £225.00
7	BE176/99508 Available to backorder	[7] - Seal	£4.66 £3.88
8	BE176/99509 Available to backorder	[8] - Top Wear Plate	£130.02 £108.35
9	BE176/99510 Available to backorder	[9] - Bottom Wear Plate	£130.02 £108.35
10	BE176/99511 Available to backorder	[10] - M12 Nut	£2.72 £2.27
11	BE176/99512 Available to backorder	[11] - Female Flat Face	£85.22 £71.02
12	BE176/99513 Available to backorder	[12] - Male Flat Face Qrc	£51.34 £42.78
13	BE176/99514 Available to backorder	[13] - Water Seal	£92.82 £77.35
14	BE176/99515 Available to backorder	[14] - Drive Key	£3.68 £3.07
15	BE176/99516 Available to backorder	[15] - M6 x 16 C'Sunk Screw	£3.76 £3.13
16	BE176/99517 Available to backorder	[16] - M6 x 55 Bolt	£2.98 £2.48
17	BE176/99518 Available to backorder	[17] - M6 Nyloc Nut	£1.42 £1.18
18	BE176/99519 Available to backorder	[18] - Washer M6	£3.68 £3.07
19	BE176/99520 Available to backorder	[19] - M8 x 30 Bolt	£6.24 £5.20
20	BE176/99521 Available to backorder	[20] - Washer M8	£1.78 £1.48
21	BE176/99522 Available to backorder	[21] - O Ring Bs127	£4.52 £3.77
22	BE176/99523 Available to backorder	[22] - M6 x M20 Cap Head	£3.68 £3.07
23	BE176/99524 Available to backorder	[23] - Elbow Connection	£93.40 £77.83
24	BE176/99525 Available to backorder	[24] - 1/2" Bsp Bonded Seal	£2.36 £1.97
25	BE176/99526 Available to backorder	[25] - 3/8 Bsp Bonded Seal	£2.36 £1.97
30	BE176/99531 Available to backorder	[30] - O Ring Kit Hydraulic Motor	£65.60 £54.67
33	BE176/99532 Available to backorder	[33] - High Pressure Motor Seal	£171.26 £142.72
34	BE176/99533 Available to backorder	[34] - O-Ring Bs114	£4.40 £3.67
35	BE176/99534 Available to backorder	[35] - M6 x 25 C'Sunk Screw	£3.68 £3.07
36	BE176/99535 Available to backorder	[36] - 2" Female Socket	£48.66 £40.55
37	BE176/99536 Available to backorder	[37] - 2" Bauer	£110.48 £92.07
38	BE176/99537 Available to backorder	[38] - 2" Lever Lock	£63.08 £52.57
39	BE176/99538 Available to backorder	[39] - Seal Carrier	£66.76 £55.63
40	BE176/99539 Available to backorder	[40] - M8 x 55 Cap Head Bolt	£8.36 £6.97
41	BE176/99540 Available to backorder	[41] - M8 Nyloc Nut	£2.08 £1.73
42	BE176/99541 Available to backorder	[42] - Washer	£29.64 £24.70
43	BE176/99542 Available to backorder	[43] - Circlip	£13.44 £11.20
44	BE176/99543 Available to backorder	[44] - Lifting Shackle + Pin	£13.64 £11.37
45	BE176/99544 Available to backorder	[45] - 1/2" Hydraulic Hose	£145.82 £121.52
46	BE176/99545 Available to backorder	[46] - Spacer (High-Head Impeller)	£134.46 £112.05
47	BE176/99546 Available to backorder	[47] - 10mm Strainer	£295.68 £246.40
48	BE176/99547 Available to backorder	[48] - 3mm Strainer	£295.68 £246.40
