Belle SF 460 - Main Assembly

Name: Belle SF 460 - Main Assembly
SKU: SF460Main-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

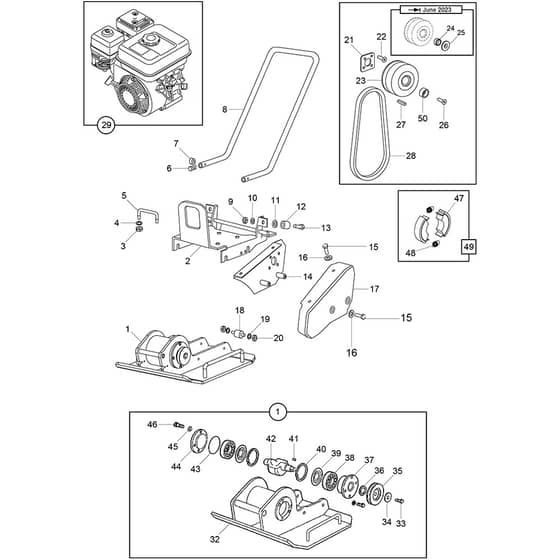

Belle SF 460 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE164.3.003 Available to backorder	[1] - Baseplate Assembly	£980.40 £817.00
2	BE164.0.016 Available to backorder	[2] - Engine Plate Weldment	£250.68 £208.90
3	BE164.0.023 Available to backorder	[3] - U' Screw	£6.44 £5.37
5	BE164.0.024 Available to backorder	[5] - Lock Nut	£1.28 £1.07
6	BE164.0.021 Available to backorder	[6] - Bush	£10.42 £8.68
7	BE164.0.022 Available to backorder	[7] - Spacer	£10.58 £8.82
8	BE164.0.020 Available to backorder	[8] - Handle Bar	£77.60 £64.67
9	BE164.0.036 Available to backorder	[9] - Lock Nut	£1.34 £1.12
11	BE164.0.039 Available to backorder	[11] - Washer	£1.28 £1.07
12	BE164.0.034 Available to backorder	[12] - Spacer	£12.94 £10.78
13	BE164.0.035 Available to backorder	[13] - Skt. Hd. Cap Screw	£2.34 £1.95
14	BE164.0.030 Available to backorder	[14] - Inner Cover Weldment	£62.82 £52.35
15	BE7/8011 Available to backorder	[15] - Screw	£0.48 £0.40
16	BE164.0.026 Available to backorder	[16] - Washer	£2.82 £2.35
17	BE164.0.032 Available to backorder	[17] - Outer Cover- Aluminium	£79.82 £66.52
18	BE164.0.017 Available to backorder	[18] - Rubber Mount	£23.34 £19.45
19	BE4/1001 Available to backorder	[19] - Washer M10	£0.48 £0.40
20	BE8/10006 Available to backorder	[20] - Nut	£0.48 £0.40
21	BE164.0.055 Available to backorder	[21] - Spacer - Backplate Belt Guard	£5.92 £4.93
22	BE7/5162 Available to backorder	[22] - Screw	£1.12 £0.93
23	BE10.7.225 Available to backorder	[23] - Centrifugal Clutch	£261.84 £218.20
26	BE07.3.101 Available to backorder	[26] - Socket Head Countersunk Set 5/	£1.72 £1.43
27	BE06.8.001 Available to backorder	[27] - Key - 3/16" Sq x 1.25" Long	£4.92 £4.10
28	BE164.0.029 Available to backorder	[28] - V Belt	£10.78 £8.98
30	BE21/0236 Available to backorder	[30] - Exhaust Deflector	£9.72 £8.10
31	BE21.0.140 Available to backorder	[31] - Screw Pan Head Pozi-Drive 5/16	£0.48 £0.40
32	BE164.0.001 Available to backorder	[32] - Base Plate - Painted	£850.80 £709.00
33	BE164.0.013 Available to backorder	[33] - Hex. Hd. Bolt	£0.91 £0.76
34	BE164.0.015 Available to backorder	[34] - Washer	£1.28 £1.07
35	BE164.0.007 Available to backorder	[35] - Pulley	£46.64 £38.87
36	BE164.0.006 Available to backorder	[36] - Oil Seal	£52.00 £43.33
37	BE164.0.003 Available to backorder	[37] - Bearing Cover - Pulley Side	£38.76 £32.30
38	BE164.0.005 Available to backorder	[38] - Bearing	£36.34 £30.28
39	BE164.0.008 Available to backorder	[39] - Round Shim	£7.06 £5.88
40	BE164.0.009 Available to backorder	[40] - Circlip	£16.62 £13.85
41	BE164.0.011 Available to backorder	[41] - Pin	£7.82 £6.52
42	BE164.0.002 Available to backorder	[42] - Eccentric Shaft	£161.18 £134.32
43	BE164.0.010 Available to backorder	[43] - O' Ring	£3.48 £2.90
44	BE164.0.004 Available to backorder	[44] - Bearing Cover - Blind Side	£38.80 £32.33
45	BE164.0.025 Available to backorder	[45] - Washer	£4.78 £3.98

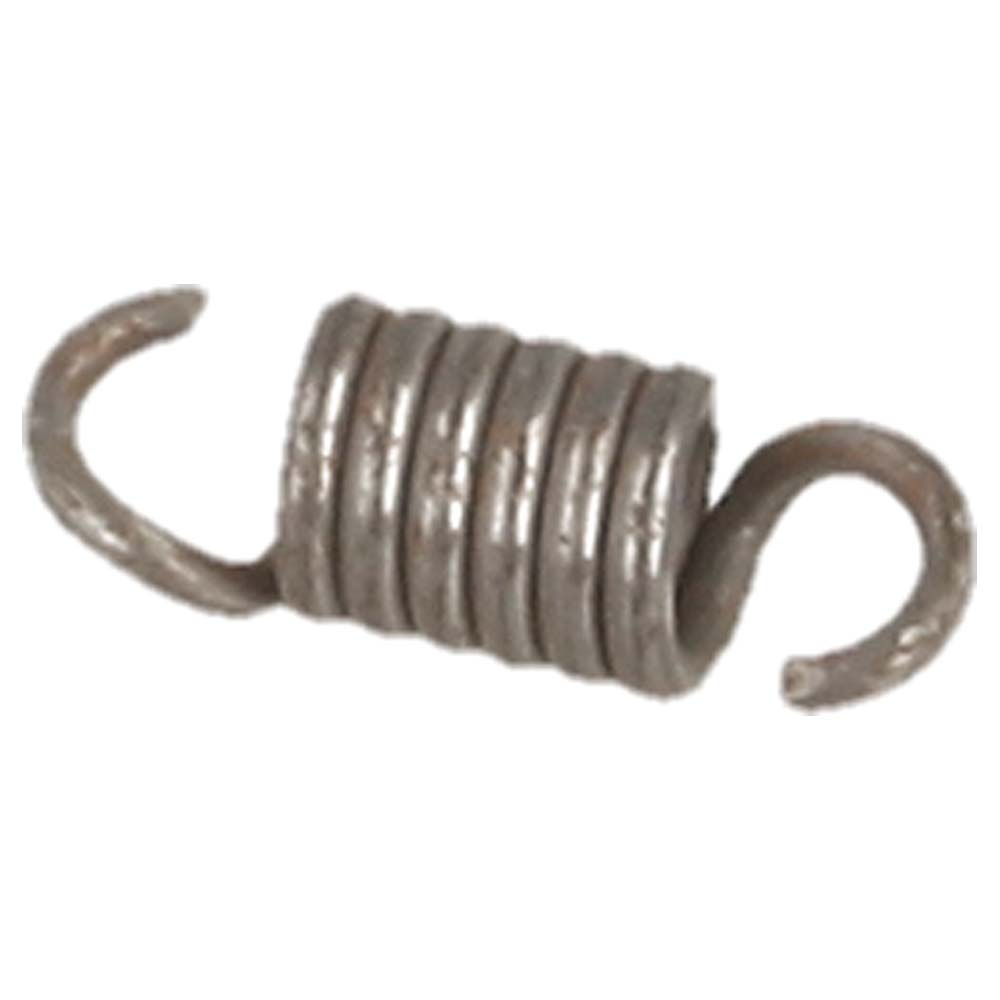

47	BE21/0360 Available to backorder	[47] - Spring - 10.7.225 Clutch	£6.44 £5.37
48	BE21/0365 Available to backorder	[48] - Lining - 10.7.225 Clutch	£63.28 £52.73
49	BE10.7.225KIT Available to backorder	[49] - Kit - 10.7.225 Clutch	£197.88 £164.90
50	BE164.0.056 Available to backorder	[50] - Spacer - Clutch	£5.78 £4.82
