Description

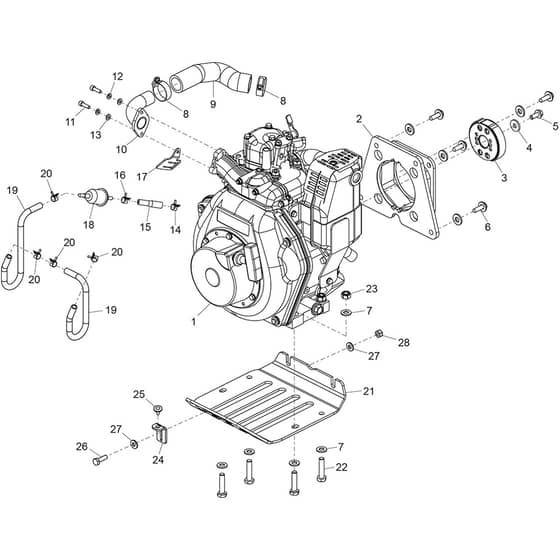

Belle RTX - Yanmar L48 Engine Assembly - Parts Diagram

	Part No.	Details
1	BE20/0122 Available to backorder	[1] - Yanmar L48 Rammer Engine	£2,738.30 £2,281.92
2	BE980/04100 Available to backorder	[2] - Machined Spacer Engine Rtxd	£188.28 £156.90
3	BE21/0374 Available to backorder	[3] - Clutch - Rtx-D - L48 Yanmar	£158.76 £132.30
4	BE4/8014 Available to backorder	[4] - Washer	£0.48 £0.40
5	BE7/8037 Available to backorder	[5] - Screw	£0.48 £0.40
6	BE7/8012 Available to backorder	[6] - Screw	£0.48 £0.40
7	BE4/1005 Available to backorder	[7] - Washer M10	£0.48 £0.40
8	BE3/7018 Available to backorder	[8] - Jubilee Clip 30-40mm	£3.46 £2.88
9	BE21/0387 Available to backorder	[9] - Pipe Air Intake Rammer Rtx-80D	£54.60 £45.50
10	BE980/04300 Available to backorder	[10] - Wa Air Intake L48 Yanmar	£31.92 £26.60
11	BE7/6003 Available to backorder	[11] - Screw	£0.48 £0.40
12	BE4/6005 Available to backorder	[12] - Washer M6	£0.48 £0.40
13	BE4/6001 Available to backorder	[13] - Washer M6	£0.48 £0.40
14	BE3/1021 Available to backorder	[14] - Spring Clip 12mm Nom	£2.32 £1.93
15	BE21/0380 Available to backorder	[15] - Hose Fuel L48 Diesel Rammer	£56.65 £47.21
16	BE3/1020 Available to backorder	[16] - Spring Clip 10mm Nom	£2.32 £1.93
17	BE21/0381 Available to backorder	[17] - Bracket Rtx-80D Fuel Filter	£5.46 £4.55

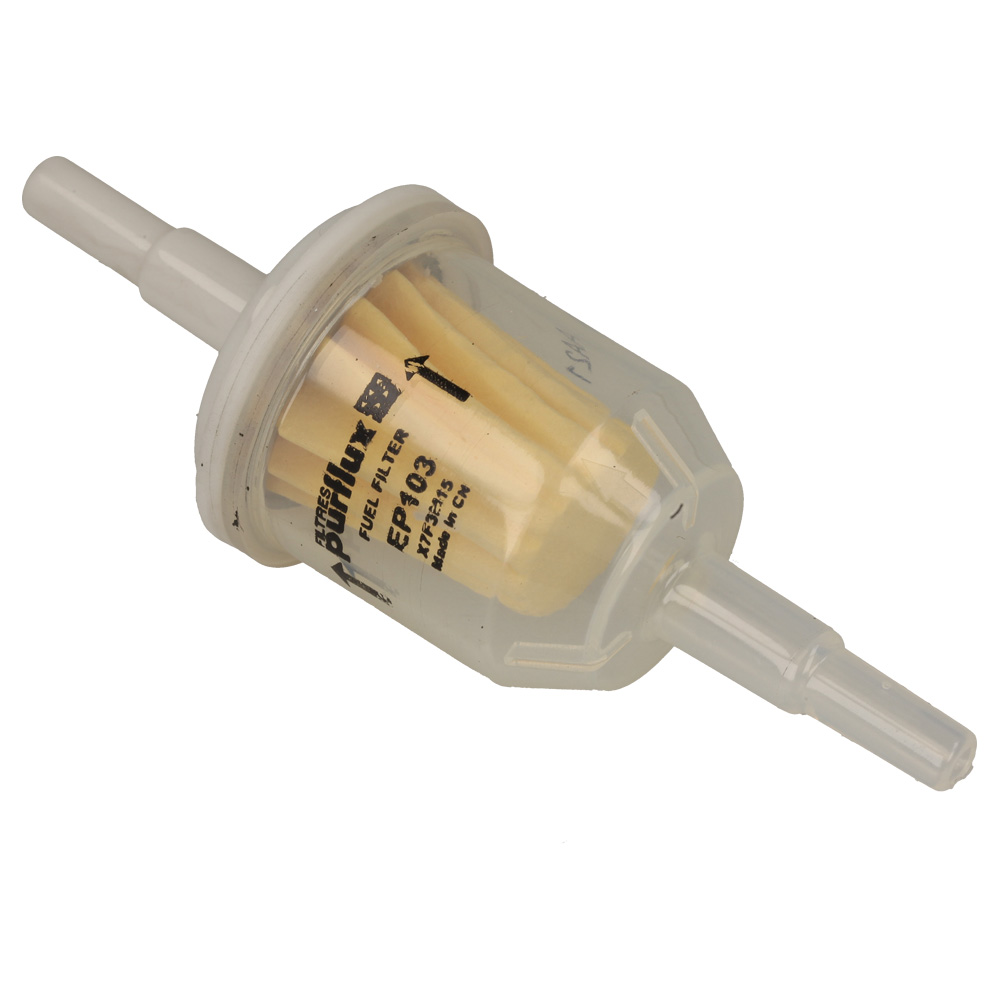

18	BE21/0058 Available to backorder	[18] - Filter In-Line Fuel. Ff898	£7.39 £6.16

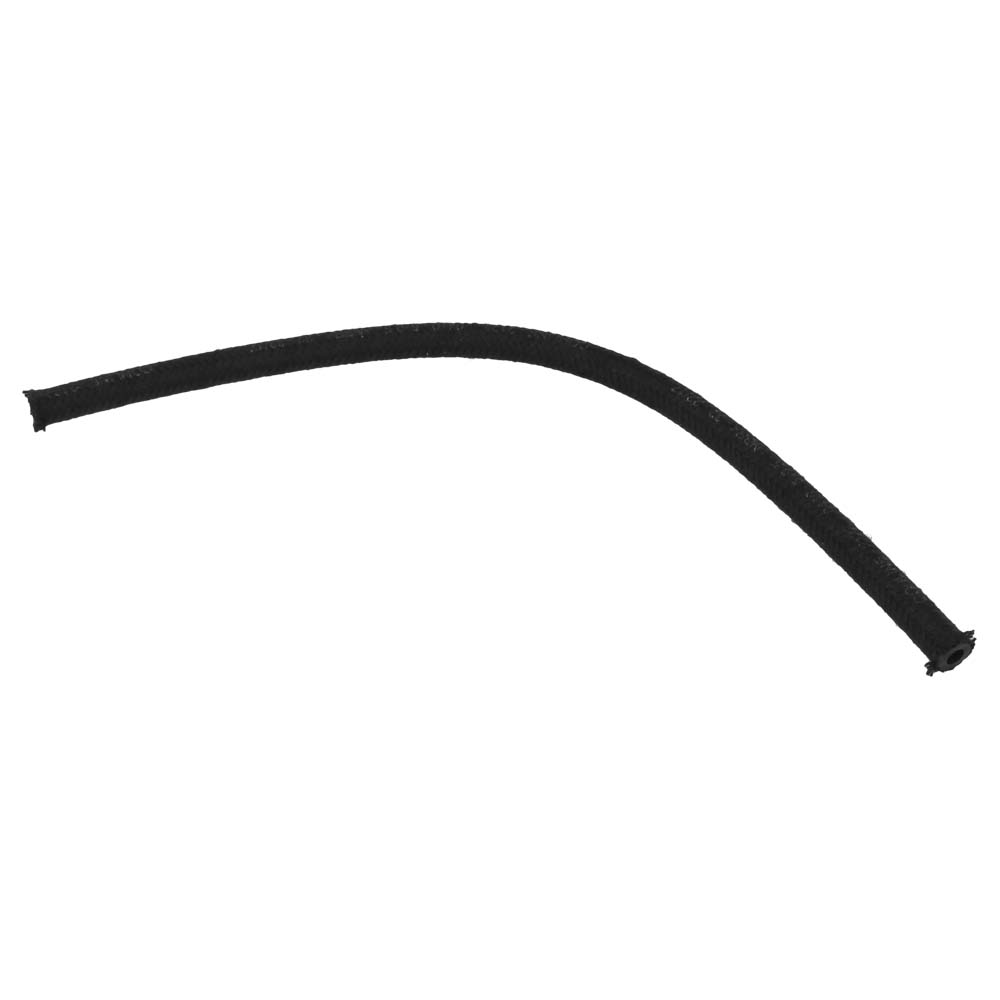

19	BE25/00019 Available to backorder	[19] - Hose Fuel 3/16" x 300mm	£7.16 £5.97
20	BE3/7057 Available to backorder	[20] - Clip Fuel 8.5mm H/Duty	£1.97 £1.64
21	BE980/99981 Available to backorder	[21] - Pressing Engine Deck L48	£43.22 £36.02

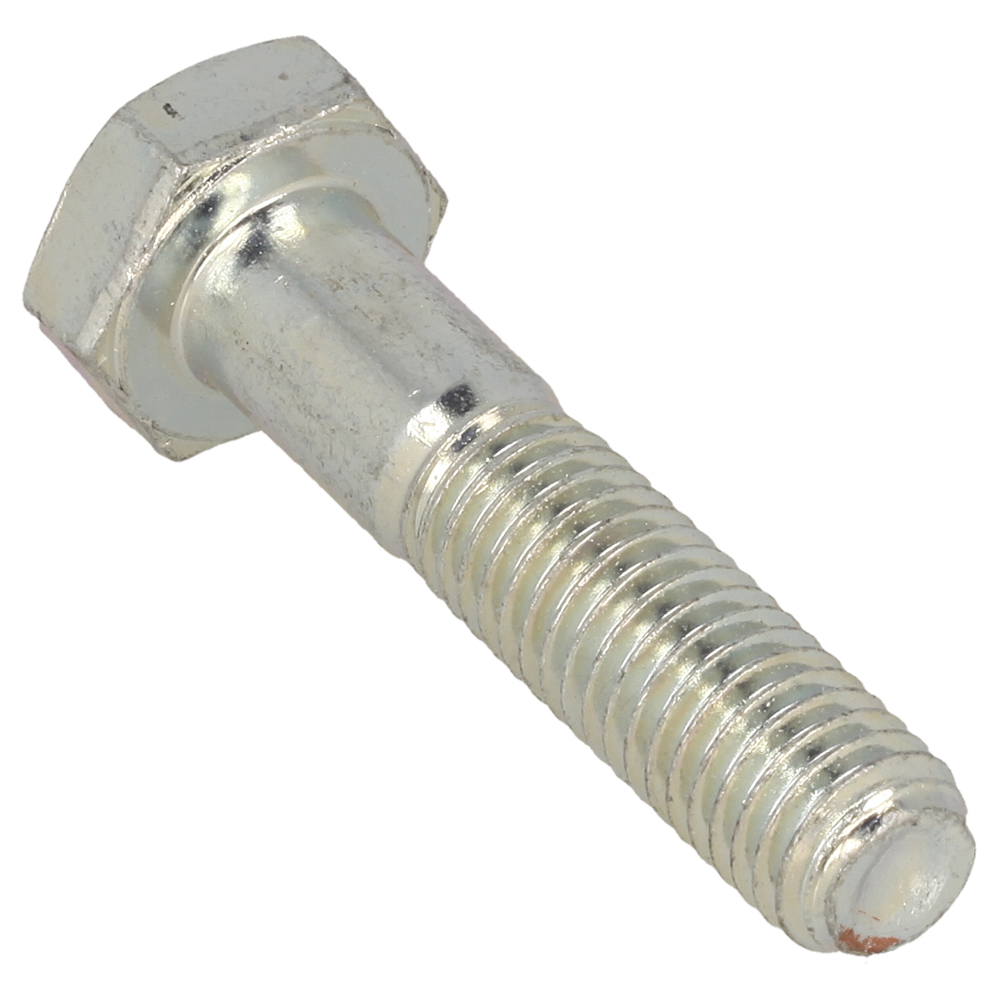

22	BE9/10005 Available to backorder	[22] - Bolt	£0.62 £0.52
23	BE8/10006 Available to backorder	[23] - Nut	£0.48 £0.40
24	BE980/99976 Available to backorder	[24] - Pressing Stop Bracket	£7.88 £6.57
25	BE3/3002 Available to backorder	[25] - Pad Foot	£4.68 £3.90
26	BE7/6037 Available to backorder	[26] - Screw	£1.39 £1.16
27	BE4/6007 Available to backorder	[27] - Washer M6	£0.48 £0.40
28	BE8/6002 Available to backorder	[28] - Nut	£1.06 £0.88
