Belle RTX - Honda GX100 & GXR120 Engine Assembly

Name: Belle RTX - Honda GX100 & GXR120 Engine Assembly
SKU: RTXGX100GXR120Engine-group
Price: 0.34 GBP
Availability: InStock

Part No. RTXGX100GXR120Engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle RTX - Honda GX100 & GXR120 Engine Assembly

Description

Belle RTX - Honda GX100 & GXR120 Engine Assembly - Parts Diagram

	Part No.	Details
2	BE980/99944 Available to backorder	[2] - Plate Engine Spacer Gx100	£7.45 £6.21
3	BE980/99968 Available to backorder	[3] - Pressing Engine Deck 68 Rtx 68 & 70 (Honda Gx100)	£26.03 £21.69
3	BE980/99927 Available to backorder	[3] - Pressing Engine Deck Gx100 Rtx 60 (Honda Gx100)	£57.94 £48.28
3	BE980/99945 Available to backorder	[3] - Pressing Engine Deck Rtx 50 Rtx 50 (Honda Gx100)	£56.75 £47.29
3	BE980/99894 Available to backorder	[3] - Rtx68R/70 Sump Protector Press Rtx 68 & 70 (Honda Gxr120)	£23.14 £19.28
4	BE8/8007 Available to backorder	[4] - Nut	£1.00 £0.83
5	BE4/8007 Available to backorder	[5] - Washer M8	£0.48 £0.40
6	BE4/8003 Available to backorder	[6] - Washer M8	£0.71 £0.59
7	BE7/8009 Available to backorder	[7] - Screw	£0.48 £0.40
8	BE21/0307 Available to backorder	[8] - Clutch Rammer Taper Bore	£123.72 £103.10
9	BE7/8037 Available to backorder	[9] - Screw	£0.48 £0.40
10	BE3/7018 Available to backorder	[10] - Jubilee Clip 30-40mm	£3.46 £2.88
11	BE21/0300 Available to backorder	[11] - Pipe Air Intake Rammer Gx100	£72.24 £60.20

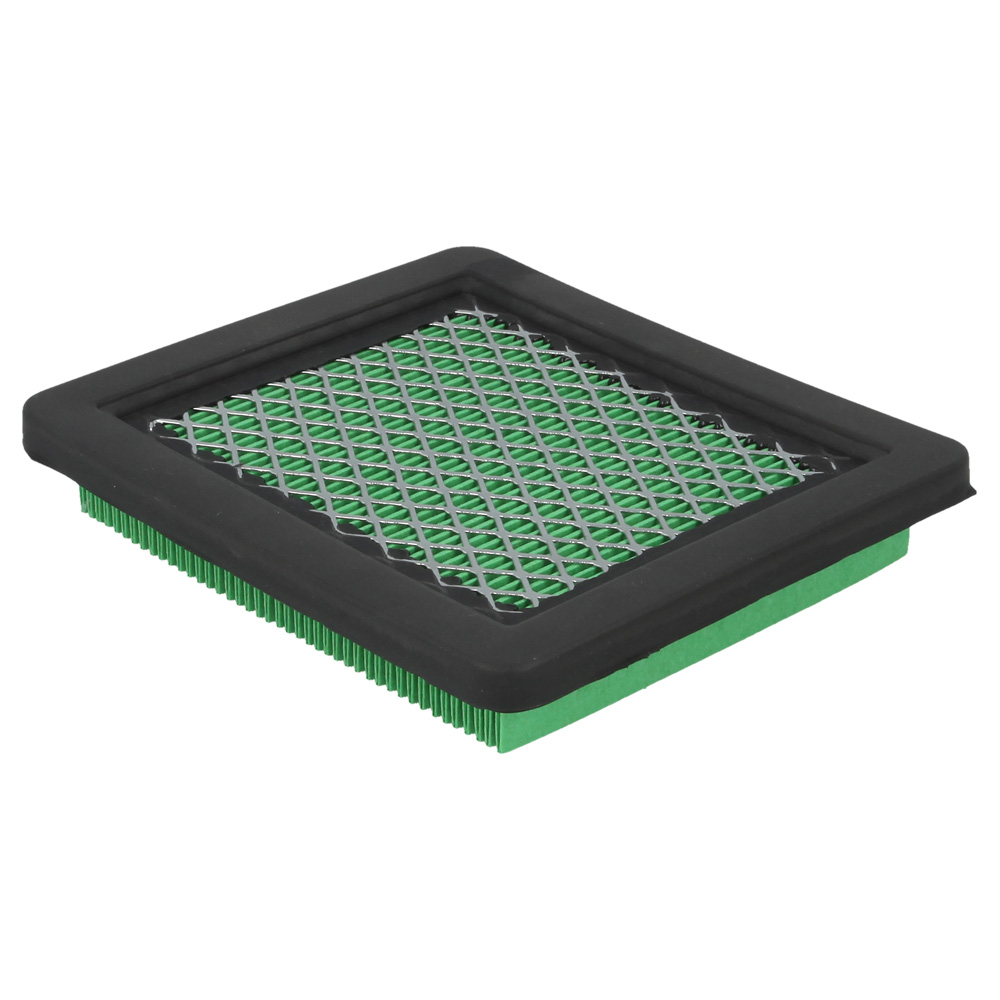

12	1012 In stock	[12] - Gx100 Air Filter	£2.53 £2.11
13	BE3/7055 Available to backorder	[13] - P-Clip 6mm x M6 Hole	£9.19 £7.66
14	BE3/6005 Available to backorder	[14] - Cable Tie (3.6x140Lg)	£0.48 £0.40
15	BE980/99969 Available to backorder	[15] - Plate Fuel Filter Brkt	£2.60 £2.17
16	BE3/7045 Available to backorder	[16] - P-Clip 13mm x M6 Hole	£2.65 £2.21
17	BE21.0.327 Available to backorder	[17] - Line Filter For Rtx Gx100	£38.96 £32.47
18	BE3/6009 Available to backorder	[18] - Cable Tie ( 7.6 x 370 Lg )	£0.52 £0.43
19	BE25/00008 Available to backorder	[19] - Hose Fuel 3/16" Epa Approved North America	£44.17 £36.81
19	BE25/00019 Available to backorder	[19] - Hose Fuel 3/16" x 300mm	£7.16 £5.97
20	BE21.0.319 Available to backorder	[20] - Tube Fuel Hose Return	£175.68 £146.40
21	BE158.0.101 Available to backorder	[21] - Flange Rtx 68 & 70	£115.68 £96.40
22	BE07.0.034 Available to backorder	[22] - Socket Head Capscrew M8 x 45 Rtx 68 & 70	£1.37 £1.14
24	BE980/99924 Available to backorder	[24] - Plate Adaptor (M/C) Rtx 68 & 70	£156.48 £130.40
25	BE980/99922 Available to backorder	[25] - Pressing Lifting Eye Rtx 50 & 60	£57.94 £48.28
26	BE3/8004 Available to backorder	[26] - Dowel 6 x 25 Lg Rtx 50 & 60	£2.32 £1.93
27	BE7/8039 Available to backorder	[27] - Screw Rtx 50 & 60	£1.06 £0.88
28	BE7/10053 Available to backorder	[28] - Screw Rtx 50 & 60	£3.72 £3.10
29	BE7/10010 Available to backorder	[29] - Screw Rtx 50 & 60	£0.43 £0.36
30	BE4/1004 Available to backorder	[30] - Washer Rtx 50 & 60 M10	£0.48 £0.40
31	BE8/10001 Available to backorder	[31] - Nut Rtx 50 & 60	£1.69 £1.41
32	BE3/7058 Available to backorder	[32] - Clip Fuel 8mm H/Duty	£1.97 £1.64
33	BE980/99970 Available to backorder	[33] - Boss Tap Adapter	£14.26 £11.88
34	BE5/0011 Available to backorder	[34] - Seal Bonded 1/4" Bsp	£1.26 £1.05
35	BE6/0229 Available to backorder	[35] - Valve Fuel Tap	£46.43 £38.69
36	BE980/99986 Available to backorder	[36] - Rtx50 Pressing Eng Spt Rhs	£21.35 £17.79
37	BE980/99985 Available to backorder	[37] - Rtx50 Pressing Eng Spt Lhs	£21.35 £17.79
38	BE7/8053 Available to backorder	[38] - Screw	£0.41 £0.34
39	BE800/99625 Available to backorder	[39] - Decal x 2 Pumps To Start	£8.65 £7.21
