Belle RTX - Handle Assembly (RTX60, 68 &70)

Name: Belle RTX - Handle Assembly (RTX60, 68 &70)
SKU: RTXHandleRTX606870-group
Price: 0.4 GBP
Availability: InStock

Part No. RTXHandleRTX606870-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle RTX - Handle Assembly (RTX60, 68 &70)

Description

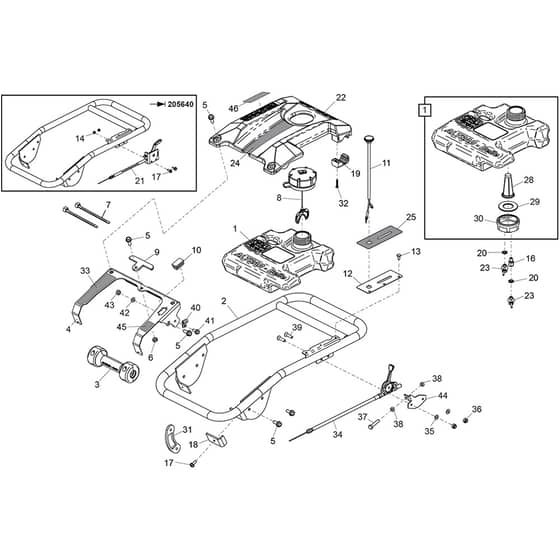

Belle RTX - Handle Assembly (RTX60, 68 &70) - Parts Diagram

	Part No.	Details
1	BE980/02000 Available to backorder	[1] - Fuel Tank Assy	£258.00 £215.00
1	BE980/01100 Available to backorder	[1] - Fuel Tank Assy Epa North America	£310.73 £258.94
2	BE980/00600 Available to backorder	[2] - W.A Main Frame 60 / 68 Rtx 60C	£358.66 £298.88
2	BE980/02300 Available to backorder	[2] - W.A. Main Frame Rtx 60 / 68 Lo Rtx 60 & 68	£249.60 £208.00
2	BE980/05700 Available to backorder	[2] - W.A Main Frame Rtx70 Rtx 70	£280.44 £233.70
3	BE980/02100 Available to backorder	[3] - G.A. Front Roller	£44.46 £37.05
4	BE980/99991 Available to backorder	[4] - Pressing Tank Mount From 210164	£38.00 £31.67
4	BE980/99950 Available to backorder	[4] - Pressing Tank Mount Up To 210163	£57.97 £48.31
5	BE7/8037 Available to backorder	[5] - Screw	£0.48 £0.40
6	BE8/8002 Available to backorder	[6] - Nut	£1.60 £1.33
7	BE3/6005 Available to backorder	[7] - Cable Tie (3.6x140Lg)	£0.48 £0.40
8	BE41/00018 In stock	[8] - Cap Fuel Tank	£10.07 £8.39
9	BE980/99951 Available to backorder	[9] - Plate Fuel Tank Clamp	£10.46 £8.72
10	BE3/4043 Available to backorder	[10] - Blanking Cap Rectanglular	£3.48 £2.90
11	BE70/0258 Available to backorder	[11] - Button Push E-Stop + Harness	£61.32 £51.10
12	BE980/99952 Available to backorder	[12] - Plate Throttle Control	£11.88 £9.90
13	BE7/6032 Available to backorder	[13] - Screw	£0.58 £0.48
15	BE4/6001 Available to backorder	[15] - Washer M6	£0.48 £0.40
16	BE6/0228 Available to backorder	[16] - Valve Inline Non Return	£54.48 £45.40
18	BE980/99947 Available to backorder	[18] - Pressing Av Mount Support	£10.22 £8.52
19	BE900/99918 In stock	[19] - Top Cover Clamp Now Use 900/99918_Pk2	£0.53 £0.44
19	BE900/99918_PK2 Available to backorder	[19] - Top Cover Clamp (Pack Of 2) Pack Of 2 Pack Of 2	£1.09 £0.91
20	BE5/0018 Available to backorder	[20] - Seal Bonded 1/8" Bsp	£1.88 £1.57
21	BE980/05000 Available to backorder	[21] - Kit Retr - Rtx Thrott - Short Rtx50 & 60 & 68	£137.28 £114.40
22	BE980/99935Y Available to backorder	[22] - Moulding Top Cover (Yellow) (Yellow)	£85.80 £71.50
22	BE980/99935G Available to backorder	[22] - Moulding Top Cover (Green) (Green)	£87.36 £72.80
22	BE980/99935S Available to backorder	[22] - Moulding Top Cover (Orange) (Orange)	£73.92 £61.60
22	BE980/99935R Available to backorder	[22] - Moulding Top Cover (Red) (Red)	£94.32 £78.60
23	BE158/99911 Available to backorder	[23] - 1/8 Bsp Banjo Fitting	£19.20 £16.00
24	BE800/99628 Available to backorder	[24] - Decal Top Cover Rtx	£13.12 £10.93
25	BE800/99626 Available to backorder	[25] - Decal Rammer Control Panel	£5.38 £4.48
28	BE21/0310 Available to backorder	[28] - Filter Fuel Tank	£31.28 £26.07
29	BE5/0083 Available to backorder	[29] - Seal Fuel Tank	£4.18 £3.48
30	BE980/99943 Available to backorder	[30] - Cap Fuel Tank Outlet	£45.31 £37.76
31	BE980/99946 Available to backorder	[31] - Plate Limit Support	£2.29 £1.91

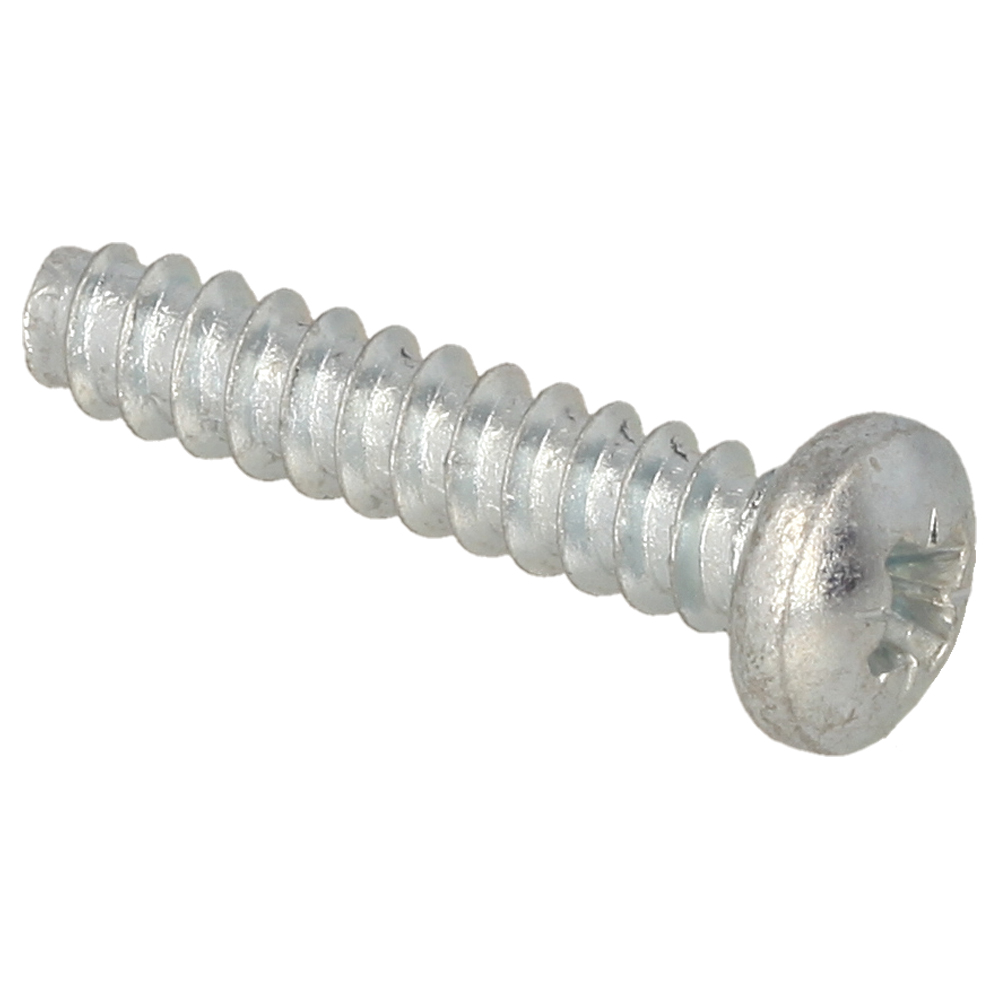

32	BE7/5017 Available to backorder	[32] - Screw 5.5 x 25	£0.48 £0.40
33	BE800/99631 Available to backorder	[33] - Decal Transport Position	£2.60 £2.17

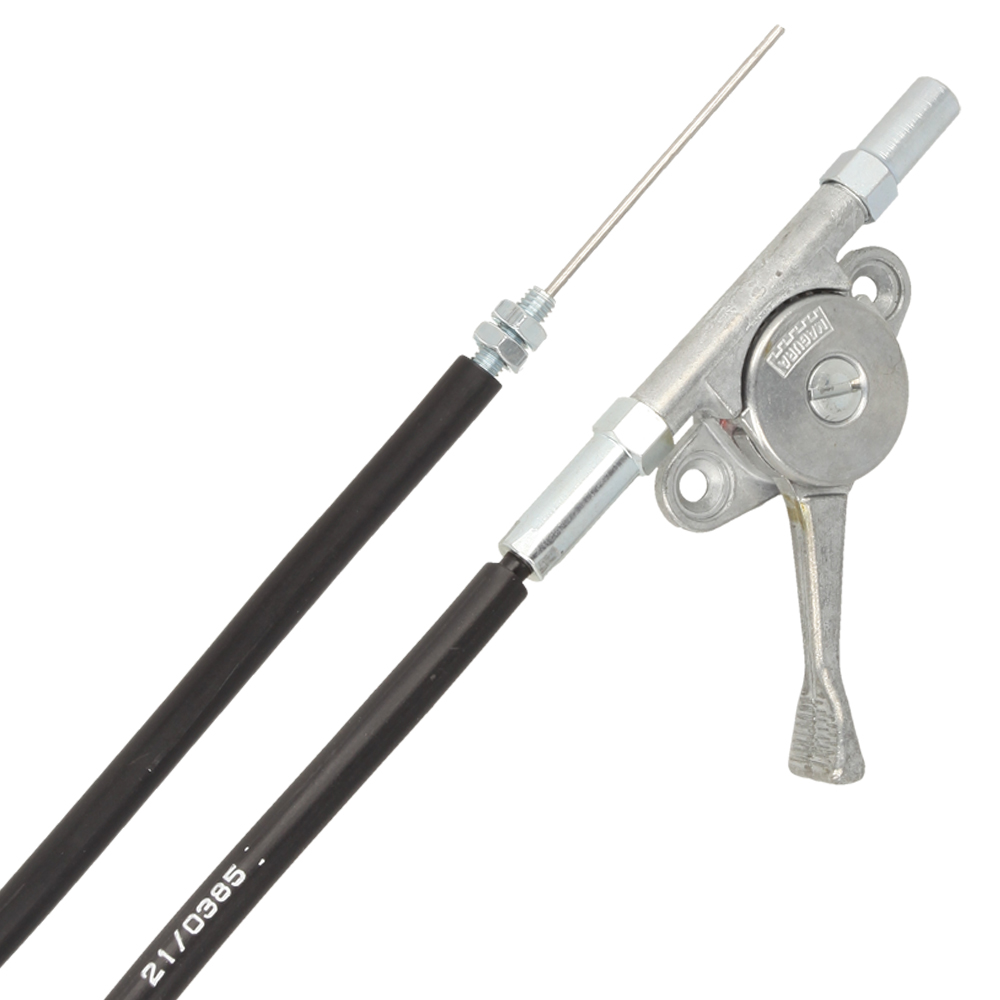

34	BE21/0385 Available to backorder	[34] - Rammer Throttle Assy	£98.16 £81.80
35	BE4/5002 Available to backorder	[35] - Washer M5	£2.51 £2.09
36	BE8/5003 Available to backorder	[36] - Nut	£0.48 £0.40
37	BE7/6039 Available to backorder	[37] - Screw	£0.48 £0.40
38	BE8/6001 Available to backorder	[38] - Nut	£0.68 £0.57
39	BE7/5018 Available to backorder	[39] - Screw	£1.18 £0.98
40	BE3/7055 Available to backorder	[40] - P-Clip 6mm x M6 Hole	£9.19 £7.66
41	BE7/6059 Available to backorder	[41] - Screw	£0.85 £0.71
42	BE4/6003 Available to backorder	[42] - Washer M6	£0.48 £0.40
43	BE8/6002 Available to backorder	[43] - Nut	£1.06 £0.88
44	BE21/0426 Available to backorder	[44] - Pressing - Rtx	£12.74 £10.62
45	BE800/99520 Available to backorder	[45] - Rtx Exhaust Fumes Warning Decl	£3.95 £3.29
46	BE800/99831 Available to backorder	[46] - 6 In 1 Safety Decal	£2.14 £1.78
