Belle RTX - Handle Assembly (RTX50, 66, 74 & 80D)

Name: Belle RTX - Handle Assembly (RTX50, 66, 74 & 80D)
SKU: RTXHandleRTX50667480D-group
Price: 0.4 GBP
Availability: InStock

Part No. RTXHandleRTX50667480D-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle RTX - Handle Assembly (RTX50, 66, 74 & 80D)

Description

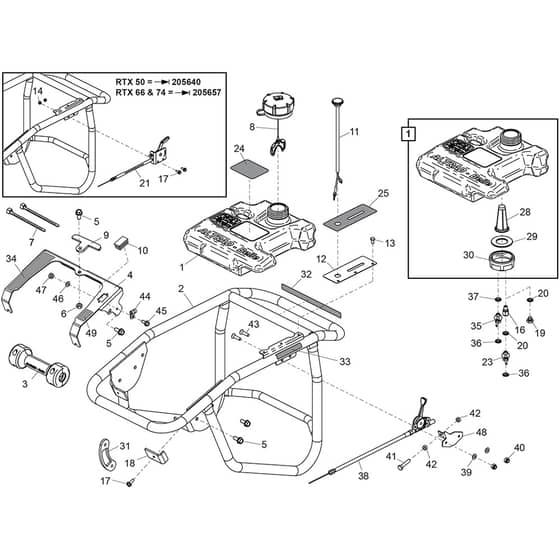

Belle RTX - Handle Assembly (RTX50, 66, 74 & 80D) - Parts Diagram

	Part No.	Details
1	BE980/02000 Available to backorder	[1] - Fuel Tank Assy	£258.00 £215.00
1	BE980/01100 Available to backorder	[1] - Fuel Tank Assy Epa North America Only	£310.73 £258.94
2	BE980/01000 Available to backorder	[2] - W.A Main Frame 66 / 74 Rtx 66 & 74	£416.65 £347.21
2	BE980/04000 Available to backorder	[2] - W.A. Large Main Frame Rtx80D Rtx 80D	£425.87 £354.89
2	BE980/01400 Available to backorder	[2] - W.A Main Frame 50 Rtx 50	£414.38 £345.32
3	BE980/02100 Available to backorder	[3] - G.A. Front Roller	£44.46 £37.05
4	BE980/99992 Available to backorder	[4] - Pressing Tank Mount From 210164	£37.78 £31.48
4	BE980/99967 Available to backorder	[4] - Pressing Tank Mount 50 66 74 Up To 210163	£31.74 £26.45
5	BE7/8037 Available to backorder	[5] - Screw	£0.48 £0.40
6	BE8/8002 Available to backorder	[6] - Nut	£1.60 £1.33
7	BE3/6005 Available to backorder	[7] - Cable Tie (3.6x140Lg)	£0.48 £0.40
8	BE41/00018 In stock	[8] - Cap Fuel Tank	£10.07 £8.39
9	BE980/99951 Available to backorder	[9] - Plate Fuel Tank Clamp	£10.46 £8.72
10	BE3/4043 Available to backorder	[10] - Blanking Cap Rectanglular	£3.48 £2.90
11	BE70/0258 Available to backorder	[11] - Button Push E-Stop + Harness	£61.32 £51.10
12	BE980/99952 Available to backorder	[12] - Plate Throttle Control	£11.88 £9.90
13	BE7/6032 Available to backorder	[13] - Screw	£0.58 £0.48
14	BE8/6006 Available to backorder	[14] - Nut Rtx 80D	£1.46 £1.22
15	BE4/6001 Available to backorder	[15] - Washer M6	£0.48 £0.40
16	BE6/0228 Available to backorder	[16] - Valve Inline Non Return	£54.48 £45.40
18	BE980/99947 Available to backorder	[18] - Pressing Av Mount Support	£10.22 £8.52
19	BE6/2014 Available to backorder	[19] - Blanking Plug 1/8" Bsp Special	£16.76 £13.97
21	BE980/05100 Available to backorder	[21] - Kit Retr - Rtx Thrott - Long Rtx 66 & 74 Rtx 66+ 74	£138.12 £115.10
21	BE980/05000 Available to backorder	[21] - Kit Retr - Rtx Thrott - Short Rtx 50 & 60 & 68 Rtx50 & 60 & 68	£137.28 £114.40
24	BE800/99523 Available to backorder	[24] - Rtx 80D Fuel Tank Decal Rtx 80D	£5.71 £4.76
24	BE800/99794 Available to backorder	[24] - Decal Fuel Tank Rtx 50 Rtx 50	£11.03 £9.19
24	BE800/99796 Available to backorder	[24] - Decal Fuel Tank Rtx 74 Rtx 74	£11.03 £9.19
24	BE800/99795 Available to backorder	[24] - Decal Fuel Tank Rtx 66 Rtx 66	£5.26 £4.38
25	BE800/99626 Available to backorder	[25] - Decal Rammer Control Panel	£5.38 £4.48
28	BE21/0310 Available to backorder	[28] - Filter Fuel Tank	£31.28 £26.07
29	BE5/0083 Available to backorder	[29] - Seal Fuel Tank	£4.18 £3.48
30	BE980/99943 Available to backorder	[30] - Cap Fuel Tank Outlet	£45.31 £37.76
31	BE980/99946 Available to backorder	[31] - Plate Limit Support Rtx 50	£2.29 £1.91
31	BE980/99948 Available to backorder	[31] - Plate Limit Support Rtx 66 & 74	£2.54 £2.12
32	BE800/99524 Available to backorder	[32] - Rtx 80D Diesel Only Decal	£2.38 £1.98
33	BE800/99513 Available to backorder	[33] - Rtx 80D Throttle Decal	£8.65 £7.21
34	BE800/99525 Available to backorder	[34] - Rtx 80D Transport Decal Rtx 80D	£6.64 £5.53
34	BE800/99631 Available to backorder	[34] - Decal Transport Position Rtx 50+ 66 & 74	£2.60 £2.17
35	BE158.0.013 Available to backorder	[35] - Fuel Strainer Assembly Rtx 80D Now Use 158.0.013Sp	£28.01 £23.34
35	BE158/99911 Available to backorder	[35] - 1/8 Bsp Banjo Fitting Rtx 50+ 66 & 74	£19.20 £16.00
37	BE5/0018 Available to backorder	[37] - Seal Bonded 1/8" Bsp Rtx 80D	£1.88 £1.57
38	BE21/0385 Available to backorder	[38] - Rammer Throttle Assy Rtx 50	£98.16 £81.80
38	BE21/0357 Available to backorder	[38] - Throttle Rtx80D L48 Yanmar Rtx 80D	£88.68 £73.90
38	BE21/0386 Available to backorder	[38] - Rammer Throttle Assy Large Rtx 66 & 74	£99.84 £83.20
39	BE4/5002 Available to backorder	[39] - Washer M5	£2.51 £2.09
40	BE8/5003 Available to backorder	[40] - Nut	£0.48 £0.40
41	BE7/6039 Available to backorder	[41] - Screw	£0.48 £0.40
42	BE8/6001 Available to backorder	[42] - Nut	£0.68 £0.57
43	BE7/5018 Available to backorder	[43] - Screw	£1.18 £0.98
44	BE3/7055 Available to backorder	[44] - P-Clip 6mm x M6 Hole	£9.19 £7.66
45	BE7/6059 Available to backorder	[45] - Screw	£0.85 £0.71
46	BE4/6003 Available to backorder	[46] - Washer M6	£0.48 £0.40
47	BE8/6002 Available to backorder	[47] - Nut	£1.06 £0.88
48	BE21/0426 Available to backorder	[48] - Pressing - Rtx	£12.74 £10.62
49	BE800/99520 Available to backorder	[49] - Rtx Exhaust Fumes Warning Decl	£3.95 £3.29
