Belle RTX - Gearbox Assembly (RTX50 & 60)

Belle RTX - Gearbox Assembly (RTX50 & 60)
Belle RTX - Gearbox Assembly (RTX50 & 60)

Description

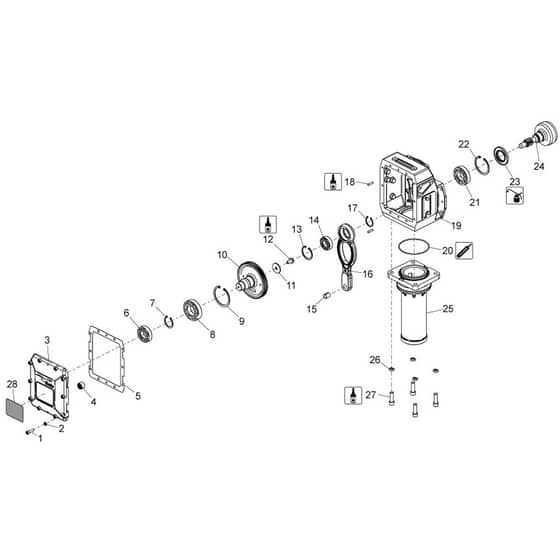

Belle RTX - Gearbox Assembly (RTX50 & 60) - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Screw
[1] - Screw
BE7/8010
Available to backorder
[1] - Screw
£2.42 £2.02

  2 [2] - Washer M8
[2] - Washer M8
BE4/8003
Available to backorder
[2] - Washer M8
£0.71 £0.59

  3 [3] - Cover Gearbox (M/C)
[3] - Cover Gearbox (M/C)
BE980/99910
Available to backorder
[3] - Cover Gearbox (M/C)
£188.78 £157.32

  4 [4] - Bearing 18 x 24 x 16 Needle Ro
[4] - Bearing 18 x 24 x 16 Needle Ro
BE53/0074
Available to backorder
[4] - Bearing 18 x 24 x 16 Needle Ro
£12.52 £10.43

  5 [5] - Gasket Gearcase
[5] - Gasket Gearcase
BE980/99940
Available to backorder
[5] - Gasket Gearcase
£13.32 £11.10

  6 [6] - Bearing 6206
[6] - Bearing 6206
BE53/0075
Available to backorder
[6] - Bearing 6206
£17.06 £14.22

  7 [7] - Circlip 40 Dia External
[7] - Circlip 40 Dia External
BE3/9032
Available to backorder
[7] - Circlip 40 Dia External
£1.96 £1.63

  8 [8] - Bearing 6208 - C4
[8] - Bearing 6208 - C4
BE53/0076
Available to backorder
[8] - Bearing 6208 - C4
£42.00 £35.00

  9 [9] - Cipclip 80 Dia Internal
[9] - Cipclip 80 Dia Internal
BE3/9030
Available to backorder
[9] - Cipclip 80 Dia Internal
£4.18 £3.48

  10 [10] - Shaft Driven (M/C) Small
[10] - Shaft Driven (M/C) Small
BE980/99942
Available to backorder
[10] - Shaft Driven (M/C) Small
£464.40 £387.00

  11 [11] - Washer
[11] - Washer
BE4/1009
Available to backorder
[11] - Washer
£9.28 £7.73

  12 [12] - Screw
[12] - Screw
BE7/10039
Available to backorder
[12] - Screw
£1.04 £0.87

  13 [13] - Circlip 52 Dia Internal
[13] - Circlip 52 Dia Internal
BE3/9028
Available to backorder
[13] - Circlip 52 Dia Internal
£2.24 £1.87

  14 [14] - Bearing 6205
[14] - Bearing 6205
BE53/0077
Available to backorder
[14] - Bearing 6205
£14.02 £11.68

  15 [15] - Bush 16 x 18 x 20Lg
[15] - Bush 16 x 18 x 20Lg
BE50/000075
Available to backorder
[15] - Bush 16 x 18 x 20Lg
£4.18 £3.48

  16 [16] - Connecting Rod Small
[16] - Connecting Rod Small
BE980/99904
Available to backorder
[16] - Connecting Rod Small
£128.98 £107.48

  17 [17] - Circlip 35 Dia External
[17] - Circlip 35 Dia External
BE3/9031
Available to backorder
[17] - Circlip 35 Dia External
£0.48 £0.40

  18 [18] - Dowel 6 x 25 Lg
[18] - Dowel 6 x 25 Lg
BE3/8004
Available to backorder
[18] - Dowel 6 x 25 Lg
£2.24 £1.87

  19 [19] - Casting Gearcase (M/C)
[19] - Casting Gearcase (M/C)
BE980/99908
Available to backorder
[19] - Casting Gearcase (M/C)
£595.20 £496.00

  20 [20] - O-Ring 109.5 x 3
[20] - O-Ring 109.5 x 3
BE5/0072
Available to backorder
[20] - O-Ring 109.5 x 3
£2.24 £1.87

  21 [21] - Bearing 6207 - C4
[21] - Bearing 6207 - C4
BE53/0078
Available to backorder
[21] - Bearing 6207 - C4
£28.20 £23.50

  22 [22] - Circlip 72 Dia Internal
[22] - Circlip 72 Dia Internal
BE3/9029
Available to backorder
[22] - Circlip 72 Dia Internal
£4.18 £3.48

  23 [23] - Seal 40 x 72 x 7 Hp
[23] - Seal 40 x 72 x 7 Hp
BE5/0071
Available to backorder
[23] - Seal 40 x 72 x 7 Hp
£48.54 £40.45

  24 [24] - G.A Rammer Drive Gear
[24] - G.A Rammer Drive Gear
BE980/00500
Available to backorder
[24] - G.A Rammer Drive Gear
£237.12 £197.60

  25 [25] - Guide Cyclinder (Small)
[25] - Guide Cyclinder (Small)
BE980/99917
Available to backorder
[25] - Guide Cyclinder (Small)
£601.20 £501.00

  26 [26] - Washer M12
[26] - Washer M12
BE4/1202
Available to backorder
[26] - Washer M12
£0.48 £0.40

  27 [27] - Screw
[27] - Screw
BE7/12010
Available to backorder
[27] - Screw
£1.26 £1.05

  28 [28] - Decal Gearcase Rtx 50 Rtx 50
[28] - Decal Gearcase Rtx 50 Rtx 50
BE800/99789
Available to backorder
[28] - Decal Gearcase Rtx 50 Rtx 50
£10.66 £8.88

  28 [28] - Rtx 60R Gearcase Branding Deca Rtx 60R
[28] - Rtx 60R Gearcase Branding Deca Rtx 60R
BE800/99384
Available to backorder
[28] - Rtx 60R Gearcase Branding Deca Rtx 60R
£2.60 £2.17

  28 [28] - Decal Gearcase Rtx 60 Rtx 60
[28] - Decal Gearcase Rtx 60 Rtx 60
BE800/99790
Available to backorder
[28] - Decal Gearcase Rtx 60 Rtx 60
£10.66 £8.88
