Belle RT 74 - Main Assembly

Name: Belle RT 74 - Main Assembly
SKU: RT74Main-group
Price: 0.31 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

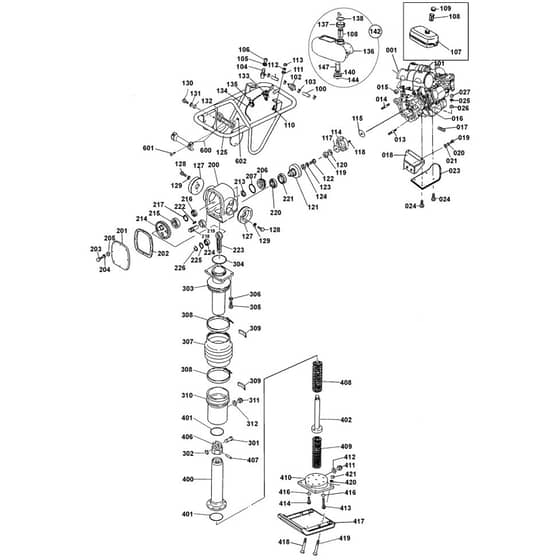

Belle RT 74 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	BE158.0.132 Available to backorder	[-] - Clutch Spring Rt50/65/66/74	£11.34 £9.45
13	BE00.5.063 Available to backorder	[13] - Stud Bolt M10 x 80	£13.16 £10.97
14	BE00.5.064 Available to backorder	[14] - Stud Bolt M10 x 53	£6.36 £5.30
15	BE01.0.105 Available to backorder	[15] - Nut M10	£0.48 £0.40
16	BE15.0.083 Available to backorder	[16] - Wire Clamp	£3.48 £2.90
17	BE158.0.107 Available to backorder	[17] - Protective Tube 7 x 250	£8.80 £7.33
18	BE158.0.049 Available to backorder	[18] - Engine Stay	£219.60 £183.00
19	BE00.0.176 Available to backorder	[19] - Bolt M10 x 30 8T	£0.48 £0.40
21	BE05.0.061 Available to backorder	[21] - Washer Now Use 4/1010	£6.94 £5.78
23	BE158.0.015 Available to backorder	[23] - Recoil Guard	£144.20 £120.17
23	BE158.0.119 Available to backorder	[23] - Recoil Guard - Rt66 + Rt74	£188.72 £157.27
24	BE00.0.023 Available to backorder	[24] - Bolt M8 x 50	£0.48 £0.40
100	BE158.0.009 Available to backorder	[100] - Fuel Hose (L160) For Rt66/74	£5.52 £4.60
101	BE158.0.003 Available to backorder	[101] - Fuel Hose (L80)	£7.24 £6.03
102	HP16910-GB2-005 Available to backorder	[102] - Strainer Compl+ Fuel	£16.81 £14.01
103	BE15.0.085 Available to backorder	[103] - Hose Clamp	£16.08 £13.40
104	BE158.0.013 Available to backorder	[104] - Fuel Strainer Assembly Now Use 158.0.013Sp	£29.41 £24.51
104	BE158.0.013SP Available to backorder	[104] - Fuel Strainer Assembly	£144.94 £120.78
105	BE158.0.014 Available to backorder	[105] - Grommet For Rt50/66/74	£6.88 £5.73
106	BE15.0.289 Available to backorder	[106] - O Ring S16	£1.00 £0.83
107	BE158.0.010 Available to backorder	[107] - Fuel Tank For Rt66/74 + Bmd300 Up To 190000	£205.80 £171.50
108	BE158.0.011 Available to backorder	[108] - Fuel Filter Rt50/66/74	£14.16 £11.80
109	BE158.0.012 Available to backorder	[109] - Fuel Tank Cap Rt50/66/74 Up To 190000	£18.73 £15.61
110	BE00.0.175 Available to backorder	[110] - Bolt M8 x 25	£0.37 £0.31
111	BE05.0.057 Available to backorder	[111] - Washer	£0.48 £0.40
113	BE01.0.104 Available to backorder	[113] - Nut - M8 Nyloc (155)	£0.56 £0.47
114	BE158.0.005 Available to backorder	[114] - Centrifugal Clutch Rt50/66/74	£261.36 £217.80
115	BE158.0.006 Available to backorder	[115] - Side Plate (A) For Rt50/66/74	£5.52 £4.60
117	BE158.0.007 Available to backorder	[117] - Side Plate (B)	£5.20 £4.33
118	BE06.3.111 Available to backorder	[118] - Woodruff Key	£5.08 £4.23
119	BE01.0.623 Available to backorder	[119] - Nut M12 Fine Threaded	£8.60 £7.17
120	BE05.1.007 Available to backorder	[120] - Spring Washer M12	£0.48 £0.40
121	BE158.0.021 Available to backorder	[121] - Clutch Housing	£158.00 £131.67
124	BE05.0.058 Available to backorder	[124] - Washer	£5.58 £4.65
125	BE158.0.024 Available to backorder	[125] - Operation Handle For Rt66/74 Up To 190000	£654.00 £545.00
125	BE158.0.133 Available to backorder	[125] - Operation Handle For Rt66/74 From 190001	£600.00 £500.00
127	BE158.0.025 Available to backorder	[127] - Rubber Isolator For Rt66/74	£137.38 £114.48
128	BE00.0.174 Available to backorder	[128] - Bolt M8 x 20 Ht Now Use - 7/8001	£1.09 £0.91
130	BE00.0.173 Available to backorder	[130] - Bolt M8 x 20	£0.48 £0.40
131	BE4/8003 Available to backorder	[131] - Washer M8	£0.71 £0.59
132	BE05.0.006 Available to backorder	[132] - Washer M8 (155) M8	£0.48 £0.40
133	BE19.0.402 Available to backorder	[133] - Throttle Lever For Rt66/74	£30.88 £25.73
134	BE19.0.403 Available to backorder	[134] - Throttle Wire For Rt66/74	£24.70 £20.58
135	BE15.0.081 Available to backorder	[135] - Hose Band	£6.68 £5.57
136	BE158.0.124 Available to backorder	[136] - Fuel Tank 2.7L From 190001	£264.00 £220.00
137	BE158.0.125 Available to backorder	[137] - Fuel Cap From 190001	£76.44 £63.70
138	BE158.0.129 Available to backorder	[138] - Strap From 190001	£6.80 £5.67
139	BE158.0.126 Available to backorder	[139] - In Tank Fuel Filter From 190001	£25.38 £21.15
140	BE158.0.127 Available to backorder	[140] - Tank Seal From 190001	£6.98 £5.82
141	BE158.0.128 Available to backorder	[141] - Tank Adaptor From 190001	£36.38 £30.32
142	BE158/01000 Available to backorder	[142] - Rt 65 Rammer Rework Kit From 190001	£480.00 £400.00
200	BE158.0.029 Available to backorder	[200] - Crank Case For Rt66/74	£1,128.00 £940.00
201	BE158.0.030 Available to backorder	[201] - Crank Case Cover	£209.16 £174.30
202	BE158.0.031 Available to backorder	[202] - Packing For Rt66/74	£20.62 £17.18
203	BE9/6019 Available to backorder	[203] - Bolt	£1.02 £0.85
204	BE05.1.004 Available to backorder	[204] - Spring Washer M6	£0.48 £0.40
205	BE05.0.002 Available to backorder	[205] - Washer M6 M6	£0.48 £0.40
206	BE158.0.032 Available to backorder	[206] - Shaft Cover	£103.02 £85.85
207	BE15.0.290 Available to backorder	[207] - O' Ring S39	£15.12 £12.60
213	BE05.8.058 Available to backorder	[213] - Snap Ring S25	£1.76 £1.47
214	BE158.0.033 Available to backorder	[214] - Crank Shaft	£453.60 £378.00
215	BE12.1.148 Available to backorder	[215] - Bearing 6207	£25.02 £20.85
216	BE12.1.151 Available to backorder	[216] - Bearing 6305Llu	£45.78 £38.15
217	BE05.8.060 Available to backorder	[217] - Snip Ring S62	£4.48 £3.73
218	BE158.0.034 Available to backorder	[218] - Pinion Shaft	£228.00 £190.00
219	BE12.1.150 Available to backorder	[219] - Bearing 6204Llu/4Llu	£17.64 £14.70
220	BE12.1.152 Available to backorder	[220] - Bearing 6907Llu	£42.68 £35.57
221	BE15.0.291 Available to backorder	[221] - Oil Seal Sc40588	£23.18 £19.32
222	BE06.3.110 Available to backorder	[222] - Key 5 x 5 x 20	£6.32 £5.27
223	BE158.0.035 Available to backorder	[223] - Connecting Rod	£161.36 £134.47
224	BE12.1.147 Available to backorder	[224] - Bearing 6204	£12.52 £10.43
225	BE05.8.059 Available to backorder	[225] - Snap Ring R47	£3.34 £2.78
226	BE05.8.057 Available to backorder	[226] - Snap Ring S20	£1.76 £1.47
301	BE158.0.036 Available to backorder	[301] - Piston Pin	£37.80 £31.50
302	BE05.8.056 Available to backorder	[302] - Snap Ring S16	£1.08 £0.90
303	BE158.0.016 Available to backorder	[303] - Guilding Cylinder	£960.00 £800.00
304	BE15.0.288 Available to backorder	[304] - O Ring G105	£4.62 £3.85
305	BE00.0.178 Available to backorder	[305] - Bolt M10 x 30	£1.28 £1.07
306	BE05.1.006 Available to backorder	[306] - Spring Washer M10	£0.48 £0.40
307	BE158.0.071 Available to backorder	[307] - Bellows - Orange Rt66 / Rt74	£364.80 £304.00
308	BE158.0.028 Available to backorder	[308] - Bellows Stop Band For Rt74	£68.60 £57.17
309	BE158.0.039 Available to backorder	[309] - Spacer For Rt50/66/74	£12.00 £10.00
310	BE158.0.090 Available to backorder	[310] - Protector	£398.40 £332.00
311	BE14.0.106 Available to backorder	[311] - Oil Plug For Rt50/66/74	£16.76 £13.97
312	BE158.0.042 Available to backorder	[312] - Rammer Spare	£2.06 £1.72
400	BE158.0.095 Available to backorder	[400] - Spring Cylinder	£600.00 £500.00
401	BE15.0.287 Available to backorder	[401] - O Ring G90	£4.62 £3.85
402	BE158.0.094 Available to backorder	[402] - Ram Rod	£247.20 £206.00
406	BE158.0.020 Available to backorder	[406] - Guide Joint	£264.36 £220.30
407	BE06.1.020 Available to backorder	[407] - Spring Pin 6 x 45	£1.76 £1.47
408	BE158.0.022 Available to backorder	[408] - Spring Upper	£195.96 £163.30
409	BE158.0.023 Available to backorder	[409] - Spring Lower	£190.28 £158.57
410	BE158.0.027 Available to backorder	[410] - Foot Stand	£398.40 £332.00
411	BE158.0.108 Available to backorder	[411] - Drain Plug 1/8"	£4.52 £3.77
413	BE07.0.055 Available to backorder	[413] - Socket Headbolt M10 x 40 10.9T	£0.80 £0.67
415	BE07.0.003 Available to backorder	[415] - Socket Headbolt M10 x 25 10.9T	£0.62 £0.52
416	BE05.3.072 Available to backorder	[416] - Coned Disc Washer M10 M10	£4.64 £3.87
417	BE158.0.903 Available to backorder	[417] - Ramming Shoe ( Rt74 )	£385.20 £321.00
419	BE00.5.062 Available to backorder	[419] - Square Flat Hd Bolt M12 x 75 From 181021	£17.23 £14.36
419	BE00.5.061 Available to backorder	[419] - Square Flat Head Bolt M12x69 Up To 0012225+ From 181020 Now Use 9/12041	£13.56 £11.30
420	BE4/1216 Available to backorder	[420] - Washer	£1.12 £0.93
421	BE8/12006 Available to backorder	[421] - Nut	£0.48 £0.40
600	BE158.0.008 Available to backorder	[600] - Roller Complete	£94.00 £78.33
601	BE7/6003 Available to backorder	[601] - Screw	£0.48 £0.40
602	BE8/6017 Available to backorder	[602] - Nut	£0.80 £0.67
603	BE158.0.118 Available to backorder	[603] - Grab Handle ( D) From 181144	£185.16 £154.30
