Belle RT 65 - Main Assembly

Name: Belle RT 65 - Main Assembly
SKU: RT65Main-group
Price: 0.31 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

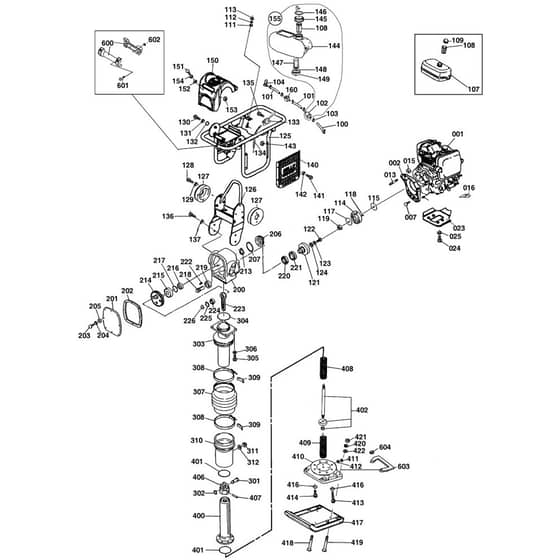

Belle RT 65 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	BE158.0.101 Available to backorder	[2] - Flange	£120.52 £100.43
3	BE158.0.102 Available to backorder	[3] - Dowel Pin	£2.65 £2.21
7	BE9/8042 Available to backorder	[7] - Bolt	£3.60 £3.00
13	BE00.5.063 Available to backorder	[13] - Stud Bolt M10 x 80	£13.16 £10.97
15	BE01.0.105 Available to backorder	[15] - Nut M10	£0.48 £0.40
16	BE15.0.082 Available to backorder	[16] - Wire Clamp	£6.60 £5.50
23	BE158/00300 Available to backorder	[23] - Engine Bedplate Wa	£51.56 £42.97
24	BE00.0.019 Available to backorder	[24] - Bolt M8 x 30 Ht Bzp 8T	£0.48 £0.40
100	BE158.0.009 Available to backorder	[100] - Fuel Hose (L160) For Rt66/74	£5.52 £4.60
101	BE158.0.003 Available to backorder	[101] - Fuel Hose (L80)	£7.24 £6.03
102	HP16910-GB2-005 Available to backorder	[102] - Strainer Compl+ Fuel	£16.81 £14.01
103	BE15.0.085 Available to backorder	[103] - Hose Clamp	£16.08 £13.40
104	BE158/99911 Available to backorder	[104] - 1/8 Bsp Banjo Fitting	£18.56 £15.47
106	BE15.0.289 Available to backorder	[106] - O Ring S16	£1.00 £0.83
107	BE158.0.063 Available to backorder	[107] - Fuel Tank Complete Rt50 + Rt65 Up To July �07	£206.04 £171.70
108	BE158.0.011 Available to backorder	[108] - Fuel Filter Rt50/66/74	£14.16 £11.80
109	BE158.0.012 Available to backorder	[109] - Fuel Tank Cap Rt50/66/74 Up To July �07	£18.73 £15.61
110	BE00.0.175 Available to backorder	[110] - Bolt M8 x 25	£0.37 £0.31
111	BE05.0.057 Available to backorder	[111] - Washer	£0.48 £0.40
113	BE01.0.104 Available to backorder	[113] - Nut - M8 Nyloc (155)	£0.56 £0.47
114	BE158.0.005 Available to backorder	[114] - Centrifugal Clutch Rt50/66/74	£261.36 £217.80
115	BE158.0.006 Available to backorder	[115] - Side Plate (A) For Rt50/66/74	£5.52 £4.60
117	BE158.0.007 Available to backorder	[117] - Side Plate (B)	£5.20 £4.33
118	BE06.3.111 Available to backorder	[118] - Woodruff Key	£5.08 £4.23
119	BE01.0.623 Available to backorder	[119] - Nut M12 Fine Threaded	£8.60 £7.17
121	BE158.0.021 Available to backorder	[121] - Clutch Housing	£158.00 £131.67
124	BE05.0.058 Available to backorder	[124] - Washer	£5.58 £4.65
125	BE158/00400 Available to backorder	[125] - Handle Wa	£290.76 £242.30
126	BE158/00500 Available to backorder	[126] - Mount Wa	£143.54 £119.62
127	BE158.0.070 Available to backorder	[127] - Rubber Isolator For Rt50	£137.38 £114.48
128	BE7/8001 Available to backorder	[128] - Screw	£0.60 £0.50
128	BE00.0.174 Available to backorder	[128] - Bolt M8 x 20 Ht Now Use - 7/8001	£1.09 £0.91
130	BE00.0.173 Available to backorder	[130] - Bolt M8 x 20	£0.48 £0.40
131	BE4/8003 Available to backorder	[131] - Washer M8	£0.71 £0.59
132	BE05.0.006 Available to backorder	[132] - Washer M8 (155) M8	£0.48 £0.40
133	BE19.0.962 Available to backorder	[133] - Throttle Lever	£107.76 £89.80
134	BE158/00801 Available to backorder	[134] - Throttle Cable	£97.28 £81.07
135	BE7/5007 Available to backorder	[135] - Screw	£2.34 £1.95
136	BE7/10016 Available to backorder	[136] - Screw	£3.14 £2.62
137	BE4/1003 Available to backorder	[137] - Washer M10	£0.48 £0.40
140	BE158/99917 Available to backorder	[140] - Removeable Guard	£34.40 £28.67
141	BE9/6001 Available to backorder	[141] - Bolt	£0.48 £0.40
142	BE4/6001 Available to backorder	[142] - Washer M6	£0.48 £0.40
143	BE8/6007 Available to backorder	[143] - Nut	£0.48 £0.40
144	BE158.0.124 Available to backorder	[144] - Fuel Tank 2.7L From July �07	£264.00 £220.00
145	BE158.0.125 Available to backorder	[145] - Fuel Cap From July �07	£76.44 £63.70
146	BE158.0.129 Available to backorder	[146] - Strap From July �07	£6.80 £5.67
147	BE158.0.126 Available to backorder	[147] - In Tank Fuel Filter From July �07	£25.38 £21.15
148	BE158.0.127 Available to backorder	[148] - Tank Seal From July �07	£6.98 £5.82
149	BE158.0.128 Available to backorder	[149] - Tank Adaptor From July �07	£36.38 £30.32
150	BE158/99922 Available to backorder	[150] - Rammer Top Cover - White White	£16.38 £13.65
150	BE158/99914 Available to backorder	[150] - Plastic Cover - Red Red	£16.38 £13.65
150	BE158/99913 Available to backorder	[150] - Plastic Cover - Yellow Yellow	£16.38 £13.65
150	BE158/99923 Available to backorder	[150] - Rammer Top Cover Green Green	£15.60 £13.00
150	BE158/99901 Available to backorder	[150] - Plastic Cover - Orange Orange	£119.56 £99.63
151	BE7/6039 Available to backorder	[151] - Screw	£0.48 £0.40
152	BE4/6016 Available to backorder	[152] - Washer	£4.88 £4.07
153	BE8/6022 Available to backorder	[153] - Nut	£5.28 £4.40
154	BE4/6007 Available to backorder	[154] - Washer M6	£0.48 £0.40
155	BE158/01000 Available to backorder	[155] - Rt 65 Rammer Rework Kit From July �07	£480.00 £400.00
160	BE158/99915 Available to backorder	[160] - Fuel Tap 3/16"	£54.32 £45.27
200	BE158.0.029 Available to backorder	[200] - Crank Case For Rt66/74	£1,128.00 £940.00
201	BE158.0.030 Available to backorder	[201] - Crank Case Cover	£209.16 £174.30
202	BE158.0.031 Available to backorder	[202] - Packing For Rt66/74	£20.62 £17.18
203	BE9/6017 Available to backorder	[203] - Bolt	£1.02 £0.85
204	BE05.1.004 Available to backorder	[204] - Spring Washer M6	£0.48 £0.40
205	BE05.0.002 Available to backorder	[205] - Washer M6 M6	£0.48 £0.40
206	BE158.0.032 Available to backorder	[206] - Shaft Cover	£103.02 £85.85
207	BE15.0.290 Available to backorder	[207] - O' Ring S39	£15.12 £12.60
213	BE05.8.058 Available to backorder	[213] - Snap Ring S25	£1.76 £1.47
214	BE158.0.033 Available to backorder	[214] - Crank Shaft	£453.60 £378.00
215	BE12.1.148 Available to backorder	[215] - Bearing 6207	£25.02 £20.85
216	BE12.1.151 Available to backorder	[216] - Bearing 6305Llu	£45.78 £38.15
217	BE05.8.060 Available to backorder	[217] - Snip Ring S62	£4.48 £3.73
218	BE158.0.034 Available to backorder	[218] - Pinion Shaft	£228.00 £190.00
219	BE12.1.150 Available to backorder	[219] - Bearing 6204Llu/4Llu	£17.64 £14.70
220	BE12.1.152 Available to backorder	[220] - Bearing 6907Llu	£42.68 £35.57
221	BE15.0.291 Available to backorder	[221] - Oil Seal Sc40588	£23.18 £19.32
222	BE06.3.110 Available to backorder	[222] - Key 5 x 5 x 20	£6.32 £5.27
223	BE158.0.035 Available to backorder	[223] - Connecting Rod	£161.36 £134.47
224	BE12.1.147 Available to backorder	[224] - Bearing 6204	£12.52 £10.43
225	BE05.8.059 Available to backorder	[225] - Snap Ring R47	£3.34 £2.78
226	BE05.8.057 Available to backorder	[226] - Snap Ring S20	£1.76 £1.47
301	BE158.0.036 Available to backorder	[301] - Piston Pin	£37.80 £31.50
302	BE05.8.056 Available to backorder	[302] - Snap Ring S16	£1.08 £0.90
303	BE158.0.037 Available to backorder	[303] - Guilding Cylinder	£900.00 £750.00
304	BE15.0.288 Available to backorder	[304] - O Ring G105	£4.62 £3.85
305	BE00.0.178 Available to backorder	[305] - Bolt M10 x 30	£1.28 £1.07
306	BE05.1.006 Available to backorder	[306] - Spring Washer M10	£0.48 £0.40
307	BE158.0.038 Available to backorder	[307] - Bellows - Orange For Rt50/65	£384.00 £320.00
307	BE158.0.121 Available to backorder	[307] - Rt65 Bellows - Red	£508.80 £424.00
308	BE158.0.040 Available to backorder	[308] - Bellows Stop Band For Rt50/66	£68.68 £57.23
309	BE158.0.039 Available to backorder	[309] - Spacer For Rt50/66/74	£12.00 £10.00
310	BE158.0.041 Available to backorder	[310] - Protector For Rt50/66	£376.80 £314.00
311	BE14.0.106 Available to backorder	[311] - Oil Plug For Rt50/66/74	£16.76 £13.97
312	BE158.0.042 Available to backorder	[312] - Rammer Spare	£2.06 £1.72
400	BE158.0.043 Available to backorder	[400] - Spring Cylinder	£639.60 £533.00
401	BE15.0.286 Available to backorder	[401] - O'Ring G80	£6.88 £5.73
402	BE158.0.099 Available to backorder	[402] - Ram Rod Complete - Rt50	£240.84 £200.70
406	BE158.0.046 Available to backorder	[406] - Guide Joint	£253.56 £211.30
407	BE06.1.020 Available to backorder	[407] - Spring Pin 6 x 45	£1.76 £1.47
408	BE19.0.092 Available to backorder	[408] - Spring Upper	£172.00 £143.33
409	BE19.0.093 Available to backorder	[409] - Spring Lower	£172.00 £143.33
410	BE158.0.105 Available to backorder	[410] - Foot Stand	£421.20 £351.00
411	BE158.0.106 Available to backorder	[411] - Drain Plug M12	£4.52 £3.77
412	BE158.0.109 Available to backorder	[412] - Packing	£3.88 £3.23
413	BE07.0.055 Available to backorder	[413] - Socket Headbolt M10 x 40 10.9T	£0.80 £0.67
414	BE07.0.003 Available to backorder	[414] - Socket Headbolt M10 x 25 10.9T	£0.62 £0.52
416	BE05.3.072 Available to backorder	[416] - Coned Disc Washer M10 M10	£4.64 £3.87
417	BE158.0.048 Available to backorder	[417] - 280mm Rammer Foot For Rt66	£334.56 £278.80
417	BE158.0.052 Available to backorder	[417] - 250mm Rammer Foot Rt50 / Rt65	£343.20 £286.00
417	BE158.0.131 Available to backorder	[417] - 170mm Steel Shoe - Universal	£188.08 £156.73
418	BE00.5.061 Available to backorder	[418] - Square Flat Head Bolt M12x69 Now Use 9/12041	£13.56 £11.30
419	BE00.5.062 Available to backorder	[419] - Square Flat Hd Bolt M12 x 75	£17.23 £14.36
420	BE4/1216 Available to backorder	[420] - Washer	£1.12 £0.93
421	BE8/12006 Available to backorder	[421] - Nut	£0.48 £0.40
422	BE4/12004 Available to backorder	[422] - Washer M12	£0.48 £0.40
600	BE158.0.008 Available to backorder	[600] - Roller Complete	£94.00 £78.33
601	BE7/6003 Available to backorder	[601] - Screw	£0.48 £0.40
602	BE8/6017 Available to backorder	[602] - Nut	£0.80 £0.67
603	BE158/99919 Available to backorder	[603] - Lower Cast Handle	£155.60 £129.67
604	BE158/00706 Available to backorder	[604] - Washer	£1.26 £1.05
