Belle RPX 59 - Pump Assembly

Part No. RPX59Pump-group
Belle RPX 59 - Pump Assembly
Belle RPX 59 - Pump Assembly

Description

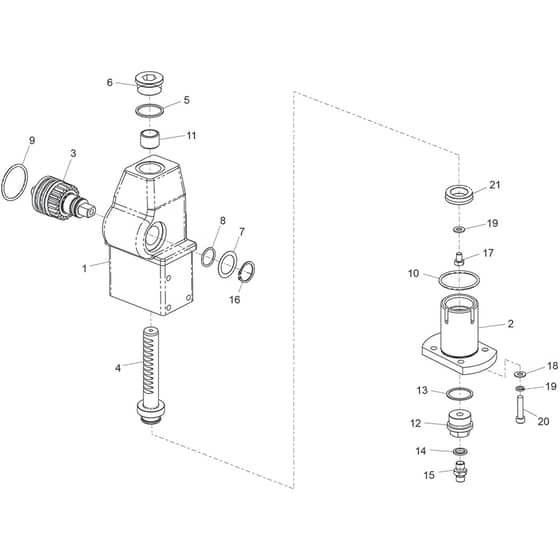

Belle RPX 59 - Pump Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Machined Control Pump Large
[1] - Machined Control Pump Large
BE161/99642
Available to backorder
[1] - Machined Control Pump Large
£778.75 £648.96

  2 [2] - Piston Guide
[2] - Piston Guide
BE161/99639
Available to backorder
[2] - Piston Guide
£393.74 £328.12

  3 [3] - Shaft Pinion
[3] - Shaft Pinion
BE161/99549
Available to backorder
[3] - Shaft Pinion
£338.10 £281.75

  4 [4] - Piston Rack
[4] - Piston Rack
BE161/99638
Available to backorder
[4] - Piston Rack
£414.30 £345.25

  5 [5] - Gasket 36 x 42 x 2 Al Din7603
[5] - Gasket 36 x 42 x 2 Al Din7603
BE161.0.158
Available to backorder
[5] - Gasket 36 x 42 x 2 Al Din7603
£7.61 £6.34

  6 [6] - Plug - Din 908 5.8 M36 x 1.5
[6] - Plug - Din 908 5.8 M36 x 1.5
BE03.0.031
Available to backorder
[6] - Plug - Din 908 5.8 M36 x 1.5
£49.99 £41.66

  7 [7] - Shim 30 x 42 x 0.5
[7] - Shim 30 x 42 x 0.5
BE161/99548
Available to backorder
[7] - Shim 30 x 42 x 0.5
£11.66 £9.72

  8 [8] - O-Ring 25 Id x 2.62
[8] - O-Ring 25 Id x 2.62
BE5/0059
Available to backorder
[8] - O-Ring 25 Id x 2.62
£0.71 £0.59

  9 [9] - O-Ring 50.5 Id x 3.53
[9] - O-Ring 50.5 Id x 3.53
BE5/0058
Available to backorder
[9] - O-Ring 50.5 Id x 3.53
£1.12 £0.93

  10 [10] - O-Ring 54.5 Id x 3.53
[10] - O-Ring 54.5 Id x 3.53
BE5/0060
Available to backorder
[10] - O-Ring 54.5 Id x 3.53
£1.24 £1.03

  11 [11] - Bush 28 x 22 x 20
[11] - Bush 28 x 22 x 20
BE50/000066
Available to backorder
[11] - Bush 28 x 22 x 20
£17.29 £14.41

  12 [12] - Plug M33 x 2.0 Special
[12] - Plug M33 x 2.0 Special
BE161/99546
Available to backorder
[12] - Plug M33 x 2.0 Special
£53.80 £44.83

  13 [13] - Washer
[13] - Washer
BE4/3301
Available to backorder
[13] - Washer
£4.78 £3.98

  14 [14] - Washer Now Use 5/0011
[14] - Washer Now Use 5/0011
BE5/0011
Available to backorder
[14] - Washer Now Use 5/0011
£1.26 £1.05

  15 [15] - Adaptor - Hydraulic 1/4
[15] - Adaptor - Hydraulic 1/4
BE14.0.533
Available to backorder
[15] - Adaptor - Hydraulic 1/4" x 1/4
£8.36 £6.97

  16 [16] - Circlip 30 x 1.5
[16] - Circlip 30 x 1.5
BE3/9013
Available to backorder
[16] - Circlip 30 x 1.5
£1.08 £0.90

  17 [17] - Screw
[17] - Screw
BE7/8004
Available to backorder
[17] - Screw
£0.48 £0.40

  18 [18] - Washer M8
[18] - Washer M8
BE4/8006
Available to backorder
[18] - Washer M8
£0.48 £0.40

  19 [19] - Washer M8
[19] - Washer M8
BE4/8003
Available to backorder
[19] - Washer M8
£0.71 £0.59

  20 [20] - Capscrew M8 x 30 Sckt Hd Bzp
[20] - Capscrew M8 x 30 Sckt Hd Bzp
BE07.0.028
Available to backorder
[20] - Capscrew M8 x 30 Sckt Hd Bzp
£0.58 £0.48

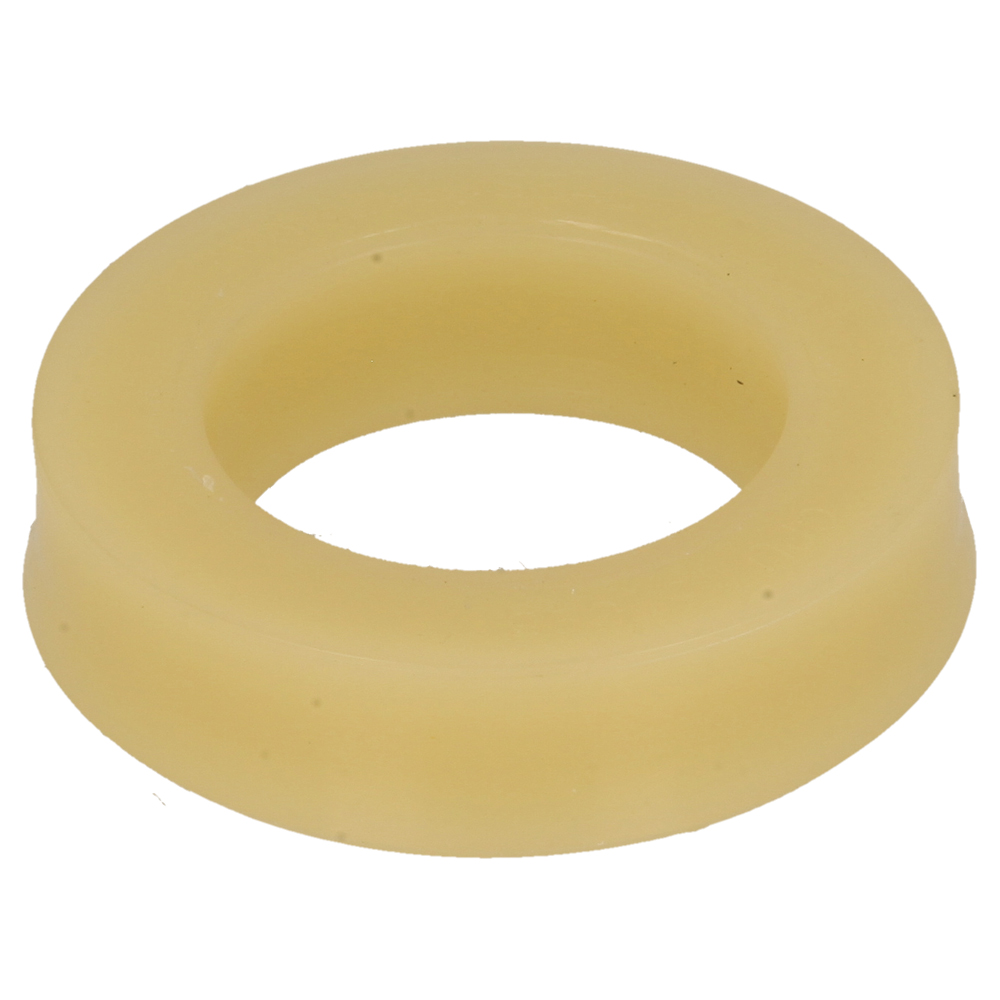

  21 [21] - Seal Oil-Head
[21] - Seal Oil-Head
BE5/0064
Available to backorder
[21] - Seal Oil-Head
£12.40 £10.33


Description

Belle RPX 59 - Pump Assembly - Parts Diagram
