Belle RPX 59 - Petrol Engine & Drive Kit

Name: Belle RPX 59 - Petrol Engine & Drive Kit
SKU: RPX59PetrolEngineDriveKit-group
Price: 0.4 GBP
Availability: InStock

Part No. RPX59PetrolEngineDriveKit-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle RPX 59 - Petrol Engine & Drive Kit

Description

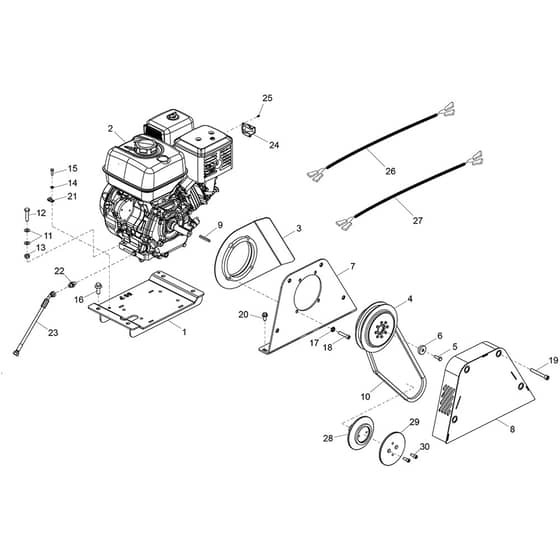

Belle RPX 59 - Petrol Engine & Drive Kit - Parts Diagram

	Part No.	Details
1	BE161/34900 Available to backorder	[1] - Gx390 Engine Deck Wa	£143.28 £119.40
2	BE20/0107 Available to backorder	[2] - Honda Gx390 Ut2 Qxc4	£1,396.22 £1,163.52
3	BE161/33600 Available to backorder	[3] - Heat Sheild	£171.60 £143.00
4	BE21/0439 Available to backorder	[4] - Clutch - Rpc60 Honda	£1,186.80 £989.00
5	BE7/3813 Available to backorder	[5] - Screw	£1.09 £0.91
6	BE161/99888 Available to backorder	[6] - Washer - Clutch Spigot	£14.26 £11.88
7	BE161/33500 Available to backorder	[7] - Back Plate Wa	£114.00 £95.00
8	BE161/33400 Available to backorder	[8] - Cover	£247.92 £206.60
9	BE06.8.018 Available to backorder	[9] - Key 1/4" x 1/4" x 2"	£6.95 £5.79
10	BE21/0170 Available to backorder	[10] - Belt V - ( Bx45 )	£31.32 £26.10
11	BE4/1005 Available to backorder	[11] - Washer M10	£0.48 £0.40
12	BE9/10005 Available to backorder	[12] - Bolt	£0.62 £0.52
13	BE8/10006 Available to backorder	[13] - Nut	£0.48 £0.40
14	BE4/6001 Available to backorder	[14] - Washer M6	£0.48 £0.40
15	BE7/6037 Available to backorder	[15] - Screw	£1.39 £1.16
16	BE7/12034 Available to backorder	[16] - Screw	£3.58 £2.98
17	BE05.3.067 Available to backorder	[17] - Washer M10	£2.63 £2.19
18	BE7/3818 Available to backorder	[18] - Screw	£5.05 £4.21
19	BE71.0.067 Available to backorder	[19] - Screw	£240.96 £200.80
20	BE7/10039 Available to backorder	[20] - Screw	£1.08 £0.90
21	BE3/7055 Available to backorder	[21] - P-Clip 6mm x M6 Hole	£9.19 £7.66
22	BE6/0218 Available to backorder	[22] - M12 To 1/4" Adaptor	£62.88 £52.40
23	BE30/0091 Available to backorder	[23] - Hose 1/4" x 360mm	£40.74 £33.95
24	BE21/0236 Available to backorder	[24] - Exhaust Deflector	£9.07 £7.56
25	BE21.0.140 Available to backorder	[25] - Screw Pan Head Pozi-Drive 5/16	£0.48 £0.40
26	BE71/0301 Available to backorder	[26] - Harness - Power Pack	£8.03 £6.69
27	BE71/0335 Available to backorder	[27] - Harness Ext (Honda)	£17.06 £14.22
28	BE161/99763 Available to backorder	[28] - Pulley Back	£310.08 £258.40
29	BE161/99764 Available to backorder	[29] - Pulley Front	£135.24 £112.70
30	BE7/8077 Available to backorder	[30] - Screw	£0.48 £0.40
