Belle RPX 59 - Gearbox Assembly 2

Name: Belle RPX 59 - Gearbox Assembly 2
SKU: RPX59Gearbox2-group
Price: 0.31 GBP
Availability: InStock

Part No. RPX59Gearbox2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

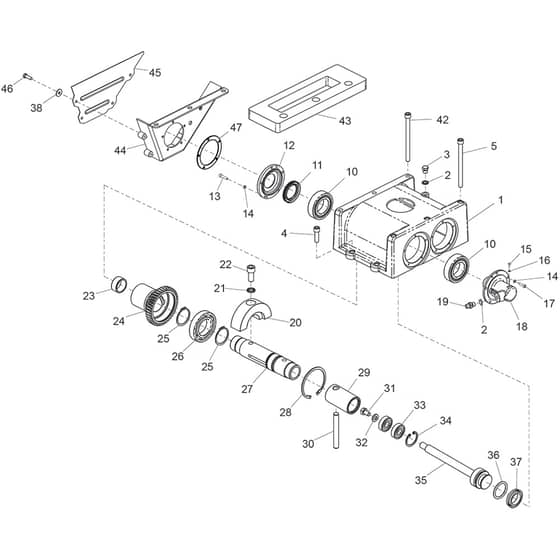

Belle RPX 59 - Gearbox Assembly 2 - Parts Diagram

	Part No.	Details
1	BE161/99527 Available to backorder	[1] - Gearbox Machined 35 + 55	£943.49 £786.24
2	BE5/0011 Available to backorder	[2] - Washer Now Use 5/0011	£1.26 £1.05
3	BE14.0.108 Available to backorder	[3] - 1/4" Bsp Coned Plug	£2.34 £1.95
4	BE7/12010 Available to backorder	[4] - Screw	£1.31 £1.09
5	BE7/12021 Available to backorder	[5] - Screw	£8.89 £7.41
9	BE4/8003 Available to backorder	[9] - Washer M8	£0.71 £0.59
10	BE53/0017 Available to backorder	[10] - Bearing Roller	£85.68 £71.40
11	BE5/0056 Available to backorder	[11] - Oil Seal - Shaft	£20.63 £17.19
12	BE161/99525 Available to backorder	[12] - Cap End - Pulley	£100.92 £84.10
13	BE7/6042 Available to backorder	[13] - Screw	£0.37 £0.31
14	BE4/6005 Available to backorder	[14] - Washer M6	£0.48 £0.40
15	BE7/4004 Available to backorder	[15] - Screw	£0.48 £0.40
16	BE4/4004 Available to backorder	[16] - Washer M4	£1.32 £1.10
17	BE7/6040 Available to backorder	[17] - Screw	£0.48 £0.40
18	BE161/99531 Available to backorder	[18] - Endcap Plunger	£336.48 £280.40
19	BE14.0.533 Available to backorder	[19] - Adaptor - Hydraulic 1/4" x 1/4	£8.36 £6.97
20	BE161/99653 Available to backorder	[20] - Vibrator Weight 2	£136.80 £114.00
21	BE05.3.069 Available to backorder	[21] - Washer M16	£6.97 £5.81
22	BE7/16006 Available to backorder	[22] - Screw	£2.81 £2.34
23	BE50/000065 Available to backorder	[23] - Sleeve Bearing	£23.46 £19.55
24	BE161/99906 Available to backorder	[24] - Rpx59 Phasing Gear	£583.20 £486.00
25	BE3/9009 Available to backorder	[25] - Circlip 55 x 2.0	£3.11 £2.59
26	BE53/0018 Available to backorder	[26] - Bearing Ball	£50.81 £42.34
27	BE161/99526 Available to backorder	[27] - Vibrator Shaft 2	£587.52 £489.60
28	BE3/9010 Available to backorder	[28] - Circlip 100 x 3.0	£7.09 £5.91
29	BE161/99540 Available to backorder	[29] - Piston Plunger	£69.48 £57.90
30	BE161/99533 Available to backorder	[30] - Dowel Pin Piston	£5.98 £4.98
31	BE7/6011 Available to backorder	[31] - Screw	£0.48 £0.40
32	BE4/6001 Available to backorder	[32] - Washer M6	£0.48 £0.40
33	BE53/0019 Available to backorder	[33] - Bearing Ball	£6.37 £5.31
34	BE3/9011 Available to backorder	[34] - Circlip 24 x 1.2	£1.08 £0.90
35	BE161/99539 Available to backorder	[35] - Piston Rod	£113.64 £94.70
36	BE5/0057 Available to backorder	[36] - O-Ring 30 Od x 3.0	£0.71 £0.59
37	BE5/0055 Available to backorder	[37] - Oil Seal - Piston Rod	£2.44 £2.03
38	BE4/8004 Available to backorder	[38] - Washer	£0.48 £0.40
39	BE7/10005 Available to backorder	[39] - Screw	£0.43 £0.36
40	BE4/1003 Available to backorder	[40] - Washer M10	£0.48 £0.40
41	BE4/1005 Available to backorder	[41] - Washer M10	£0.48 £0.40
42	BE7/14014 Available to backorder	[42] - Screw	£10.28 £8.57
43	BE161/99894 Available to backorder	[43] - Seal - Stone Guard	£120.48 £100.40
44	BE161/26800 Available to backorder	[44] - Belt Guard Wa	£231.84 £193.20
45	BE161/99758 Available to backorder	[45] - Pressing Cover Belt Guard	£25.26 £21.05
46	BE7/8037 Available to backorder	[46] - Screw	£0.48 £0.40
47	BE161/99818 Available to backorder	[47] - Spacer - Belt Guard (2mm)	£16.82 £14.02
