Belle RPX 35 - Controls (Diesel Electric Only)

Belle RPX 35 - Controls (Diesel Electric Only)

Description

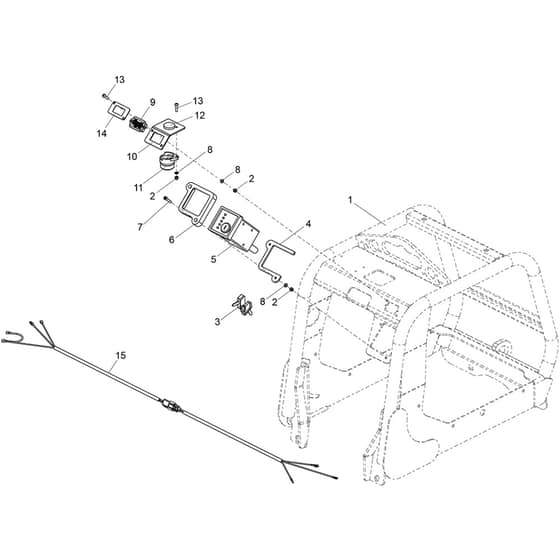

Belle RPX 35 - Controls (Diesel Electric Only) - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		BE161/31000 Available to backorder	[1] - Rpx35 - Frame W.A.		£564.00 £470.00
	2		BE8/5003 Available to backorder	[2] - Nut		£0.48 £0.40
	3		BE21.0.229 Available to backorder	[3] - Key Ignition		£1.38 £1.15
	4		BE161/99836 Available to backorder	[4] - Ignition Switch Fork		£5.38 £4.48
	5		BE01911601 Available to backorder	[5] - Ignition Box C/W Key Now Use - 01911601		£951.60 £793.00
	6		BE161/99835 Available to backorder	[6] - Ignition Clamp		£48.86 £40.72
	7		BE7/5021 Available to backorder	[7] - Screw		£0.48 £0.40
	8		BE4/5002 Available to backorder	[8] - Washer M5		£2.42 £2.02
	9		BE100/02400 Available to backorder	[9] - Hour Meter		£197.04 £164.20
	11		BE70/0267 Available to backorder	[11] - Buzzer 12V Continuous		£49.02 £40.85
	12		BE3/4081 Available to backorder	[12] - Cap Foam Self Adh 30mm		£8.32 £6.93
	13		BE7/5027 Available to backorder	[13] - Screw		£0.48 £0.40
	14		BE161/99881 Available to backorder	[14] - Plate - Hr Meter		£2.52 £2.10
	15		BE71/0314 Available to backorder	[15] - Harness Hour Meter Rpx35		£27.48 £22.90

Description

Belle RPX 35 - Controls (Diesel Electric Only) - Parts Diagram
