Belle RPC 60 - Baseplate Assembly - Hatz (Up To 11th June 2007)

Part No. RPC60BaseplateHatzUpTo11thJune2007-group
Belle RPC 60 - Baseplate Assembly - Hatz (Up To 11th June 2007)
Belle RPC 60 - Baseplate Assembly - Hatz (Up To 11th June 2007)

Description

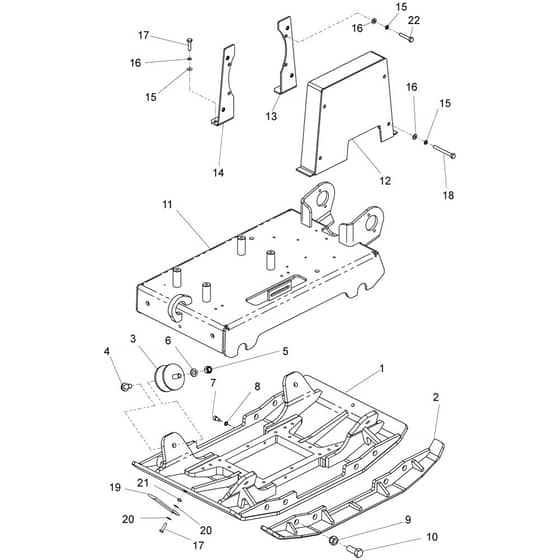

Belle RPC 60 - Baseplate Assembly - Hatz (Up To 11th June 2007) - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Baseplate Rpc60 M/C Up To 022107
[1] - Baseplate Rpc60 M/C Up To 022107
BE161/06200
Available to backorder
[1] - Baseplate Rpc60 M/C Up To 022107
£2,072.45 £1,727.04

  1 [1] - 60/80 Baseplate M/C From 022108
[1] - 60/80 Baseplate M/C From 022108
BE161/11000
Available to backorder
[1] - 60/80 Baseplate M/C From 022108
£2,254.46 £1,878.72

  2 [2] - Extension 125mm M/C - Rpc 60 125mm
[2] - Extension 125mm M/C - Rpc 60 125mm
BE161/06500
Available to backorder
[2] - Extension 125mm M/C - Rpc 60 125mm
£459.23 £382.69

  2 [2] - Extension 75mm M/C Rpc60 75mm
[2] - Extension 75mm M/C Rpc60 75mm
BE161/06300
Available to backorder
[2] - Extension 75mm M/C Rpc60 75mm
£399.52 £332.93

  3 [3] - Anti-Vibration Mount
[3] - Anti-Vibration Mount
BE21/0139
Available to backorder
[3] - Anti-Vibration Mount
£94.20 £78.50

  4 [4] - Bolt
[4] - Bolt
BE9/16008
Available to backorder
[4] - Bolt
£13.61 £11.34

  5 [5] - Nut
[5] - Nut
BE8/16005
Available to backorder
[5] - Nut
£2.51 £2.09

  6 [6] - Washer M16
[6] - Washer M16
BE4/1601
Available to backorder
[6] - Washer M16
£0.48 £0.40

  7 [7] - Screw
[7] - Screw
BE7/10018
Available to backorder
[7] - Screw
£0.86 £0.72

  8 [8] - Washer M10
[8] - Washer M10
BE4/1008
Available to backorder
[8] - Washer M10
£2.23 £1.86

  9 [9] - Nut
[9] - Nut
BE8/20003
Available to backorder
[9] - Nut
£2.14 £1.78

  10 [10] - Bolt
[10] - Bolt
BE9/20002
Available to backorder
[10] - Bolt
£2.69 £2.24

  11 [11] - Bedplate Wa Rpc60
[11] - Bedplate Wa Rpc60
BE161/04600
Available to backorder
[11] - Bedplate Wa Rpc60
£1,694.59 £1,412.16

  12 [12] - Belt Cover Wa
[12] - Belt Cover Wa
BE161/05500
Available to backorder
[12] - Belt Cover Wa
£316.56 £263.80

  14 [14] - Engine Backplate Wa
[14] - Engine Backplate Wa
BE161/25500
Available to backorder
[14] - Engine Backplate Wa
£98.16 £81.80

  15 [15] - Washer M10
[15] - Washer M10
BE4/1003
Available to backorder
[15] - Washer M10
£0.48 £0.40

  16 [16] - Washer M10
[16] - Washer M10
BE4/1005
Available to backorder
[16] - Washer M10
£0.48 £0.40

  17 [17] - Screw
[17] - Screw
BE7/10009
Available to backorder
[17] - Screw
£0.64 £0.53

  18 [18] - Bolt M10 x 100 Ht Bzp
[18] - Bolt M10 x 100 Ht Bzp
BE00.0.043
Available to backorder
[18] - Bolt M10 x 100 Ht Bzp
£0.91 £0.76

  19 [19] - Strap Hold Down
[19] - Strap Hold Down
BE161/99595
Available to backorder
[19] - Strap Hold Down
£109.08 £90.90

  20 [20] - Washer M10
[20] - Washer M10
BE4/1004
Available to backorder
[20] - Washer M10
£0.48 £0.40

  21 [21] - Nut
[21] - Nut
BE8/10006
Available to backorder
[21] - Nut
£0.48 £0.40

  22 [22] - Screw
[22] - Screw
BE7/10005
Available to backorder
[22] - Screw
£0.43 £0.36


Description

Belle RPC 60 - Baseplate Assembly - Hatz (Up To 11th June 2007) - Parts Diagram
