Belle RPC 30 - Handle Assembly

Name: Belle RPC 30 - Handle Assembly
SKU: RPC30Handle-group
Price: 0.33 GBP
Availability: InStock

Part No. RPC30Handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

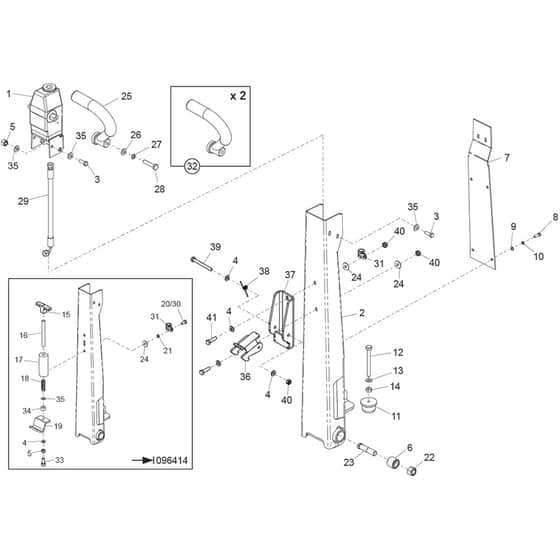

Belle RPC 30 - Handle Assembly - Parts Diagram

	Part No.	Details
1	BE161.3.046SP Available to backorder	[1] - Pump Assy Rpc 25 + 30	£908.93 £757.44
2	BE161.0.248 Available to backorder	[2] - Handle Body Wa Rpc 25/35	£315.37 £262.81
3	BE7/8012 Available to backorder	[3] - Screw	£0.48 £0.40
6	BE21.0.187 Available to backorder	[6] - Anti Vibration Bush	£13.72 £11.43
7	BE161.0.247 Available to backorder	[7] - Plate Cover Handle Rpc 25/35	£61.08 £50.90
8	BE02.0.014 Available to backorder	[8] - Setscrew M6 x 20 Ht Bzp	£0.48 £0.40
9	BE4/6001 Available to backorder	[9] - Washer M6	£0.48 £0.40
10	BE4/6005 Available to backorder	[10] - Washer M6	£0.48 £0.40
11	BE21.0.333 Available to backorder	[11] - Handle Buffer For Rpc 25/35	£74.76 £62.30
12	BE02.0.089 Available to backorder	[12] - Setscrew M10 x 100 Ht Bzp	£1.16 £0.97
14	BE8/10003 Available to backorder	[14] - Nut	£0.48 £0.40
15	BE19.0.843 Available to backorder	[15] - T-Handle Large M8	£11.44 £9.53
16	BE161/99806 Available to backorder	[16] - Bar Latch From 093554	£14.89 £12.41
17	BE161.0.240 Available to backorder	[17] - Body Latch - Rpc 25	£38.65 £32.21
18	BE19.0.095 Available to backorder	[18] - Comp Spring 102T1250L	£7.57 £6.31
19	BE161.0.238 Available to backorder	[19] - Spring Latch Rpc25 From 093554	£8.96 £7.47
19	BE161/27300 Available to backorder	[19] - Kit Rpc Latch Spares Up To 093553	£133.32 £111.10
20	BE7/8008 Available to backorder	[20] - Screw	£0.48 £0.40
21	BE4/8003 Available to backorder	[21] - Washer M8	£0.71 £0.59
22	BE8/16005 Available to backorder	[22] - Nut	£2.51 £2.09
23	BE9/16010 Available to backorder	[23] - Bolt	£1.88 £1.57
24	BE4/8004 Available to backorder	[24] - Washer	£0.48 £0.40
25	BE161/99658 Available to backorder	[25] - Handle Foamed Assy	£102.48 £85.40
26	BE9/10007 Available to backorder	[26] - Bolt	£0.62 £0.52
27	BE4/1005 Available to backorder	[27] - Washer M10	£0.48 £0.40
28	BE4/1003 Available to backorder	[28] - Washer M10	£0.48 £0.40
29	BE30/0079 Available to backorder	[29] - Hose Hydraulic	£72.72 £60.60
30	BE02.0.086 Available to backorder	[30] - Setscrew M8 x 12	£0.40 £0.33
31	BE3/7012 Available to backorder	[31] - Clip P Type 016	£4.16 £3.47
32	BE161/07700 Available to backorder	[32] - Rpc Grey Handle Set	£189.60 £158.00
33	BE7/8032 Available to backorder	[33] - Screw From 093554	£0.43 £0.36
33	BE161/28200 Available to backorder	[33] - Kit - Rpc 30 Latch Upgrade Up To 093553	£179.40 £149.50
34	BE161/99805 Available to backorder	[34] - Boss Spacer Nominal	£5.23 £4.36
35	BE4/8006 Available to backorder	[35] - Washer M8	£0.48 £0.40
36	BE161/99817 Available to backorder	[36] - Pressing - Latch	£16.82 £14.02
37	BE161/28100GR Available to backorder	[37] - W.A. - Latch Bracket Gr	£52.39 £43.66
38	BE2/0074 Available to backorder	[38] - Spring - Torsion 180�	£11.59 £9.66
39	BE9/8027 Available to backorder	[39] - Bolt	£0.80 £0.67
40	BE8/8008 Available to backorder	[40] - Nut	£0.48 £0.40
41	BE7/8009 Available to backorder	[41] - Screw	£0.48 £0.40
