Belle RPC 30 - Gearbox Assembly

Name: Belle RPC 30 - Gearbox Assembly
SKU: RPC30Gearbox-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

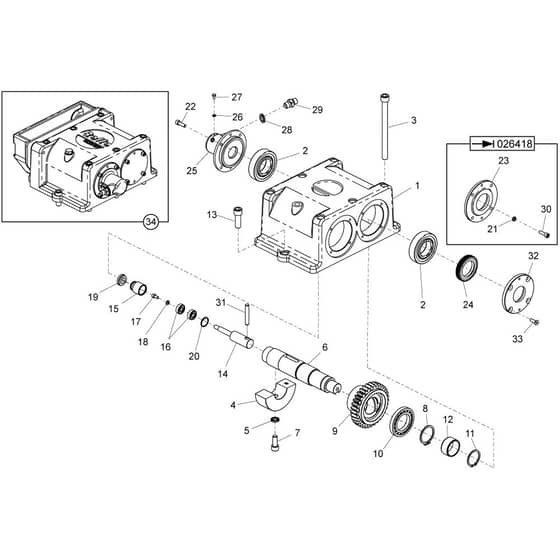

Belle RPC 30 - Gearbox Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	BE12.1.160 Available to backorder	[2] - Bearing	£45.52 £37.93
3	BE10-330-12130 Available to backorder	[3] - Cap Screw M12 x 130 Long. From 013551 Now Use 9/12024	£2.41 £2.01
3	BE7/12024 Available to backorder	[3] - Screw Up To 013550	£5.56 £4.63
4	BE161/99700 Available to backorder	[4] - Vibrator Weight 1	£53.86 £44.88
4	BE161/99699 Available to backorder	[4] - Vibrator Weight 2	£51.32 £42.77
5	BE05.3.067 Available to backorder	[5] - Washer M10	£2.54 £2.12
6	BE161/99508 Available to backorder	[6] - Vibrator Shaft 1	£270.48 £225.40
7	BE7/10023 Available to backorder	[7] - Screw	£1.28 £1.07
8	BE3/9006 Available to backorder	[8] - Circlip 40 x 1.75	£1.32 £1.10
9	BE161/99511 Available to backorder	[9] - Gear 1 33T Hel Small	£639.60 £533.00
10	BE53/0015 Available to backorder	[10] - Bearing Ball 16008	£21.56 £17.97
11	BE3/9007 Available to backorder	[11] - Circlip 35 x 1.5	£1.04 £0.87
12	BE50/000064 Available to backorder	[12] - Sleeve Bearing	£20.32 £16.93
13	BE7/12023 Available to backorder	[13] - Screw	£1.26 £1.05
14	BE161/99501 Available to backorder	[14] - Piston Rod	£20.44 £17.03
15	BE161/99502 Available to backorder	[15] - Piston Plunger	£19.82 £16.52
16	BE53/0014 Available to backorder	[16] - Bearing Ball	£32.78 £27.32
17	BE7/5020 Available to backorder	[17] - Screw	£0.48 £0.40
18	BE4/5002 Available to backorder	[18] - Washer M5	£2.42 £2.02

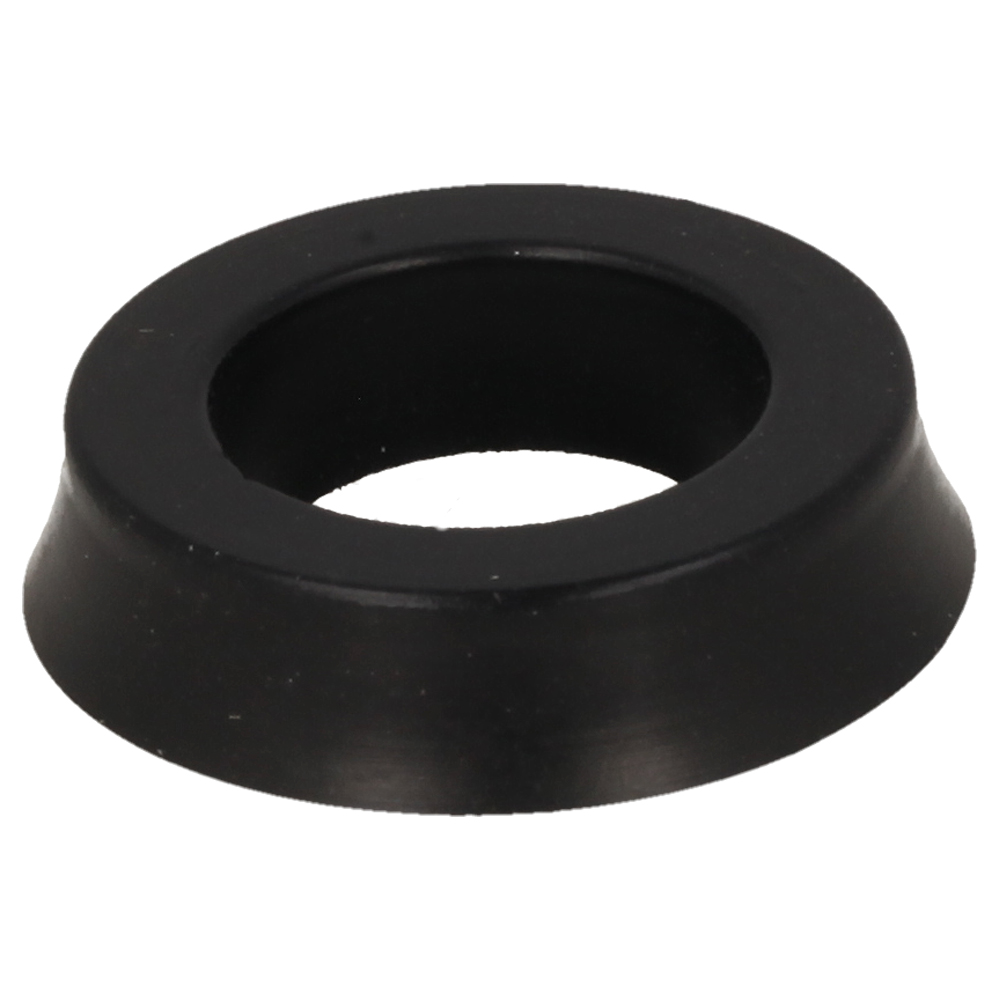

19	BE5/0053 Available to backorder	[19] - Oil Seal - Piston Rod	£2.48 £2.07
20	BE3/9005 Available to backorder	[20] - Circlip 22 x 1	£0.48 £0.40
21	BE05.1.004 Available to backorder	[21] - Spring Washer M6	£0.48 £0.40
22	BE7/6003 Available to backorder	[22] - Screw	£0.48 £0.40
23	BE161/99522 Available to backorder	[23] - Gear 1 41T Hel Large	£391.20 £326.00
24	BE5/0054 Available to backorder	[24] - Oil Seal - Shaft	£21.96 £18.30
25	BE161/99506 Available to backorder	[25] - Cap End - Plunger Machined	£276.36 £230.30
26	BE4/4004 Available to backorder	[26] - Washer M4	£1.28 £1.07
27	BE7/4004 Available to backorder	[27] - Screw	£0.48 £0.40
28	BE5/0011 Available to backorder	[28] - Seal Bonded 1/4" Bsp	£1.34 £1.12
29	BE14.0.533 Available to backorder	[29] - Adaptor - Hydraulic 1/4" x 1/4	£8.08 £6.73
30	BE7/6013 Available to backorder	[30] - Screw	£0.48 £0.40
31	BE161/99503 Available to backorder	[31] - Dowel Pin Piston	£1.96 £1.63
32	BE161/99679 Available to backorder	[32] - End Cap - Pulley	£73.96 £61.63
33	BE7/6025 Available to backorder	[33] - Screw	£0.48 £0.40
34	BE161.3.060SP Available to backorder	[34] - Gearbox Rpc30	£2,695.20 £2,246.00
