Belle Ranger 450 - Frame Assembly

Name: Belle Ranger 450 - Frame Assembly
SKU: Ranger450Frame-group
Price: 0.36 GBP
Availability: InStock

Part No. Ranger450Frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

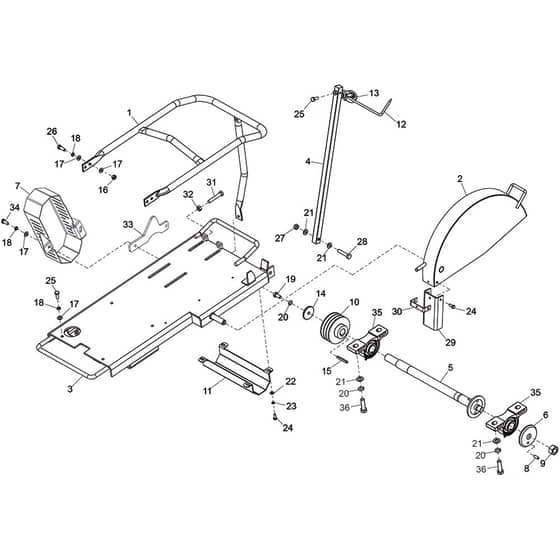

Belle Ranger 450 - Frame Assembly - Parts Diagram

	Part No.	Details
1	BE966/00800 Available to backorder	[1] - Tube Frame	£304.92 £254.10
2	BE966/01300 Available to backorder	[2] - Blade Cover Assembly	£348.06 £290.05
3	BE966/00100 Available to backorder	[3] - Bed Assembly Wa	£1,011.46 £842.88

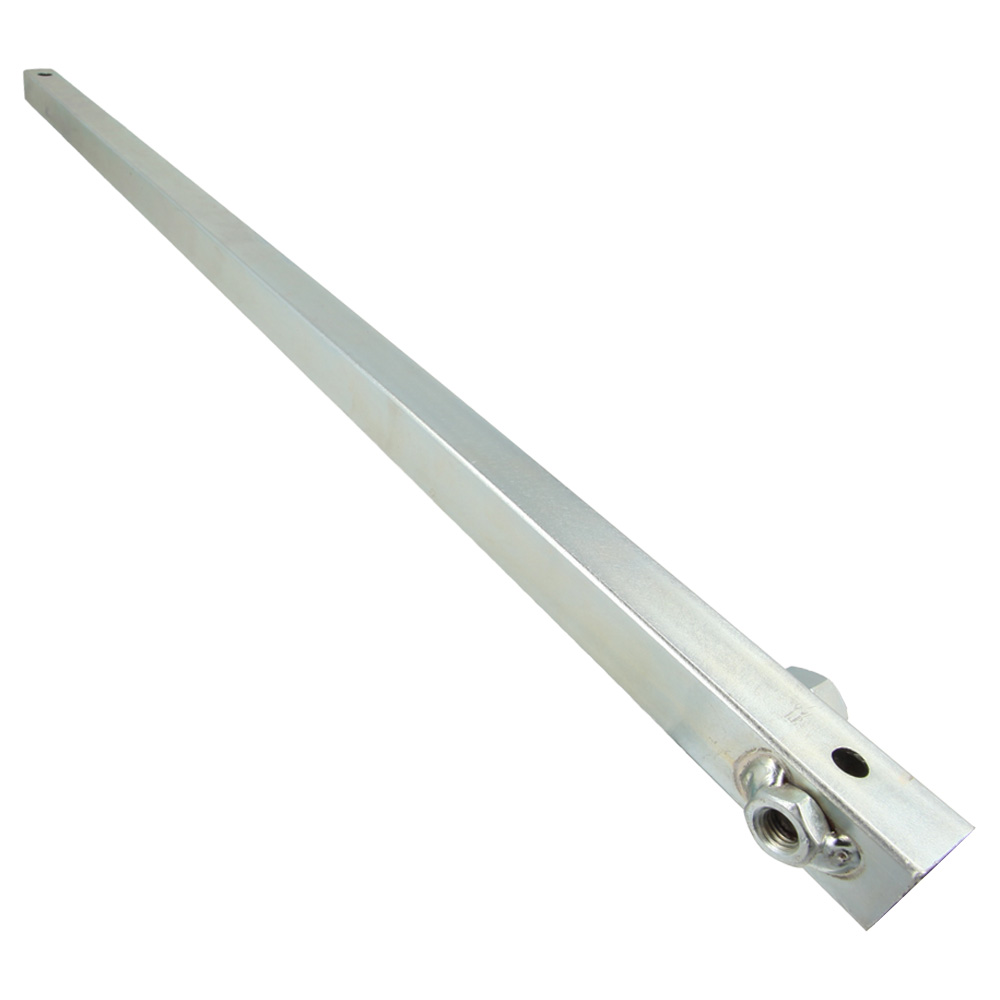

4	BE966/01700 Available to backorder	[4] - Guide Bar	£67.20 £56.00
5	BE966/01800 Available to backorder	[5] - Arbor Shaft Wa	£187.08 £155.90
6	BE966/99905 Available to backorder	[6] - Blade Clamp Plate	£31.43 £26.19
7	BE966/01500 Available to backorder	[7] - Belt Guard - Lombardini Honda From 094050	£269.76 £224.80
7	BE966/00900 Available to backorder	[7] - Belt Guard Honda Up To 094049	£188.52 £157.10
8	BE71.0.088 Available to backorder	[8] - Blade Pin	£17.40 £14.50
9	BE966/99904 Available to backorder	[9] - Arbor Nut	£46.91 £39.09
10	BE966/99916 Available to backorder	[10] - Cast Bottom Pulley	£126.72 £105.60
11	BE966/99918 Available to backorder	[11] - Arbor Shaft Guard	£63.36 £52.80

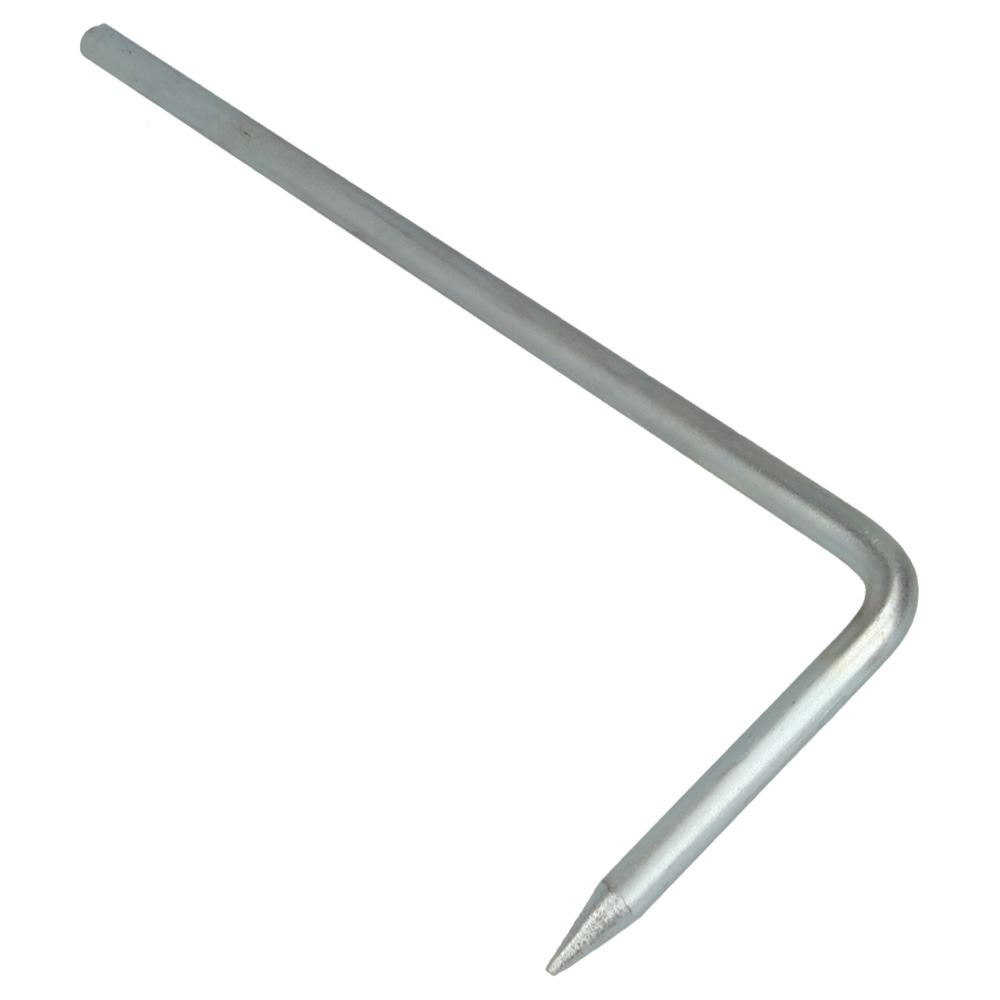

12	BE966/99928 Available to backorder	[12] - Guide Needle	£9.86 £8.22

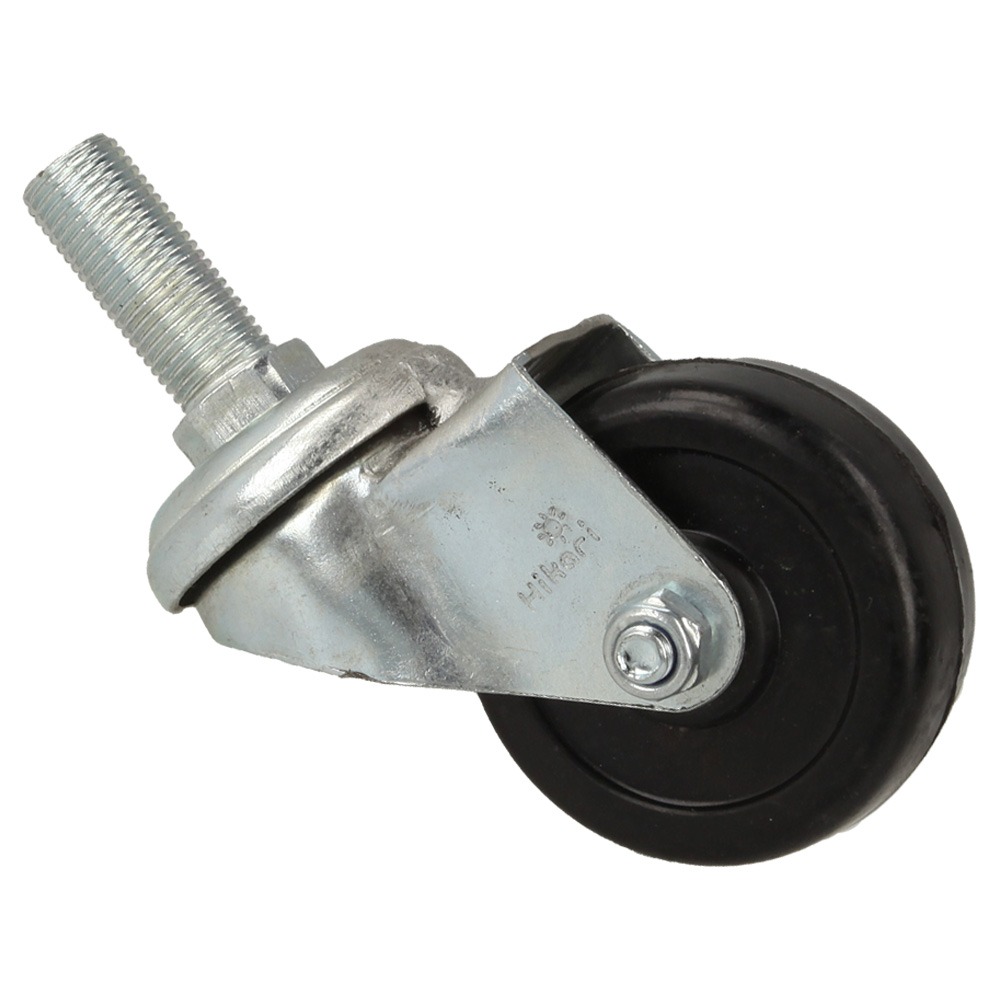

13	BE966/99930 Available to backorder	[13] - Jockey Wheel	£8.65 £7.21
14	BE966/99935 Available to backorder	[14] - Bottom Pulley Washer	£12.80 £10.67
16	BE8/10006 Available to backorder	[16] - Nut	£0.48 £0.40
17	BE4/1005 Available to backorder	[17] - Washer M10	£0.48 £0.40
18	BE4/1003 Available to backorder	[18] - Washer M10	£0.48 £0.40
19	BE9/12003 Available to backorder	[19] - Bolt	£0.56 £0.47
20	BE4/1202 Available to backorder	[20] - Washer M12	£0.48 £0.40
21	BE4/1204 Available to backorder	[21] - Washer M12	£0.48 £0.40
22	BE4/8006 Available to backorder	[22] - Washer M8	£0.48 £0.40
23	BE4/8003 Available to backorder	[23] - Washer M8	£0.71 £0.59
24	BE9/8012 Available to backorder	[24] - Bolt	£0.48 £0.40
25	BE7/10005 Available to backorder	[25] - Screw	£0.43 £0.36
26	BE7/10010 Available to backorder	[26] - Screw	£0.43 £0.36
27	BE8/12006 Available to backorder	[27] - Nut	£0.48 £0.40
28	BE9/12010 Available to backorder	[28] - Bolt	£1.24 £1.03
29	BE966/99949 Available to backorder	[29] - Blade Guard Rubber Flap	£29.86 £24.88
30	BE966/99950 Available to backorder	[30] - Rubber Flap Clamping Brkt	£17.74 £14.78
31	BE7/12028 Available to backorder	[31] - Screw	£1.74 £1.45
32	BE8/12002 Available to backorder	[32] - Nut	£0.48 £0.40
33	BE966/99955 Available to backorder	[33] - Plate Guard Spacer Honda From 094050	£18.43 £15.36
34	BE9/10004 Available to backorder	[34] - Bolt	£0.43 £0.36
35	BE966/99907 Available to backorder	[35] - 35mm I/D Housed Pillow Bearing	£49.43 £41.19
36	BE9/12021 Available to backorder	[36] - Bolt	£0.71 £0.59
