Belle Ranger 450 - Axle Assembly

Part No. Ranger450Axle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Ranger 450 - Axle Assembly

Belle Ranger 450 - Axle Assembly

Description

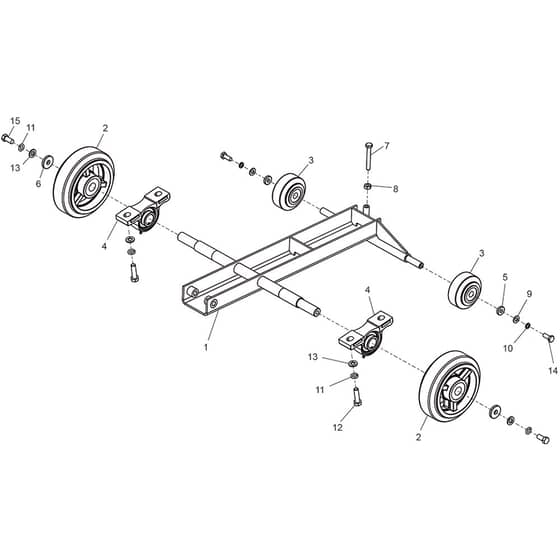

Belle Ranger 450 - Axle Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	1		BE966/01100 Available to backorder	[1] - Wheel Bracket Assy		£358.03 £298.36
	2		BE966/99911 Available to backorder	[2] - Rear Wheel		£272.16 £226.80
	3		BE966/99912 Available to backorder	[3] - Front Wheel		£78.12 £65.10
	4		BE966/99908 Available to backorder	[4] - 30mm I/D Housed Pillow Bearing		£49.43 £41.19
	5		BE966/99909 Available to backorder	[5] - 4" Wheel Spacer		£7.24 £6.03
	6		BE966/99934 Available to backorder	[6] - Top Pulley Washer		£8.32 £6.93
	8		BE8/10003 Available to backorder	[8] - Nut		£0.48 £0.40
	9		BE4/1005 Available to backorder	[9] - Washer M10		£0.48 £0.40
	10		BE4/1003 Available to backorder	[10] - Washer M10		£0.48 £0.40
	11		BE4/1202 Available to backorder	[11] - Washer M12		£0.48 £0.40
	12		BE9/12021 Available to backorder	[12] - Bolt		£0.71 £0.59
	13		BE4/1204 Available to backorder	[13] - Washer M12		£0.48 £0.40
	14		BE7/10005 Available to backorder	[14] - Screw		£0.43 £0.36
	15		BE7/12004 Available to backorder	[15] - Screw		£0.77 £0.64

Description

Belle Ranger 450 - Axle Assembly - Parts Diagram
