Belle PWX Range - Pump Assembly (PWX 15-250)

Description

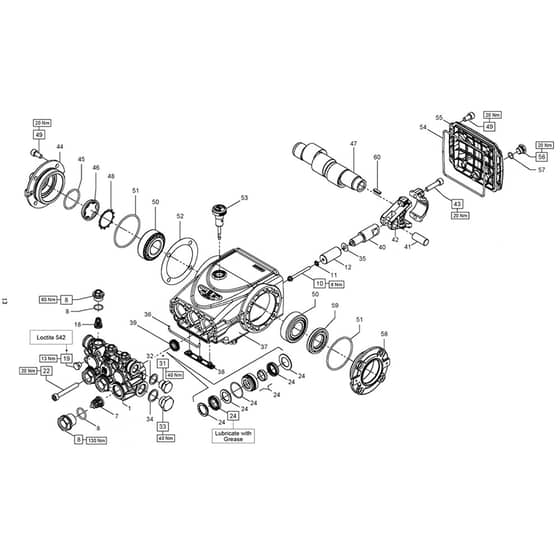

Belle PWX Range - Pump Assembly (PWX 15-250) - Parts Diagram

	Part No.	Details
7	BE36.7115.01 Available to backorder	[7] - Suction Valve Assy	£18.42 £15.35
8	BEE3B2515 KIT 292 Available to backorder	[8] - Seals & Plugs (Kit 292?)	£326.88 £272.40
10	BE99.1690.00 Available to backorder	[10] - Screw M5 x 55	£38.60 £32.17
11	BE96.6905.00 Available to backorder	[11] - Washer M5	£24.56 £20.47
12	BE59.0400.09 Available to backorder	[12] - Piston D.20 x 42	£176.50 £147.08
18	BE36.7193.01 Available to backorder	[18] - Delivery Valve Assy	£17.34 £14.45
19	BE98.1967.00 Available to backorder	[19] - Plug G 1/8" x 8 - Nickel	£54.38 £45.32
22	BE99.3175.00 Available to backorder	[22] - Bolt M8 x 60 Uni 5931	£14.06 £11.72
31	BE98.2099.00 Available to backorder	[31] - Blanking Plug 3/8" x 13	£107.88 £89.90
32	BE96.7380.00 Available to backorder	[32] - Seal Washer Dia. 17.5 x 23 x 1	£3.50 £2.92
33	BE98.2179.00 Available to backorder	[33] - Plug G 1/2" x 10	£122.78 £102.32
34	BE96.7514.00 Available to backorder	[34] - Seal Washer Dia. 21.5 x 27 x 1	£5.62 £4.68
35	BE96.6990.00 Available to backorder	[35] - Seal Washer Dia. 7.5 x 23 x 0.	£5.62 £4.68
36	BE59.2110.82 Available to backorder	[36] - Sponge Gasket Dia. 3 x 103	£17.04 £14.20
37	BE59.0100.22 Available to backorder	[37] - Pump Housing	£724.80 £604.00
38	BE58.2104.51 Available to backorder	[38] - Protection Plate	£11.04 £9.20
59	BE90.1648.00 Available to backorder	[59] - Rad Ring Dia. 30 x 55 x 4	£717.60 £598.00
