Belle PWX Range - Gearbox Assembly (PWX 15-250)

Part No. PWXRangeGearboxPWX15250-group
Belle PWX Range - Gearbox Assembly (PWX 15-250)
Belle PWX Range - Gearbox Assembly (PWX 15-250)

Description

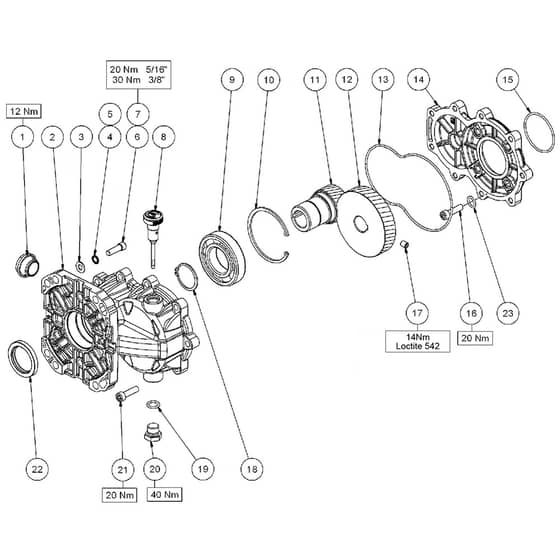

Belle PWX Range - Gearbox Assembly (PWX 15-250) - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Oil Level Indicator Plug G 3/
[1] - Oil Level Indicator Plug G 3/
BE97.5968.00
Available to backorder
[1] - Oil Level Indicator Plug G 3/
£47.20 £39.33

  2 [2] - Rs500 Casting
[2] - Rs500 Casting
BE10.0756.22
Available to backorder
[2] - Rs500 Casting
£283.32 £236.10

  3 [3] - Washer Dia. 8.4 x 15 x 1.5
[3] - Washer Dia. 8.4 x 15 x 1.5
BE96.7020.00
Available to backorder
[3] - Washer Dia. 8.4 x 15 x 1.5
£2.59 £2.16

  4 [4] - Washer Dia. 8.4
[4] - Washer Dia. 8.4
BE96.7014.00
Available to backorder
[4] - Washer Dia. 8.4
£4.34 £3.62

  5 [5] - Elastic Washer Dia. 10.5 x 16
[5] - Elastic Washer Dia. 10.5 x 16
BE96.7104.00
Available to backorder
[5] - Elastic Washer Dia. 10.5 x 16
£6.58 £5.48

  6 [6] - Screw 5/16
[6] - Screw 5/16
BE99.2755.00
Available to backorder
[6] - Screw 5/16" -24 x 1"
£13.68 £11.40

  7 [7] - Screw 3/8
[7] - Screw 3/8
BE99.3346.00
Available to backorder
[7] - Screw 3/8" - 16x 1-1/4"
£27.00 £22.50

  8 [8] - Dipstick 3/8
[8] - Dipstick 3/8
BE98.2105.00
Available to backorder
[8] - Dipstick 3/8" x 51
£38.11 £31.76

  9 [9] - Ball Bearing 6208
[9] - Ball Bearing 6208
BE91.8520.00
Available to backorder
[9] - Ball Bearing 6208
£172.68 £143.90

  10 [10] - Circlip Dia 80 Uni 7437
[10] - Circlip Dia 80 Uni 7437
BE90.0976.00
Available to backorder
[10] - Circlip Dia 80 Uni 7437
£36.83 £30.69

  11 [11] - Gear Z17 - Output Dia. 25.4
[11] - Gear Z17 - Output Dia. 25.4
BE10.0233.55
Available to backorder
[11] - Gear Z17 - Output Dia. 25.4
£607.20 £506.00

  12 [12] - Gear Z37
[12] - Gear Z37
BE10.0234.55
Available to backorder
[12] - Gear Z37
£607.20 £506.00

  14 [14] - Gearbox Cover
[14] - Gearbox Cover
BE10.0757.22
Available to backorder
[14] - Gearbox Cover
£301.32 £251.10

  15 [15] - O Ring Dia. 56.82 x 2.62 (3225
[15] - O Ring Dia. 56.82 x 2.62 (3225
BE90.3898.00
Available to backorder
[15] - O Ring Dia. 56.82 x 2.62 (3225
£5.81 £4.84

  16 [16] - Screw M8 x 30 Uni 5931
[16] - Screw M8 x 30 Uni 5931
BE99.3085.00
Available to backorder
[16] - Screw M8 x 30 Uni 5931
£12.79 £10.66

  17 [17] - Screw M8 x 10 Uni 5929
[17] - Screw M8 x 10 Uni 5929
BE99.3017.00
Available to backorder
[17] - Screw M8 x 10 Uni 5929
£6.35 £5.29

  18 [18] - Circlip Dia. 40 Uni 7435
[18] - Circlip Dia. 40 Uni 7435
BE90.0725.00
Available to backorder
[18] - Circlip Dia. 40 Uni 7435
£11.48 £9.57

  19 [19] - O Ring Dia. 13.95 x 2.62
[19] - O Ring Dia. 13.95 x 2.62
BE90.3833.00
Available to backorder
[19] - O Ring Dia. 13.95 x 2.62
£2.74 £2.28

  20 [20] - Blanking Plug 3/8
[20] - Blanking Plug 3/8
BE98.2100.00
Available to backorder
[20] - Blanking Plug 3/8" x 13
£41.03 £34.19

  21 [21] - Screw M8 x 30 Uni 5931
[21] - Screw M8 x 30 Uni 5931
BE99.3084.00
Available to backorder
[21] - Screw M8 x 30 Uni 5931
£1.84 £1.53

  22 [22] - Rad Ring Dia. 40 x 55 x 7
[22] - Rad Ring Dia. 40 x 55 x 7
BE90.1680.00
Available to backorder
[22] - Rad Ring Dia. 40 x 55 x 7
£71.04 £59.20

  23 [23] - O Ring Dia 6 x 1.5
[23] - O Ring Dia 6 x 1.5
BE90.3507.00
Available to backorder
[23] - O Ring Dia 6 x 1.5
£3.86 £3.22


Description

Belle PWX Range - Gearbox Assembly (PWX 15-250) - Parts Diagram
