Belle PWX Range - Frame Assembly (PWX 15-250)

Name: Belle PWX Range - Frame Assembly (PWX 15-250)
SKU: PWXRangeFramePWX15250-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle PWX Range - Frame Assembly (PWX 15-250)

Description

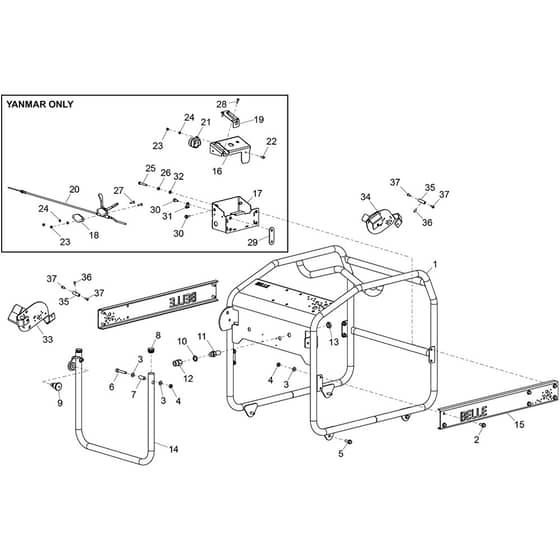

Belle PWX Range - Frame Assembly (PWX 15-250) - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	BE7/8037 Available to backorder	[2] - Screw	£0.48 £0.40
3	BE4/8006 Available to backorder	[3] - Washer M8	£0.48 £0.40
4	BE8/8008 Available to backorder	[4] - Nut	£0.48 £0.40
5	BE7/8053 Available to backorder	[5] - Screw	£0.48 £0.40
6	BE7/8101 Available to backorder	[6] - Screw	£0.90 £0.75
8	BE3/4035 Available to backorder	[8] - Plug Plastic 27 Od	£12.62 £10.52
9	BE3/0088 Available to backorder	[9] - Spring Plunger M16 x �10	£63.98 £53.32
10	BE5/0007 Available to backorder	[10] - Seal Bonded 3/8" Bsp	£0.48 £0.40
11	BE6/0272 Available to backorder	[11] - Draught Excluder (Per Mtr)	£24.40 £20.33
12	BE6/0284 Available to backorder	[12] - 3/8" - M22 x 1.5 F/M Adaptor	£15.44 £12.87
14	BE02399B1 Available to backorder	[14] - Midi/Major Latch (xxxx) Blue	£62.74 £52.28
14	BE02399W1 Available to backorder	[14] - Midi/Major Latch (xxxx) White	£62.64 £52.20
14	BE02399G Available to backorder	[14] - Midi/Major Latch (xxxx) Green	£62.74 £52.28
14	BE02399S Available to backorder	[14] - Midi/Major Latch (xxxx) Orange	£62.64 £52.20
14	BE02399R1 Available to backorder	[14] - Midi/Major Latch (xxxx) Red	£62.74 £52.28
15	BE995/99913B1 Available to backorder	[15] - Side Guard - Large Blue	£34.00 £28.33
15	BE995/99913G Available to backorder	[15] - Side Guard - Large Green	£34.28 £28.57
15	BE995/99913R1 Available to backorder	[15] - Side Guard - Large Red	£34.00 £28.33
15	BE995/99913S Available to backorder	[15] - Side Guard - Large Orange	£33.92 £28.27
15	BE995/99913W1 Available to backorder	[15] - Side Guard - Large White	£33.82 £28.18
16	BE995/99920 Available to backorder	[16] - Starter Box Lid	£26.18 £21.82
17	BE995/01700 Available to backorder	[17] - Starter Box Wa	£113.36 £94.47
18	BE995/99922 Available to backorder	[18] - Throttle Spacer Plate	£13.60 £11.33
19	BE995/99921 Available to backorder	[19] - Throttle Retaining Plate	£24.08 £20.07
20	BE995/02300 Available to backorder	[20] - Throttle Lever Assy - 15/250D	£69.08 £57.57
21	BE70/0267 Available to backorder	[21] - Buzzer 12V Continuous	£49.02 £40.85
22	BE7/5024 Available to backorder	[22] - Screw	£0.48 £0.40
23	BE8/5003 Available to backorder	[23] - Nut	£0.48 £0.40
25	BE7/6078 Available to backorder	[25] - Screw	£0.48 £0.40
26	BE8/6001 Available to backorder	[26] - Nut	£0.66 £0.55
27	BE7/5010 Available to backorder	[27] - Screw	£0.48 £0.40
28	BE7/4003 Available to backorder	[28] - Screw	£0.60 £0.50
29	BE995/99923 Available to backorder	[29] - Starter Box Spacer Plate	£13.60 £11.33
30	BE7/6034 Available to backorder	[30] - Screw	£0.56 £0.47
31	BE3/7055 Available to backorder	[31] - P-Clip 6mm x M6 Hole	£8.88 £7.40
32	BE4/6001 Available to backorder	[32] - Washer M6	£0.48 £0.40
33	BE995/01300 Available to backorder	[33] - Pwx Lance Holster Wa	£78.94 £65.78
34	BE995/01900 Available to backorder	[34] - Pwx Lance Rest Wa	£77.88 £64.90
35	BE995/99917 Available to backorder	[35] - Fastening Boss	£20.42 £17.02
36	BE7/6076 Available to backorder	[36] - Screw	£0.48 £0.40
37	BE7/6075 Available to backorder	[37] - Screw	£0.48 £0.40
