Belle PWX Range - Engine, Gearbox & Pump Assembly (PWX 15-250 Honda)

Description

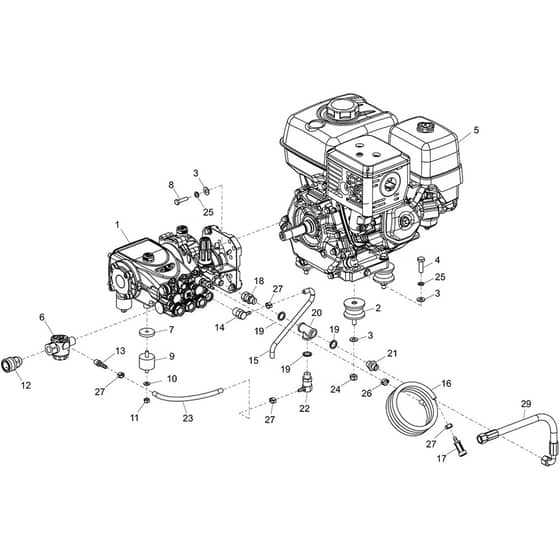

Belle PWX Range - Engine, Gearbox & Pump Assembly (PWX 15-250 Honda) - Parts Diagram

	Part No.	Details
1	BE6/1157 Available to backorder	[1] - 15/250 Pump Gbox Assy	£1,133.57 £944.64
2	BE21.0.292 In stock	[2] - Anti-Vib Mount	£12.70 £10.58
3	BE4/1005 Available to backorder	[3] - Washer M10	£0.48 £0.40
4	BE7/10003 Available to backorder	[4] - Screw	£0.43 £0.36
6	BE6/5023 Available to backorder	[6] - Water Filter+ 1/2" 300�M	£21.71 £18.09
7	BE4/8023 Available to backorder	[7] - Washer	£2.98 £2.48
8	BE7/3817 Available to backorder	[8] - Screw	£0.72 £0.60
9	BE21/0438 Available to backorder	[9] - Av Mount �40 M8 x 16 M/M	£4.97 £4.14
10	BE4/8006 Available to backorder	[10] - Washer M8	£0.48 £0.40
11	BE8/8008 Available to backorder	[11] - Nut	£0.48 £0.40
12	BE6/0283 Available to backorder	[12] - Inlet Qr Coupling 1/"2	£58.08 £48.40
13	BE6/0266 Available to backorder	[13] - 1/4" Bspt Hose Tail - �8 Hose	£11.23 £9.36
14	BE6/0282 Available to backorder	[14] - 1/2" Thermal Relief Valve	£39.41 £32.84
16	BE30/0107 Available to backorder	[16] - 1/4" x 11 Pvc Braided Hose 2M	£2.29 £1.91
17	BE6/5025 Available to backorder	[17] - Deturgent Strainer Filter	£16.08 £13.40
18	BE6/0288 Available to backorder	[18] - 3/8" M/F Adaptor Bsp	£11.11 £9.26
19	BE5/0007 Available to backorder	[19] - Seal Bonded 3/8" Bsp	£0.48 £0.40
20	BE6/0285 Available to backorder	[20] - 3/8" Female Tee Galv	£9.60 £8.00
21	BE6/0011 Available to backorder	[21] - Adaptor - 3/8 x 3/8 Bsp M/M	£5.32 £4.43
22	BE6/0286 Available to backorder	[22] - 3/8" Easy Start Valve	£57.97 £48.31
23	BE30/0106 Available to backorder	[23] - 1/4" x 11 Pvc Braided Hose 630	£0.79 £0.66
24	BE8/10006 Available to backorder	[24] - Nut	£0.48 £0.40
25	BE4/1003 Available to backorder	[25] - Washer M10	£0.48 £0.40
26	BE3/7063 Available to backorder	[26] - O Clip - Id 15 0C8	£2.69 £2.24
27	BE15.0.063 Available to backorder	[27] - Hose Clip Wade Oc 8	£1.43 £1.19
29	BE31/0145 Available to backorder	[29] - Hyd Hose - 3/8" Bsp+ 390mm Lg	£46.54 £38.78
