Belle PT Range Pro & Pro Tilt Trowel - Manual Drive Kit (From May 2006)

Name: Belle PT Range Pro & Pro Tilt Trowel - Manual Drive Kit (From May 2006)
SKU: PTRangeProProTiltTrowelManualDriveKitFromMay2006-group
Price: 0.31 GBP
Availability: InStock

Part No. PTRangeProProTiltTrowelManualDriveKitFromMay2006-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle PT Range Pro & Pro Tilt Trowel - Manual Drive Kit (From May 2006)

Description

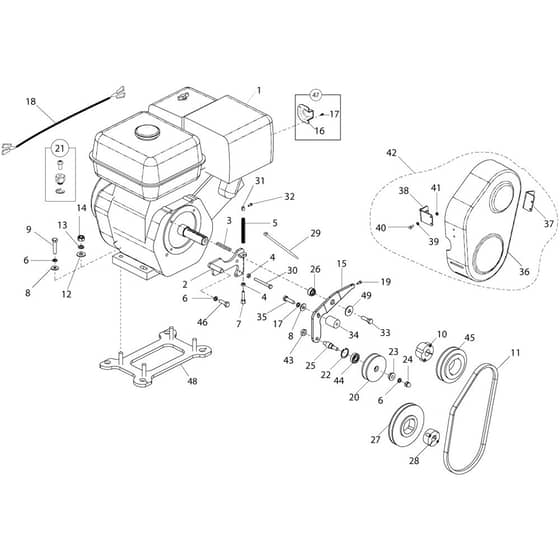

Belle PT Range Pro & Pro Tilt Trowel - Manual Drive Kit (From May 2006) - Parts Diagram

	Part No.	Details
1	BE20/0106 Available to backorder	[1] - Honda Gx270 Ut2 Qxq4	£976.90 £814.08
1	BE20/0057 Available to backorder	[1] - Robin Engine Ex17 5.7 Hp	£604.80 £504.00
1	BE20/0058 Available to backorder	[1] - Robin Engine Ex27 9Hp	£913.54 £761.28
2	BE947/01700 Available to backorder	[2] - Mounting Plate ( 1200 ) - Wa Gx270 / Ex27	£112.56 £93.80
2	BE947/01600 Available to backorder	[2] - Mounting Plate( 900 ) Wa Gx160 / Ex17	£120.84 £100.70
3	BE06.3.001 Available to backorder	[3] - Key 6x6x33mm Gx160 / Ex17	£15.26 £12.72
3	BE06.8.018 Available to backorder	[3] - Key 1/4" x 1/4" x 2" 1200	£6.95 £5.79
4	BE8/6001 Available to backorder	[4] - Nut	£0.68 £0.57
5	BE2/0060 Available to backorder	[5] - Manual Clutch Spring	£21.35 £17.79
6	BE4/8003 Available to backorder	[6] - Washer Gx160 / Ex17 M8	£0.71 £0.59
7	BE947/99971 Available to backorder	[7] - Cable Adjuster	£13.28 £11.07
8	BE4/8007 Available to backorder	[8] - Washer Gx160 / Ex17 M8	£0.48 £0.40
9	BE9/8019 Available to backorder	[9] - Bolt Gx160 / Ex17	£0.48 £0.40
10	BE21/0255 Available to backorder	[10] - Bush Taperlock 1210-1 Gx270 / Ex27	£18.86 £15.72
10	BE21/0258 Available to backorder	[10] - Bush Taperlock 1210-3/4 Gx160 / Ex17	£22.63 £18.86
11	BE21.0.292 In stock	[11] - 1200 Manual Clutch Belts 900 - Gx270 / Ex27	£12.70 £10.58
11	BE21/0253 Available to backorder	[11] - 1200 Manual Clutch Belt 1200 - Gx270 / Ex27	£8.57 £7.14
11	BE21/0252 Available to backorder	[11] - 900 Manual Clutch Belt 900 - Gx160 / Ex17	£18.64 £15.53
12	BE4/1001 Available to backorder	[12] - Washer Gx270 / Ex27 M10	£0.48 £0.40
13	BE4/1003 Available to backorder	[13] - Washer Gx270 / Ex27 M10	£0.48 £0.40
14	BE8/10006 Available to backorder	[14] - Nut Gx270 / Ex27	£0.48 £0.40
15	BE947/99957 Available to backorder	[15] - Tensioning Lever ( 1200 ) 1200 - Gx270 / Ex27	£116.28 £96.90
15	BE947/99912 Available to backorder	[15] - Tensioning Lever ( 900 ) 900 - Gx160 / Ex17	£127.08 £105.90
18	BE71/0247 Available to backorder	[18] - Trowel Engine Harness Gx270 Gx270 / Ex27	£46.94 £39.12
18	BE71/0246 Available to backorder	[18] - Common Engine Harness 900 Gx160 / Ex17	£48.43 £40.36
19	BE7/5166 Available to backorder	[19] - Screw	£0.48 £0.40
20	BE947/99918 Available to backorder	[20] - Tensioning Pulley	£89.64 £74.70
21	BE21/0243 Available to backorder	[21] - Cable Holder	£6.64 £5.53
22	BE3/9024 Available to backorder	[22] - Circlip Internal (30.1 x 1.2)	£2.14 £1.78
23	BE947/99970 Available to backorder	[23] - Spacer Top Hat	£17.23 £14.36
24	BE8/8022 Available to backorder	[24] - Nut	£0.37 £0.31
25	BE947/99920 Available to backorder	[25] - Shaft Bolt 1 Gx160 / Ex17	£24.80 £20.67
25	BE947/99941 Available to backorder	[25] - Manual Clutch Pulley Bolt Gx270 / Ex27	£11.14 £9.28
26	BE947/99976 Available to backorder	[26] - Spacer Bush - Tensioning Lever Gx160 / Ex17	£18.00 £15.00
27	BE21.0.256 Available to backorder	[27] - Pulley Taperlock Spa 150/1	£2.88 £2.40
28	BE21/0257 Available to backorder	[28] - Bush Taper Lock 1610-20	£39.11 £32.59
29	BE3/6005 Available to backorder	[29] - Cable Tie (3.6x140Lg)	£0.48 £0.40
30	BE9/6009 Available to backorder	[30] - Bolt	£3.06 £2.55
31	BE947/99965 Available to backorder	[31] - Cable Retainer	£9.64 £8.03
32	BE7/4008 Available to backorder	[32] - Screw	£0.48 £0.40
33	BE9/0007 Available to backorder	[33] - Bolt 5/16" x 1 1/4" Unf Bzp	£1.31 £1.09
34	BE947/99913 Available to backorder	[34] - Threaded Boss	£35.88 £29.90
35	BE9/8008 Available to backorder	[35] - Bolt	£0.48 £0.40
36	BE947/02501 Available to backorder	[36] - Belt Guard 900 - Gx160 / Ex17	£72.60 £60.50
36	BE947/08201 Available to backorder	[36] - Belt Guard 900 - Gx270 / Ex27	£71.88 £59.90
36	BE947/02601 Available to backorder	[36] - Belt Guard 1200 - Gx270 / Ex27	£77.16 £64.30
37	BE947/99975 Available to backorder	[37] - Belt Guard Brkt Rear 900 - Gx160 / Ex17	£2.81 £2.34
37	BE947/99979 Available to backorder	[37] - Belt Guard Brkt Rear - 1200 1200 - Gx270 / Ex27	£5.98 £4.98
38	BE947/05800 Available to backorder	[38] - Belt Guard Brkt Front -Wa 1200 - Gx270 / Ex27	£1.82 £1.52
38	BE947/08300 Available to backorder	[38] - Beltguard Brkt Front 900 9Hp 900 - Gx270 / Ex27	£12.79 £10.66
38	BE947/05500 Available to backorder	[38] - Belt Guard Brkt Front Wa 900 - Gx160 / Ex17	£3.89 £3.24
39	BE4/5002 Available to backorder	[39] - Washer M5	£2.51 £2.09
40	BE7/5002 Available to backorder	[40] - Screw	£0.48 £0.40
41	BE8/5002 Available to backorder	[41] - Nut	£1.32 £1.10
42	BE947/08800 Available to backorder	[42] - Belt Guard Assy M900 9Hp 900 - Gx270 / Ex27	£85.20 £71.00
42	BE947/02600 Available to backorder	[42] - Belt Guard Assy (1200) 1200 - Gx270 / Ex27	£100.68 £83.90
42	BE947/02500 Available to backorder	[42] - Belt Guard Assy (900) 900 - Gx160 / Ex17	£73.92 £61.60
43	BE8/10002 Available to backorder	[43] - Nut	£0.48 £0.40
44	BE53/0063 Available to backorder	[44] - Bearing - Ball 6001 2Z	£13.24 £11.03
45	BE21/0254 Available to backorder	[45] - Pulley Taperlock Spa 95/1	£37.72 £31.43
46	BE02.3.020 Available to backorder	[46] - Setscrew 5/16" x 1" Unf Bzp	£0.71 £0.59
47	BE21/0236 Available to backorder	[47] - Exhaust Deflector	£9.07 £7.56
48	BE947/11000 Available to backorder	[48] - Plate Assy 8/9 Hp Engine 900 - Gx270 / Ex27	£96.60 £80.50
49	BE4/8008 Available to backorder	[49] - Washer	£0.48 £0.40
