Belle PT Range Pro & Pro Tilt Trowel - Gearbox & Spider Assembly

Name: Belle PT Range Pro & Pro Tilt Trowel - Gearbox & Spider Assembly
SKU: PTRangeProProTiltTrowelGearboxSpider-group
Price: 0.33 GBP
Availability: InStock

Part No. PTRangeProProTiltTrowelGearboxSpider-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle PT Range Pro & Pro Tilt Trowel - Gearbox & Spider Assembly

Description

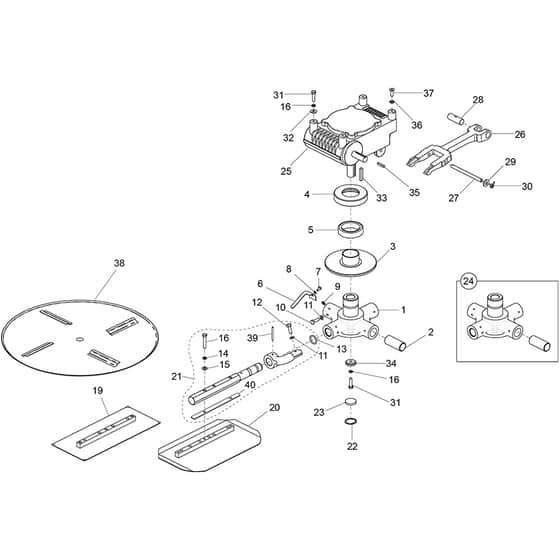

Belle PT Range Pro & Pro Tilt Trowel - Gearbox & Spider Assembly - Parts Diagram

	Part No.	Details
3	BE947/00603 Available to backorder	[3] - Tilt Plate	£154.80 £129.00
4	BE947/00605 Available to backorder	[4] - Bearing Housing	£44.36 £36.97
5	BE53/0059 Available to backorder	[5] - Bearing Vkc3525	£108.84 £90.70
6	BE947/00604 Available to backorder	[6] - Spring Plate	£1.31 £1.09
7	BE9/6005 Available to backorder	[7] - Bolt	£0.77 £0.64
8	BE4/6005 Available to backorder	[8] - Washer M6	£0.48 £0.40
9	BE500/06100 Available to backorder	[9] - Grease Nipple - M6 x 1mm	£0.48 £0.40
10	BE7/8012 Available to backorder	[10] - Screw	£0.48 £0.40
11	BE8/8017 Available to backorder	[11] - Nut	£21.11 £17.59
12	BE7/8011 Available to backorder	[12] - Screw	£0.48 £0.40
13	BE5/0066 Available to backorder	[13] - O Ring 2 x 30 Od	£0.48 £0.40
14	BE4/8003 Available to backorder	[14] - Washer M8	£0.71 £0.59
15	BE4/8006 Available to backorder	[15] - Washer M8	£0.48 £0.40
16	BE9/8017 Available to backorder	[16] - Bolt	£0.40 £0.33
19	BE111.8.011 Available to backorder	[19] - Pro 1200 Finish Blades+ 4 Off 1200	£92.28 £76.90
19	BE111.8.001 Available to backorder	[19] - Pro 900 Finish Blades+ 4 Off 900	£76.80 £64.00
20	BE111.8.012 Available to backorder	[20] - Pro 1200 Combi. Blades+ 4 Off 1200	£125.28 £104.40
20	BE111.8.002 Available to backorder	[20] - Pro 900 Combi Blades+ 4 Off 900	£99.84 £83.20

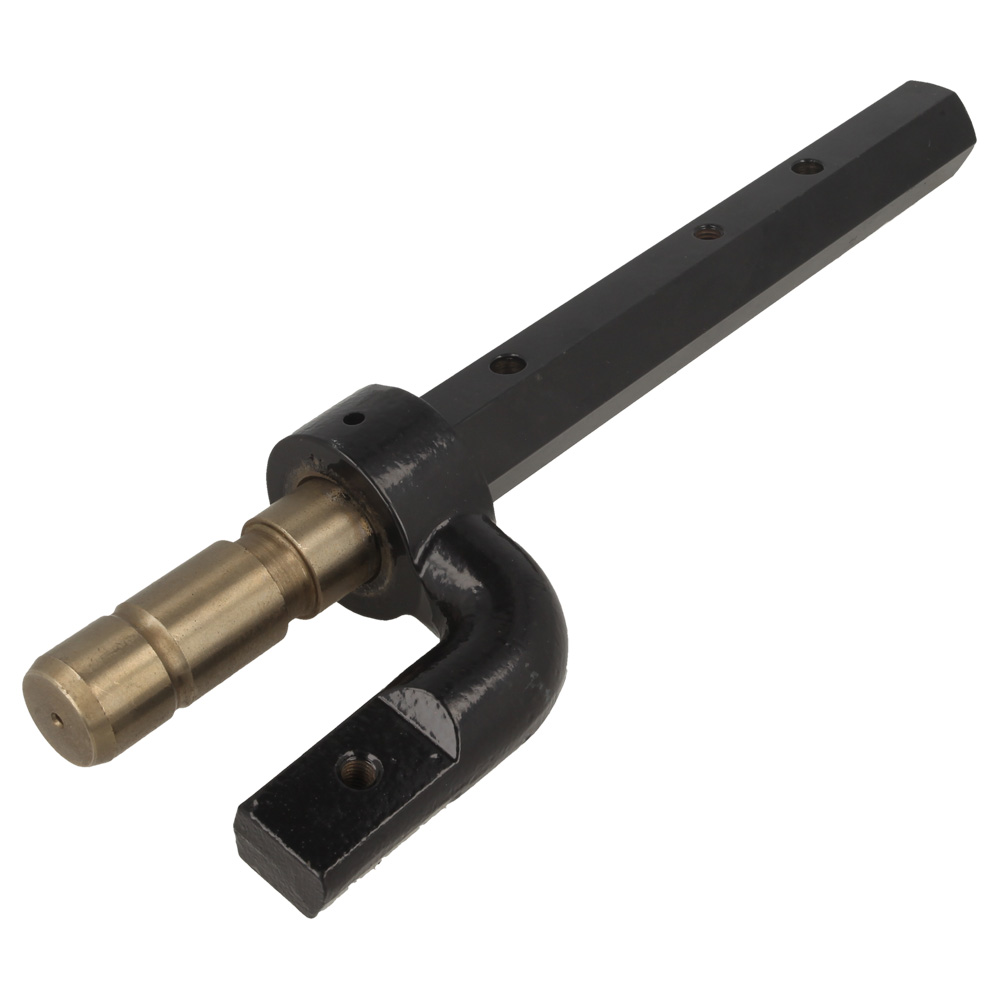

21	BE947/04400 Available to backorder	[21] - Spider Arm Assy ( 1200 ) 1200 Up To 095434 Now Use 947/09303 & 947/09302	£169.92 £141.60
21	BE947/04300 Available to backorder	[21] - Spider Arm Assy ( 900 ) 1200 From 095435	£175.08 £145.90
22	BE3/9023 Available to backorder	[22] - Circlip Internal 38 x 1.6	£0.49 £0.41
23	BE947/99962 Available to backorder	[23] - Rubber Seal	£2.66 £2.22
24	BE947/00600 Available to backorder	[24] - Spider Casting Assy Now Use 947/09400	£206.28 £171.90
24	BE947/09400 Available to backorder	[24] - Trowel Spider Casting Assy	£305.29 £254.41
25	BE947/01900 Available to backorder	[25] - 900 Gearbox Assembly 900	£862.85 £719.04
25	BE947/02000 Available to backorder	[25] - 1200 Gearbox Assembly 1200	£881.28 £734.40
26	BE947/99905 Available to backorder	[26] - Yoke Arm	£40.55 £33.79
27	BE947/99911 Available to backorder	[27] - Yoke Arm Shaft 10mm	£3.23 £2.69
28	BE947/99980 Available to backorder	[28] - Pivot Shaft	£10.94 £9.12
29	BE4/1001 Available to backorder	[29] - Washer M10	£0.48 £0.40
30	BE3/0032 Available to backorder	[30] - Pin Split 3/32" x 1 1/4" Bzp	£0.48 £0.40
31	BE9/8008 Available to backorder	[31] - Bolt	£0.48 £0.40
32	BE4/8007 Available to backorder	[32] - Washer M8	£0.48 £0.40
33	BE21/0251 Available to backorder	[33] - 8 x 7 x 45 Pro Trowel G/B Key	£5.77 £4.81
34	BE947/99945 Available to backorder	[34] - Gearbox Shaft Washer	£10.40 £8.67
35	BE947/99964 Available to backorder	[35] - Key 5 x 5 x 32	£4.80 £4.00
36	BE4/8015 Available to backorder	[36] - Washer M8	£0.58 £0.48
37	BE157.0.470 Available to backorder	[37] - Countersunk Screw M8 x 25	£3.49 £2.91
38	BE128-8-000 Available to backorder	[38] - Float Disc For 900 Trowels 900	£183.00 £152.50
38	BE160.8.000 Available to backorder	[38] - Pro 1200 Float Disc 1200	£288.84 £240.70
39	BE3/0070 Available to backorder	[39] - Pin Spirol	£2.32 £1.93
