Belle Promix 1200-1600 - Main Assembly

Name: Belle Promix 1200-1600 - Main Assembly
SKU: Promix12001600Main-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

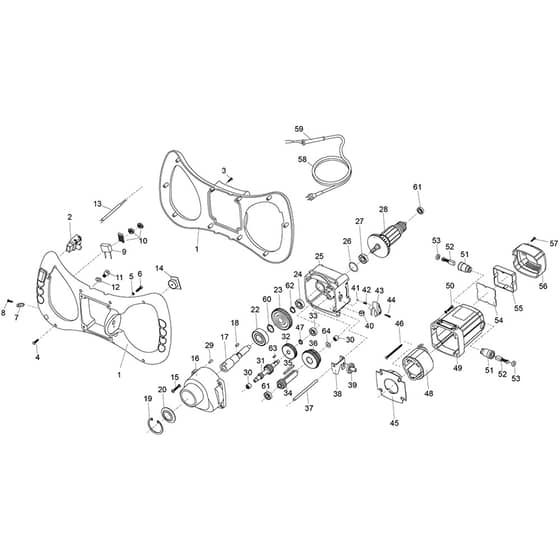

Belle Promix 1200-1600 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	BE949/99585 Available to backorder	[-] - 2 Blade Helical Ribbon 160 Dia 2 Blade Paddle 160mm Diameter	£49.28 £41.07
0	BEPROM03 Available to backorder	[-] - Belle Uk Promix 1600W 110V 1600E -110V	£409.20 £341.00

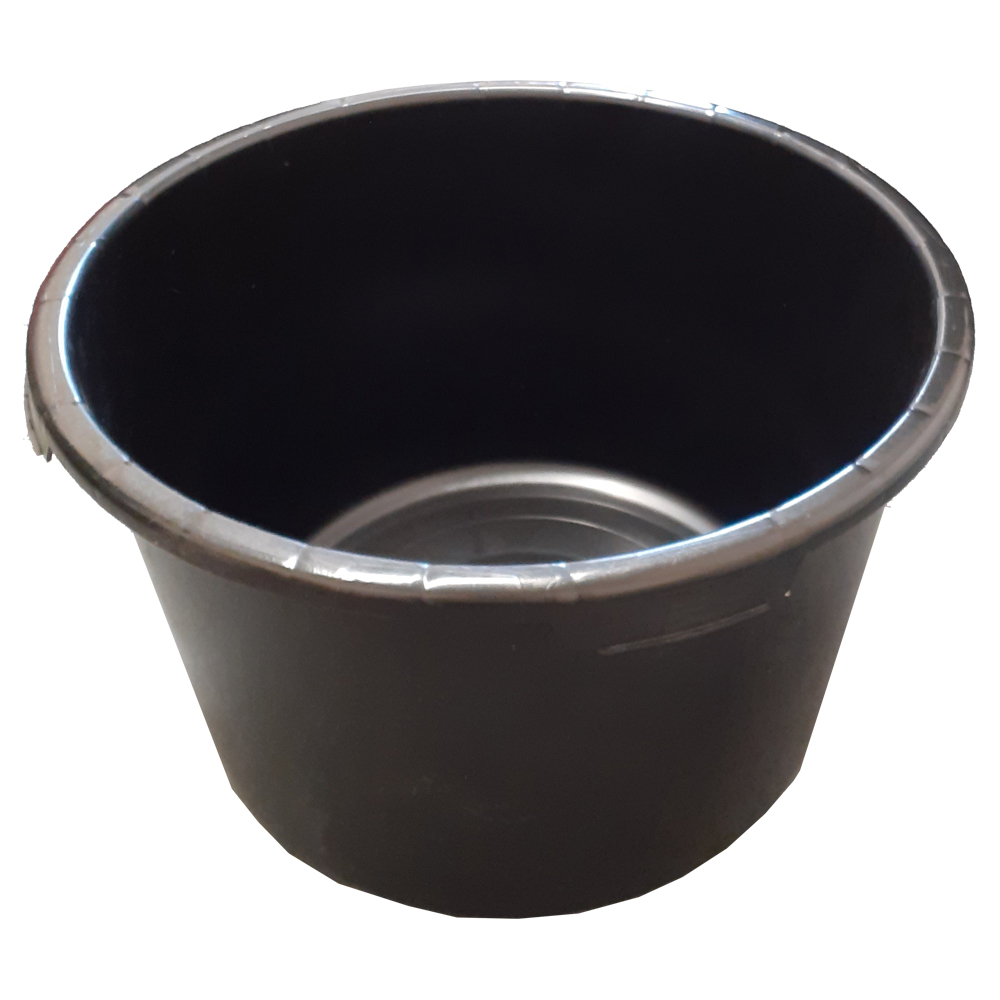

0	BE163.0.071 Available to backorder	[-] - Mixing Tub Tubmix 50 Additional Tub	£63.72 £53.10
0	BE949/99586 Available to backorder	[-] - 3 Blade Lh Helical 140 Dia 3 Blade Left Hand Paddle 140mm Diameter	£56.74 £47.28
0	BE949/99587 Available to backorder	[-] - 3 Blade Lh Helical 160 Dia 3 Blade Left Hand Paddle 160mm Diameter	£59.72 £49.77
0	BE949/99584 Available to backorder	[-] - 2 Blade Helical Ribbon 140 Dia 2 Blade Paddle 140mm Diameter	£46.38 £38.65
1	BE949/99592 Available to backorder	[1] - Handle Assy (From June '08)	£71.18 £59.32
1	BE949/99501 Available to backorder	[1] - Handle (Upto June '08)	£49.01 £40.84

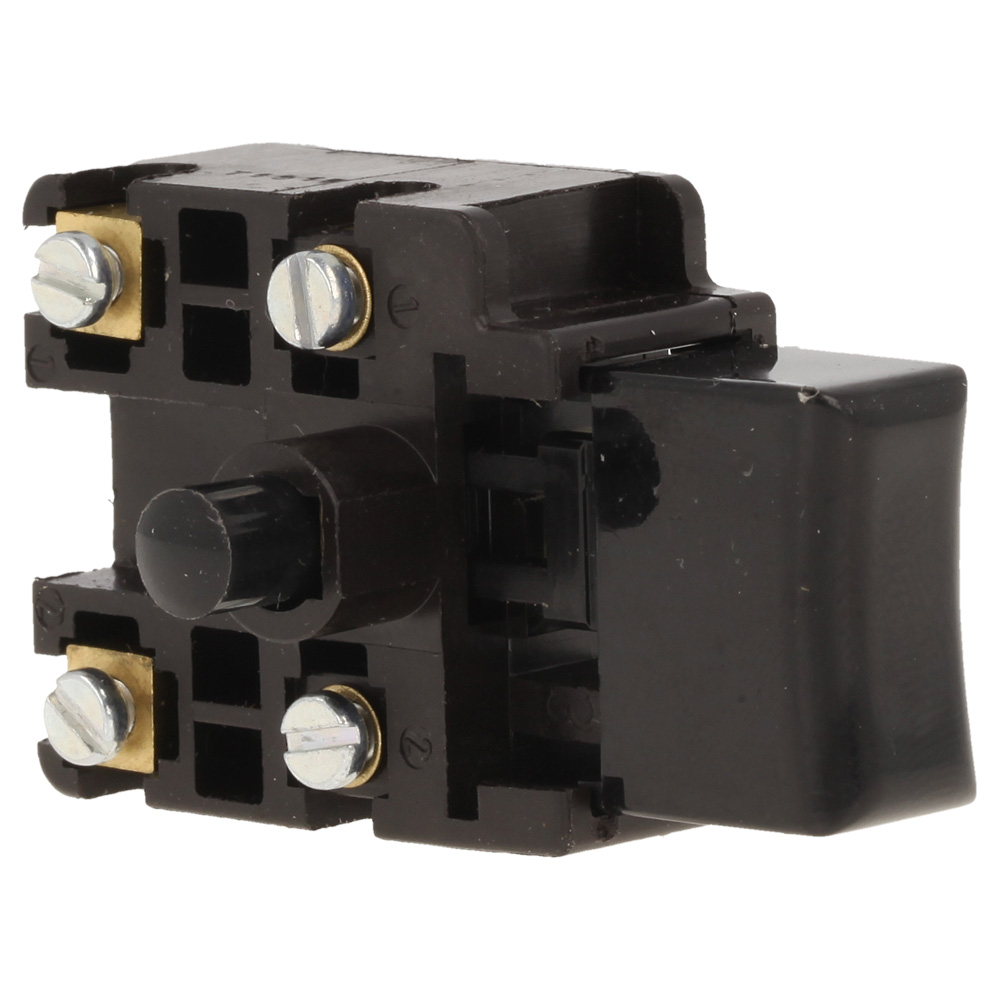

2	BE949/99593 Available to backorder	[2] - Switch Marquardt 1281.0101 (From June '08)	£24.52 £20.43

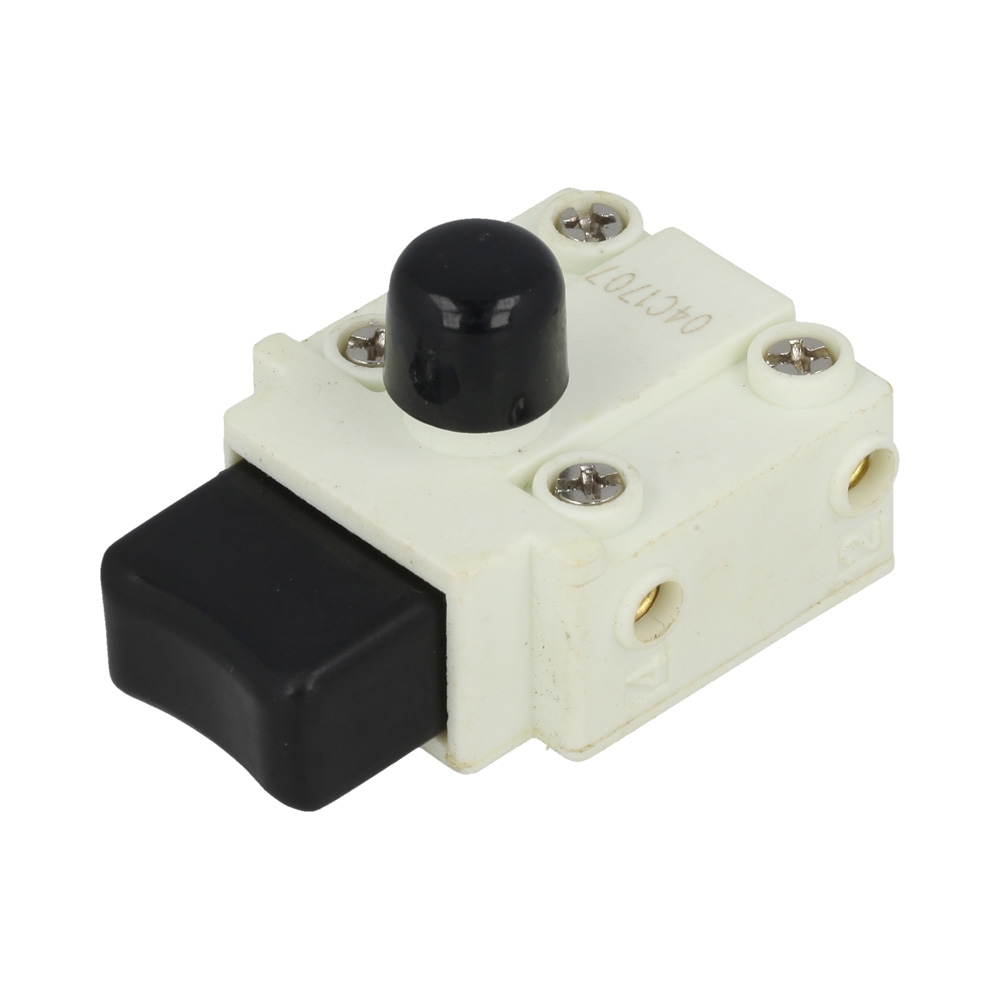

2	BE949/99502 In stock	[2] - Switch Kedu (Upto June '08)	£22.26 £18.55
4	BE7/4006 Available to backorder	[4] - Screw	£0.48 £0.40
5	BE4/5003 Available to backorder	[5] - Washer M5	£0.48 £0.40
6	BE7/5011 Available to backorder	[6] - Screw	£0.48 £0.40
7	BE949/99505 Available to backorder	[7] - Clamp	£0.48 £0.40

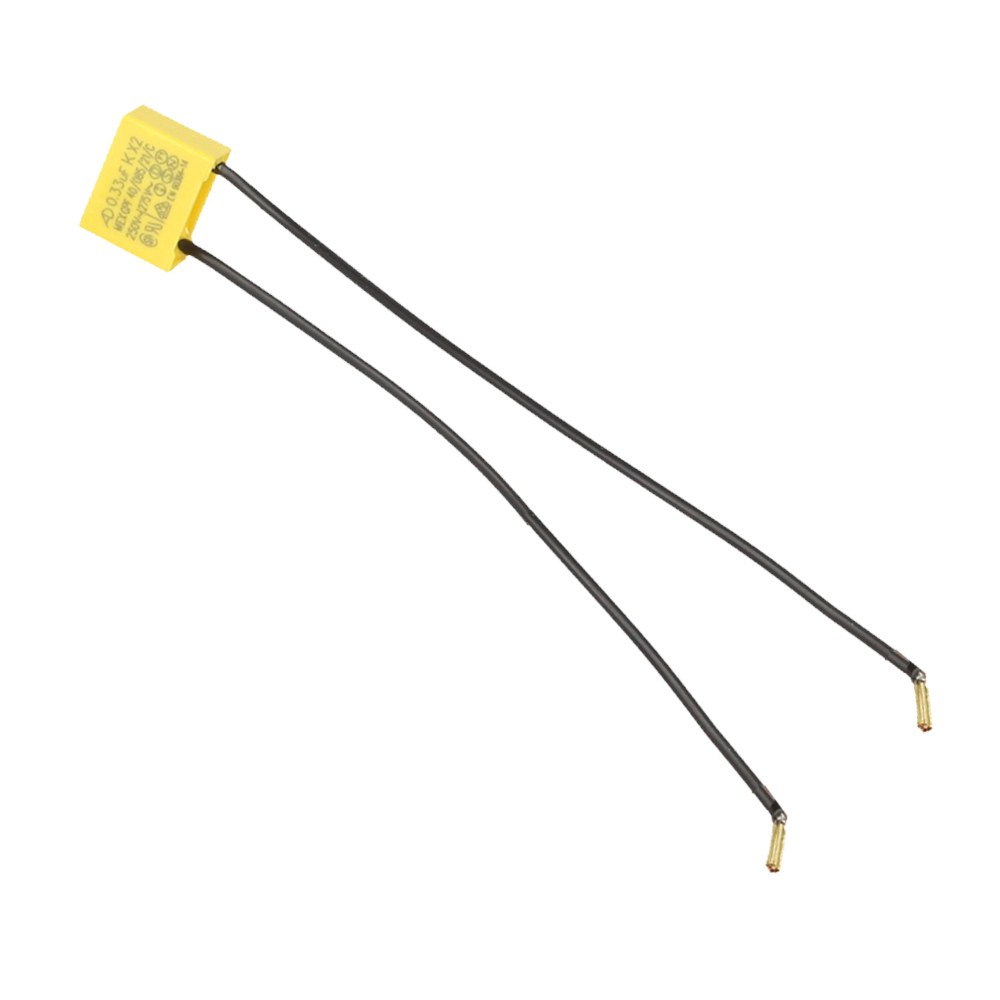

9	BE949/99506 Available to backorder	[9] - Capacitor	£1.08 £0.90

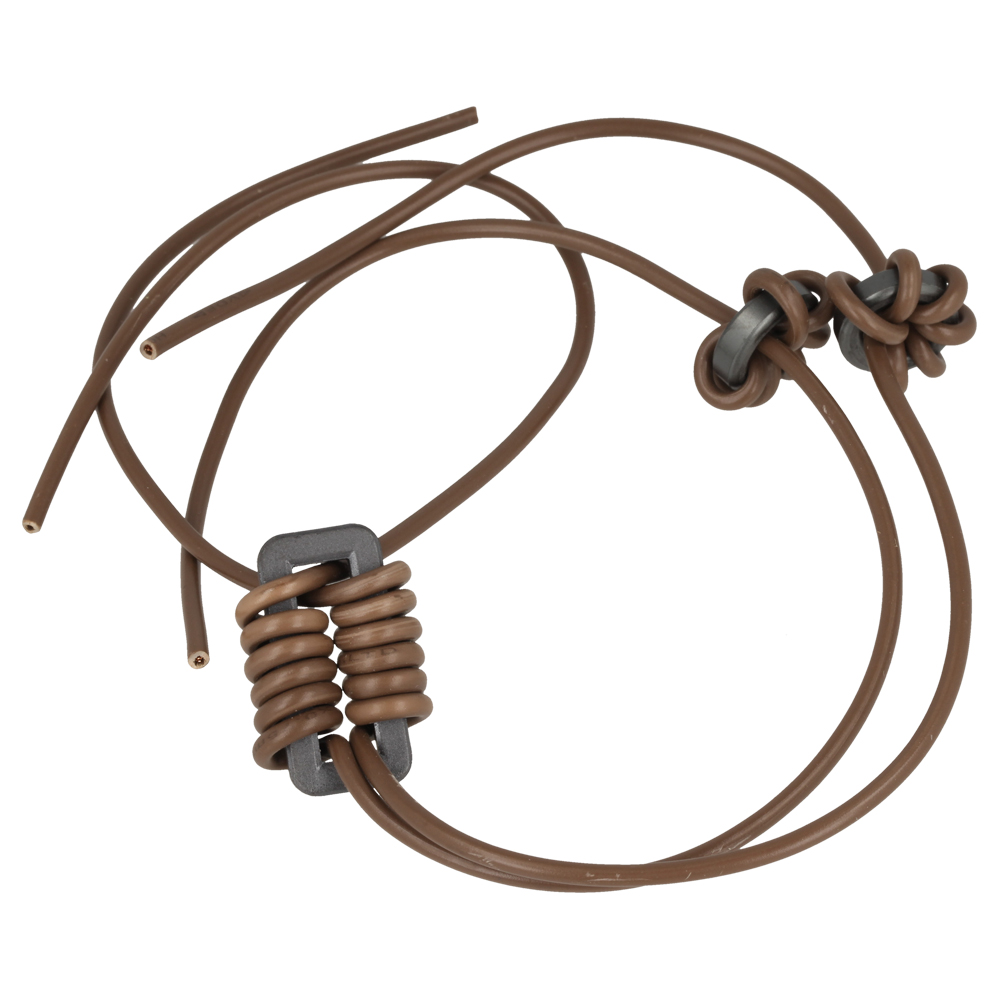

10	BE949/99507 Available to backorder	[10] - Inductance	£3.46 £2.88
11	BE10-330-0816 Available to backorder	[11] - Cap Screw M8 x 16 Lg.	£0.48 £0.40
12	BE4/8006 Available to backorder	[12] - Washer M8	£0.48 £0.40
13	BE949/99508 Available to backorder	[13] - Electrical Wire	£2.00 £1.67

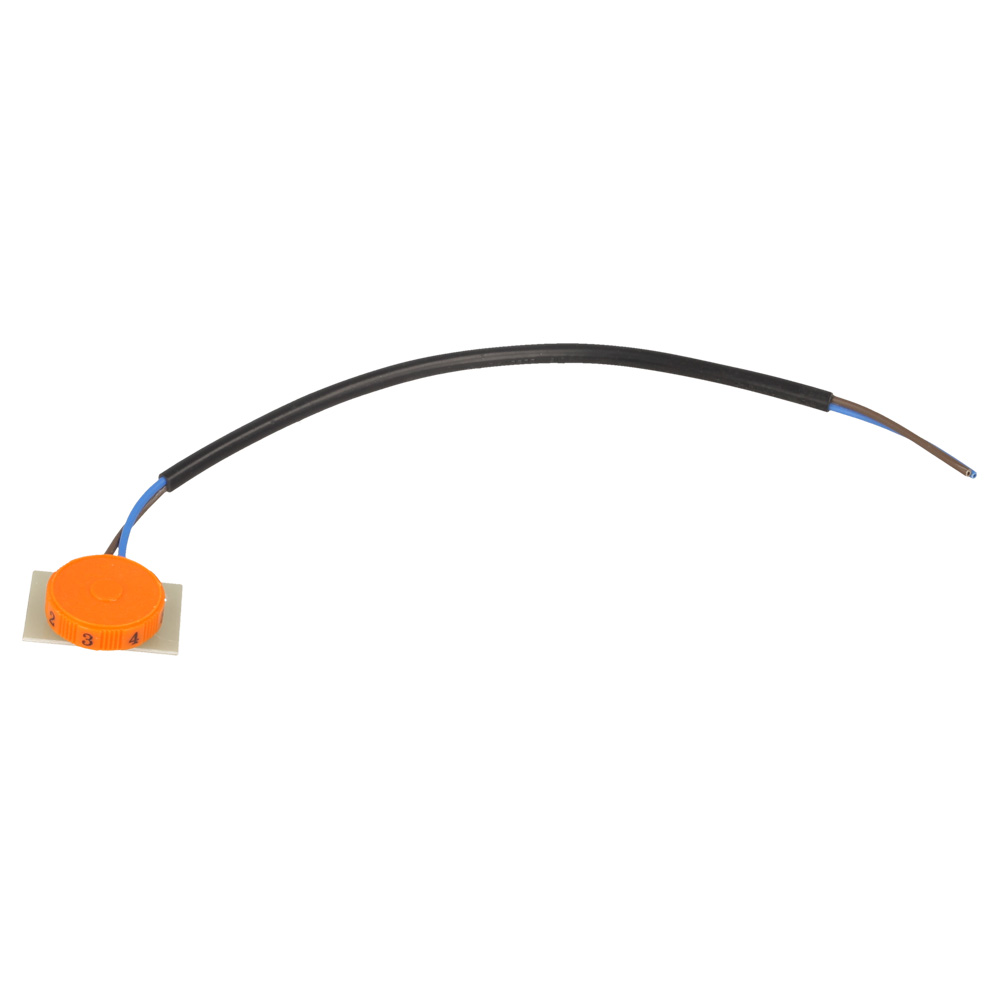

14	BE949/99509 Available to backorder	[14] - Circuitry Board	£3.08 £2.57
15	BE7/5173 Available to backorder	[15] - Screw	£0.86 £0.72

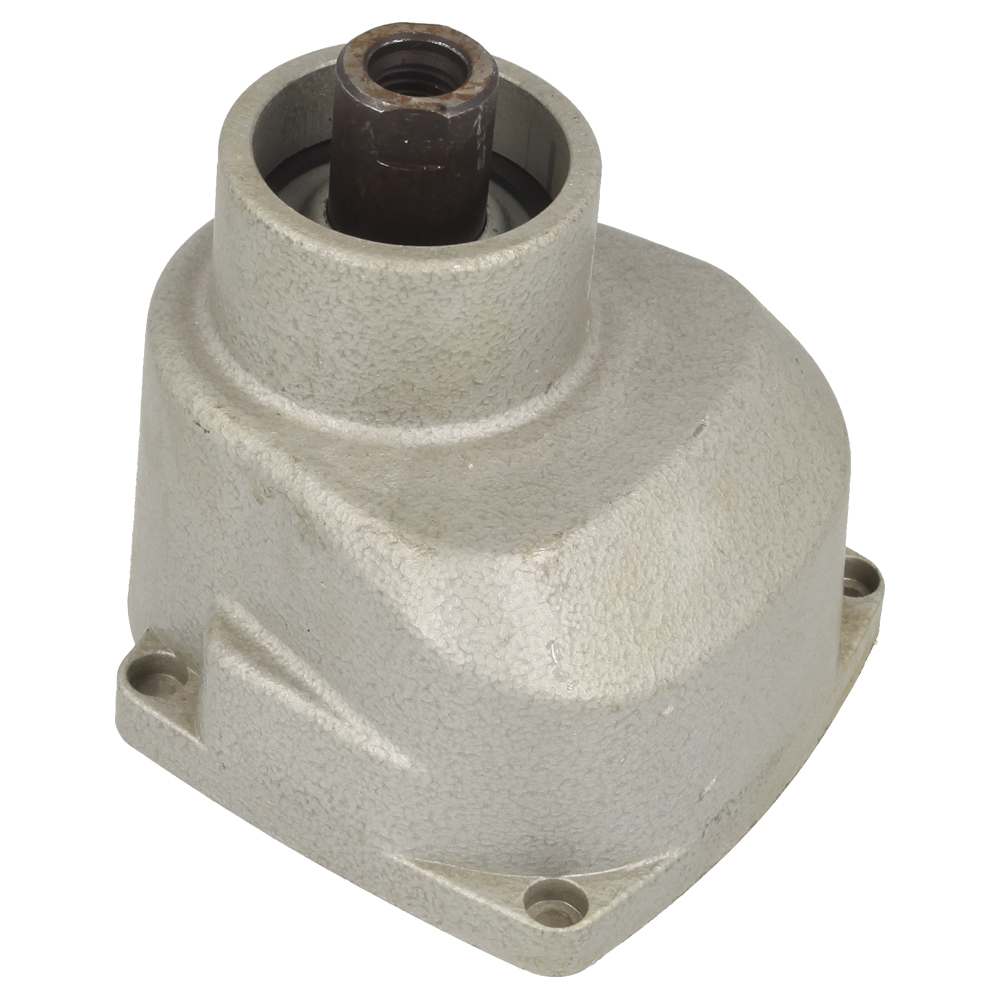

16	BE949/99510 Available to backorder	[16] - Bearing Cover	£20.32 £16.93
17	BE949/99511 Available to backorder	[17] - Spindle	£11.84 £9.87
18	BE949/99512 Available to backorder	[18] - Hemicycle Key 4 x 5 x 12	£0.48 £0.40
19	BE949/99513 Available to backorder	[19] - Safety Ring	£0.48 £0.40

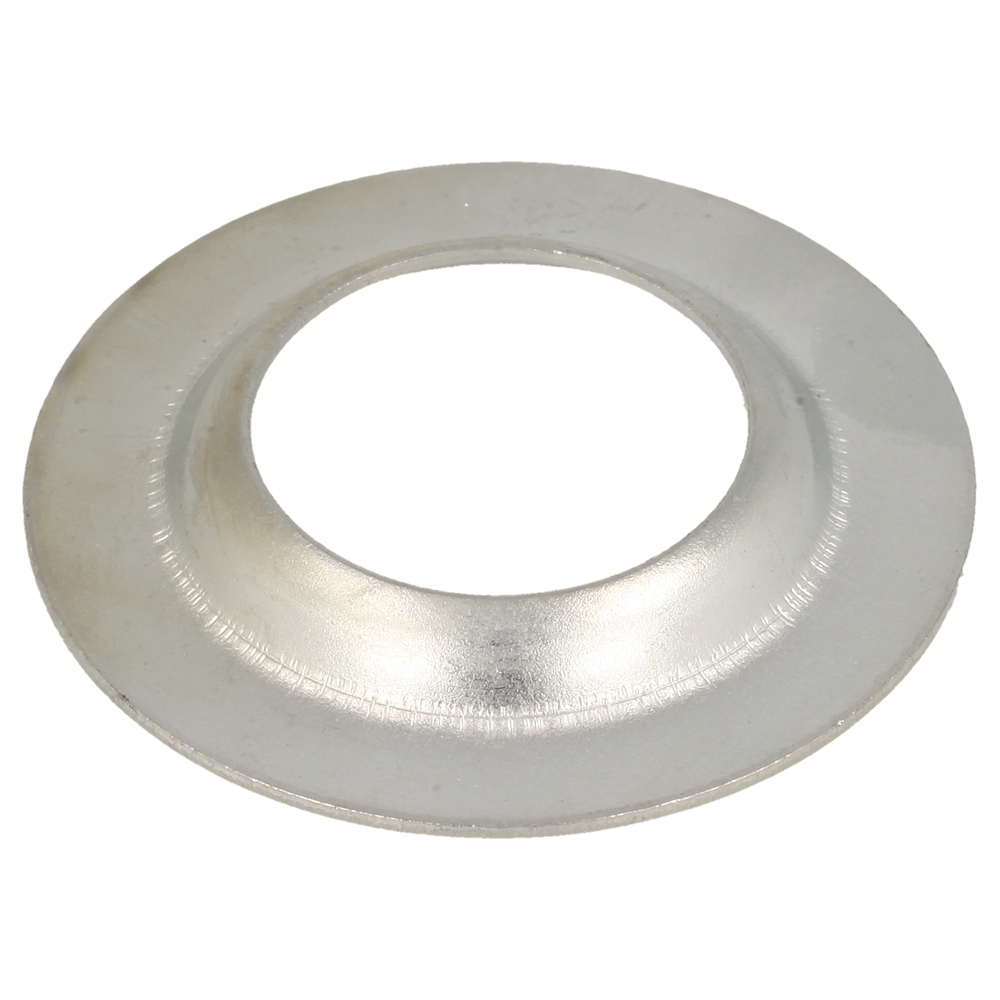

20	BE949/99514 Available to backorder	[20] - Dust Cover	£0.48 £0.40

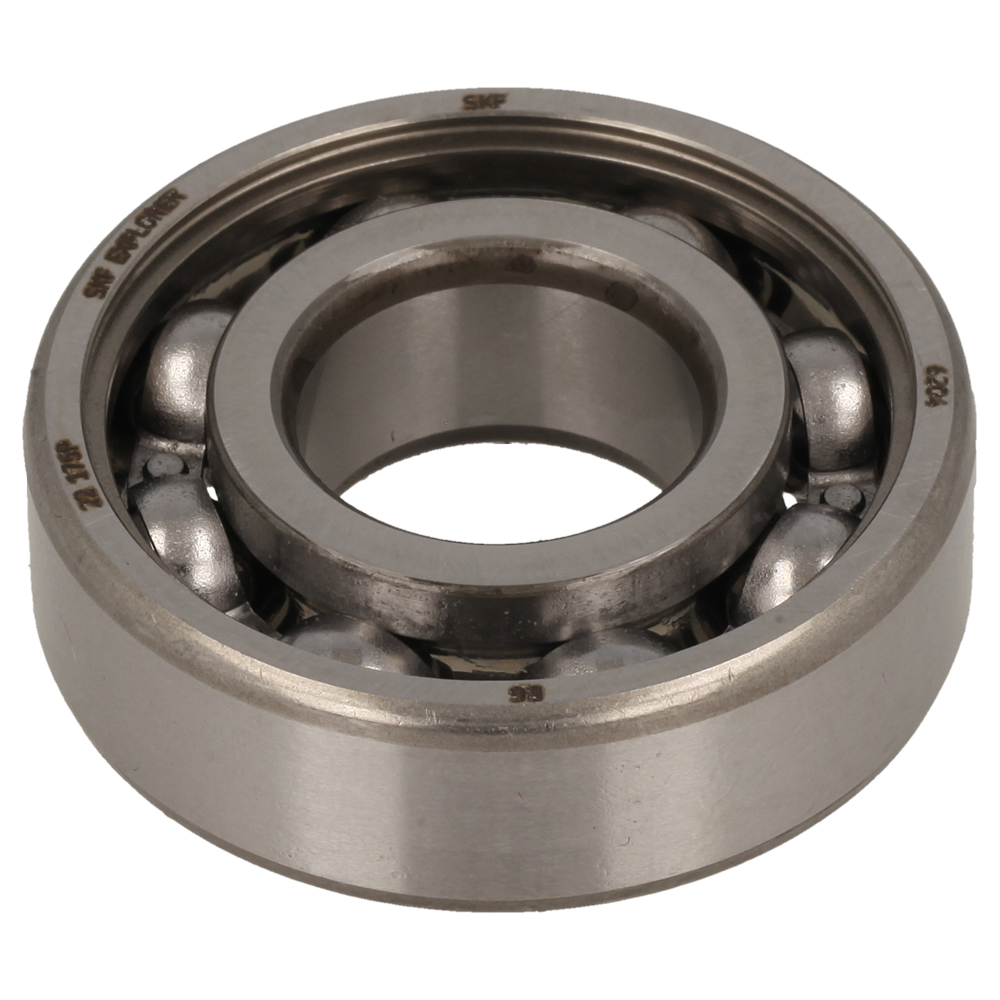

22	BE949/99516 Available to backorder	[22] - Bearing 6204Ddu	£4.66 £3.88
23	BE949/99517 Available to backorder	[23] - Spindle Gear	£14.96 £12.47

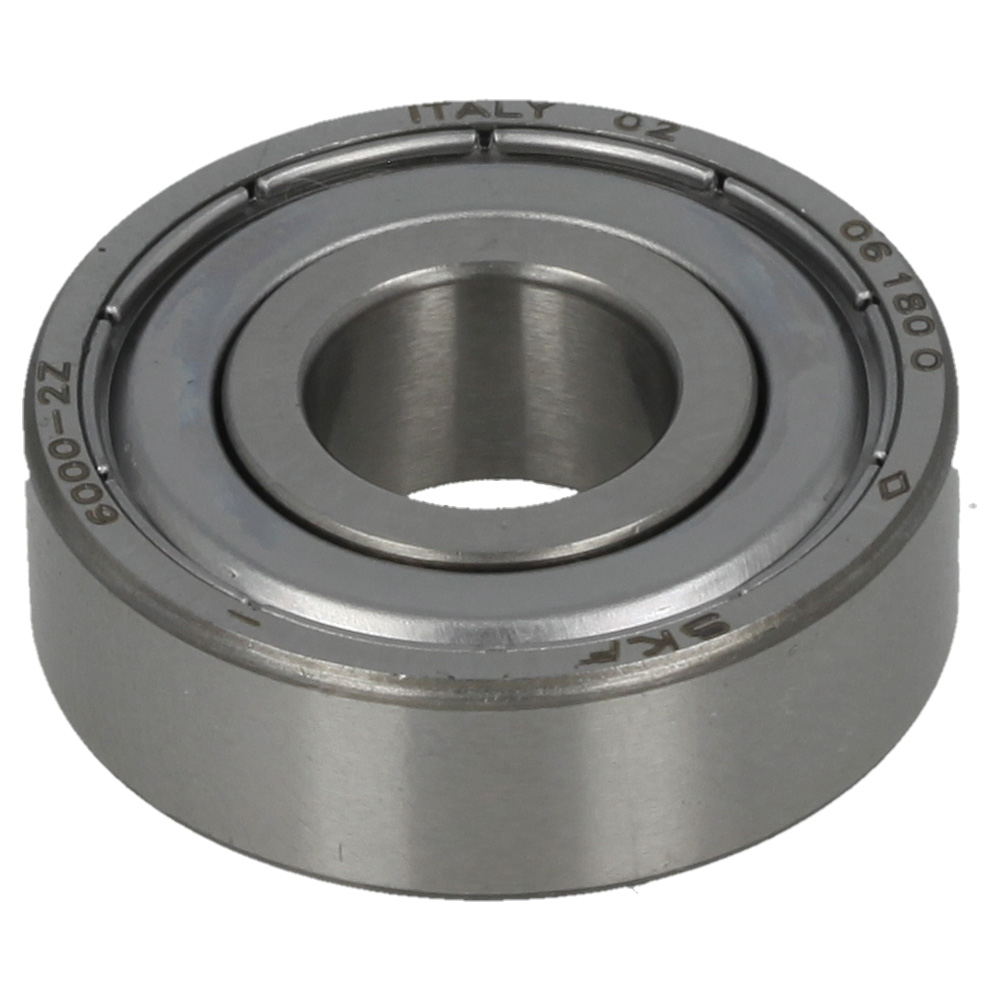

24	BE949/99518 Available to backorder	[24] - Bearing 6000Zz	£2.34 £1.95

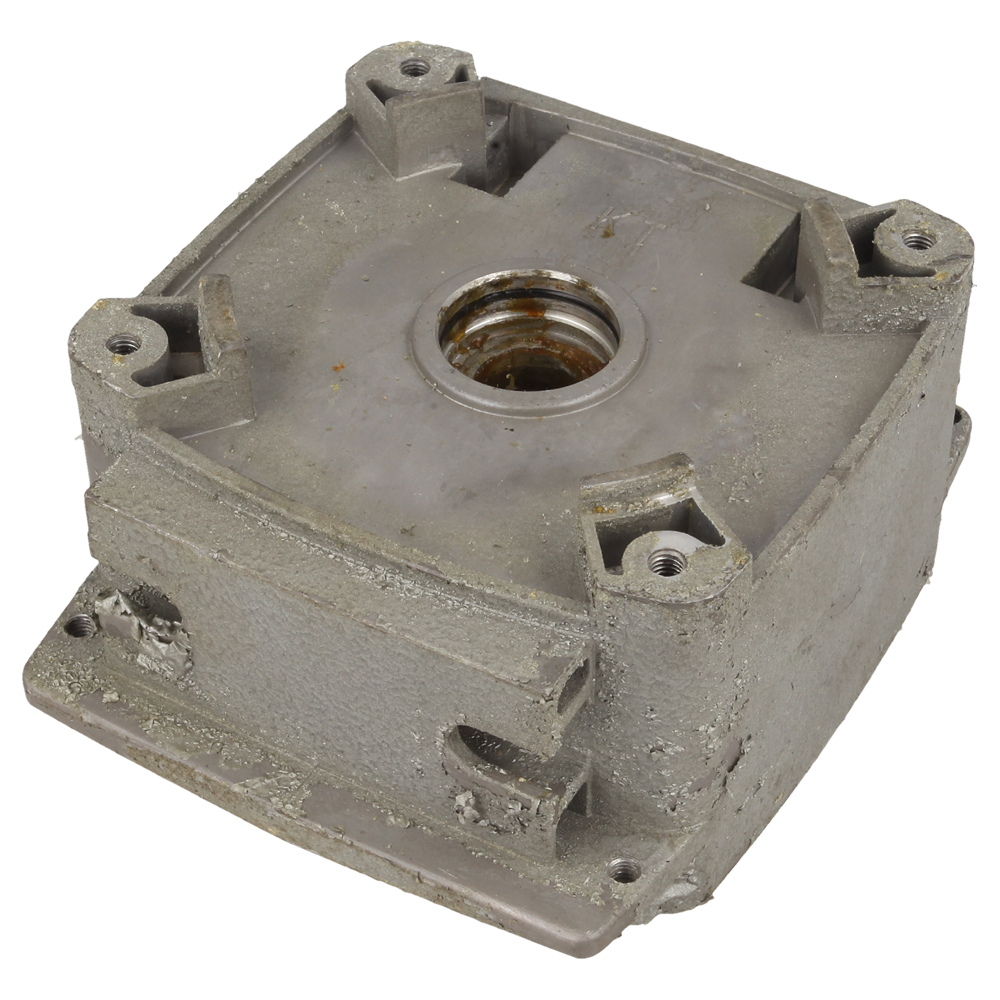

25	BE949/99519 Available to backorder	[25] - Gearbox	£22.32 £18.60
26	BE949/99520 Available to backorder	[26] - Seal Ring	£0.48 £0.40
26	BE949/99600 Available to backorder	[26] - Seal Ring 25.8*1.8	£0.68 £0.57
27	BE949/99521 Available to backorder	[27] - Bearing 6001Zz	£2.34 £1.95
27	BE949/99601 Available to backorder	[27] - Bearing 6000-2Rs	£7.34 £6.12
28	BE949/99576 Available to backorder	[28] - Armature Assy 1600W 110V 1600E - 110V	£89.64 £74.70

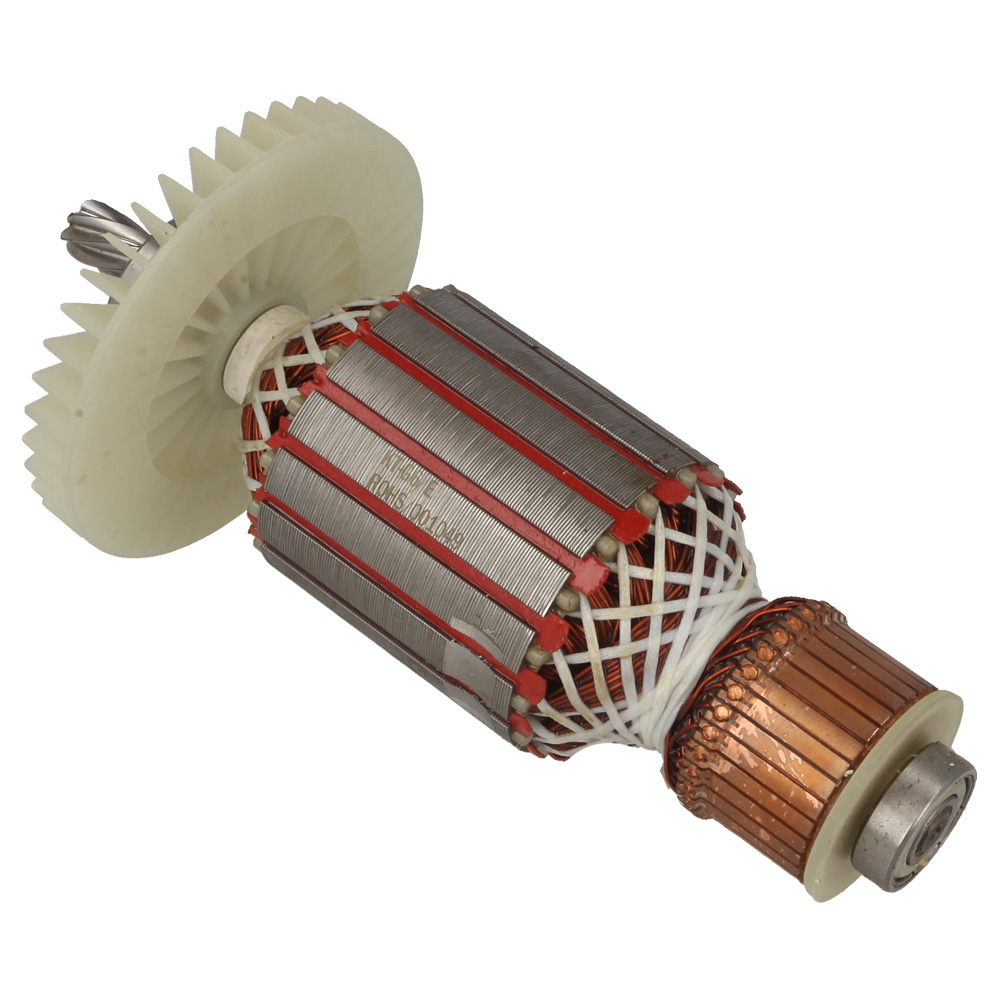

28	BE949/99522 Available to backorder	[28] - Armature Assy 1600W 230V 1600E - 230V	£91.74 £76.45
28	BE949/99577 Available to backorder	[28] - Armature Assy 1200W 110V 1200E - 110V	£58.74 £48.95
28	BE949/99557 Available to backorder	[28] - Armature Assy ( 1200W ) 230V 1200E - 230V	£56.58 £47.15
29	BE949/99523 Available to backorder	[29] - Pin	£0.48 £0.40

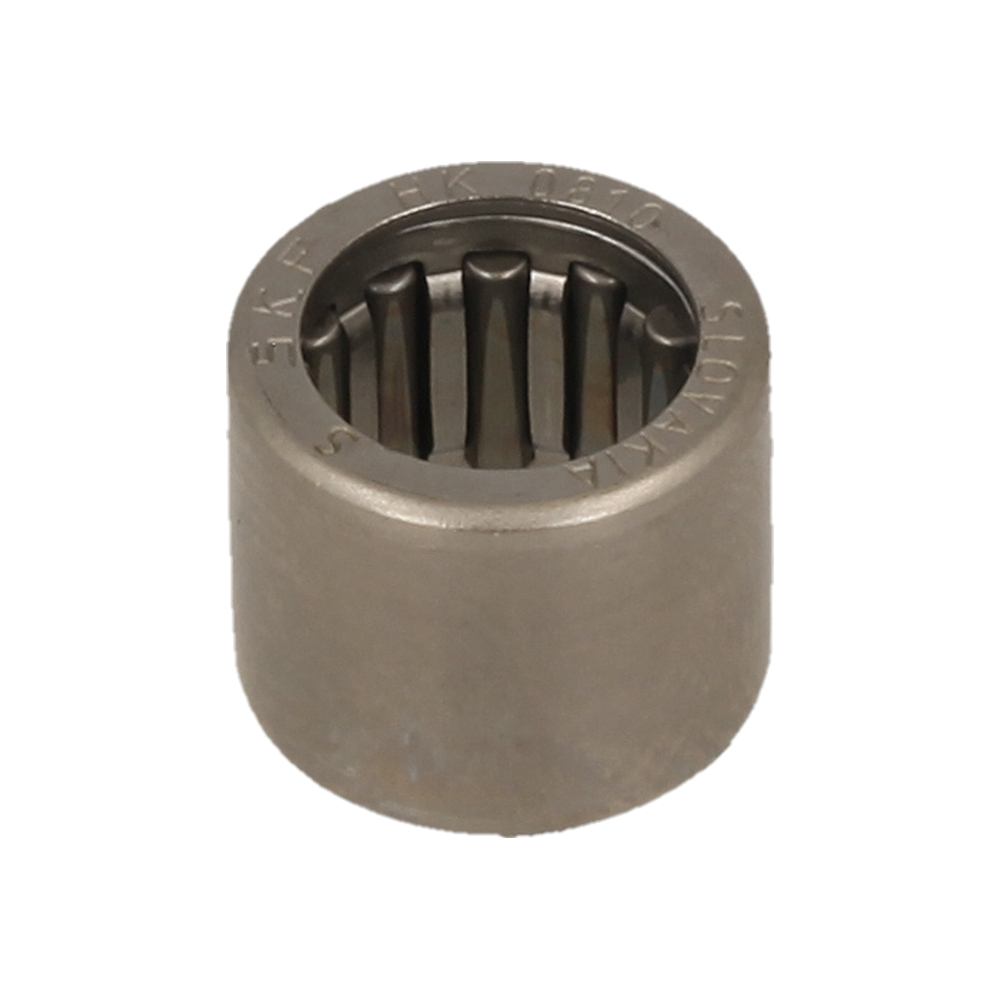

30	BE949/99524 Available to backorder	[30] - Neddle Bearing Hk0810	£0.85 £0.71
31	BE949/99525 Available to backorder	[31] - Countershaft	£25.62 £21.35
32	BE949/99526 Available to backorder	[32] - Motor Gear 1200E	£10.66 £8.88
32	BE949/99597 Available to backorder	[32] - Motor Gear Z 39 - 1600W 1600E	£11.12 £9.27
33	BE949/99562 Available to backorder	[33] -	£1.82 £1.52
34	BE949/99528 Available to backorder	[34] - Pinion	£6.44 £5.37
35	BE949/99529 Available to backorder	[35] - Parrallel Key	£0.48 £0.40
36	BE949/99530 Available to backorder	[36] - Spindle Double Gear	£21.38 £17.82

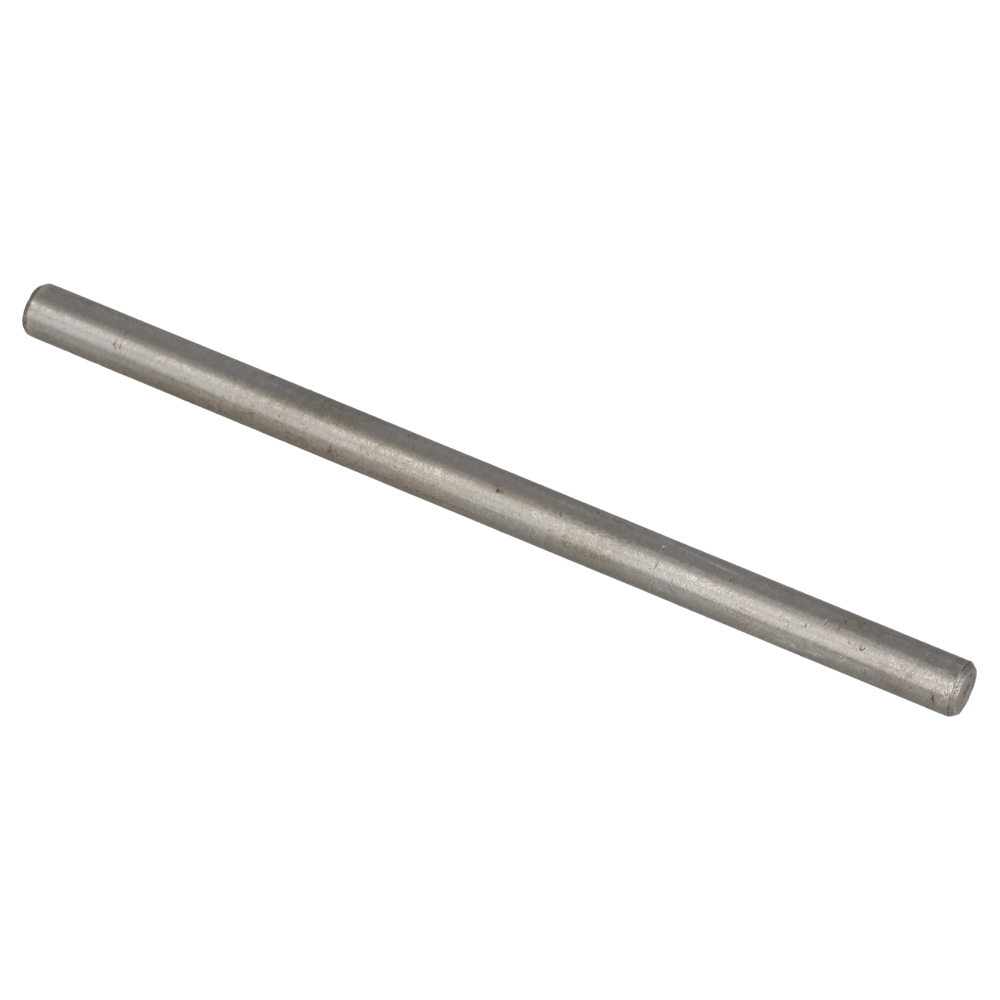

37	BE949/99531 Available to backorder	[37] - Pivot Pin	£0.74 £0.62
38	BE949/99532 Available to backorder	[38] - Coulisse	£1.02 £0.85

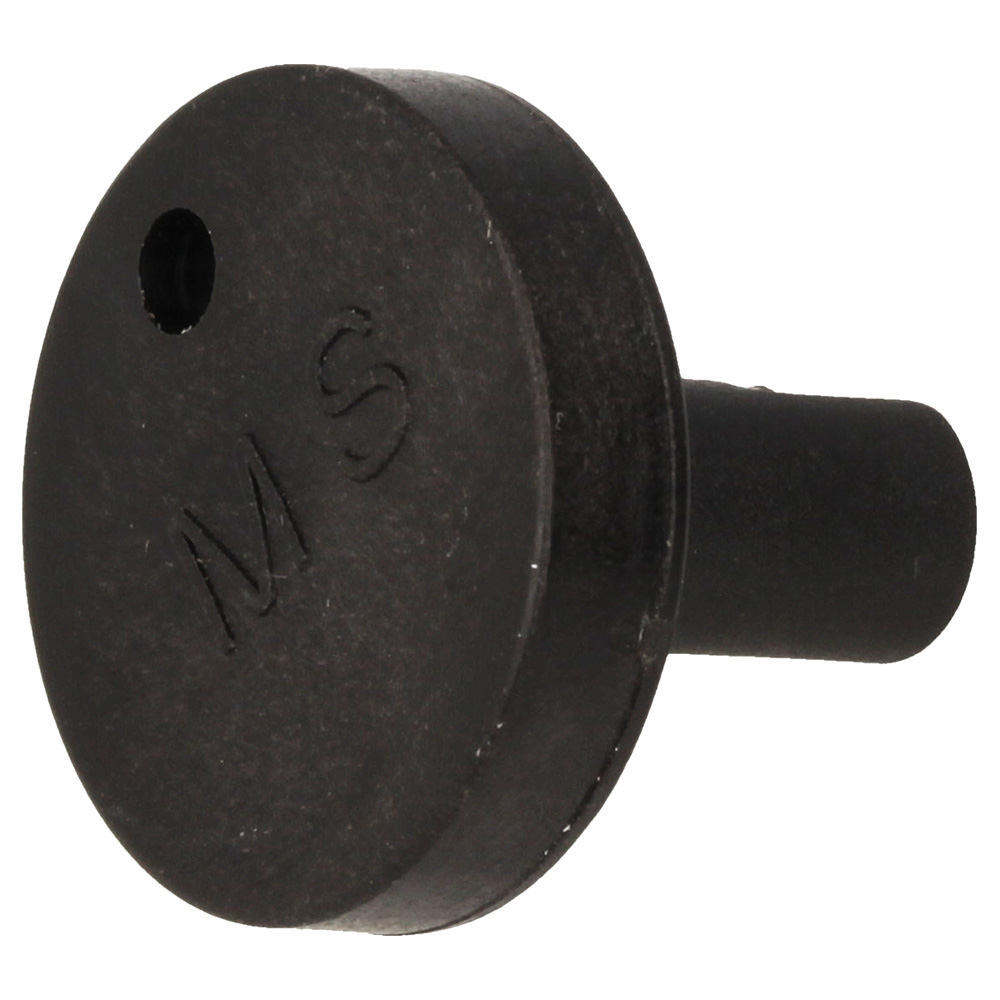

39	BE949/99533 Available to backorder	[39] - Pivot	£0.74 £0.62
40	BE8/8001 Available to backorder	[40] - Nut	£0.48 £0.40

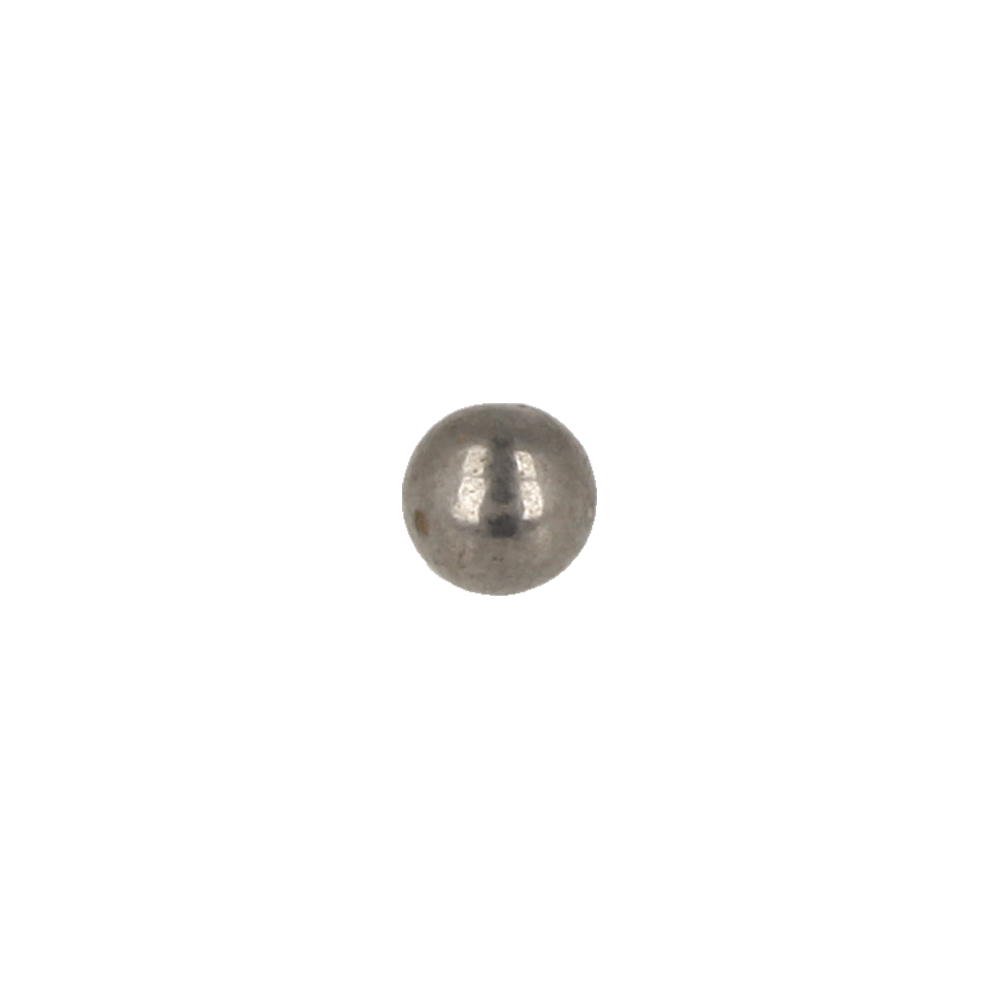

41	BE949/99534 Available to backorder	[41] - Bail	£0.48 £0.40

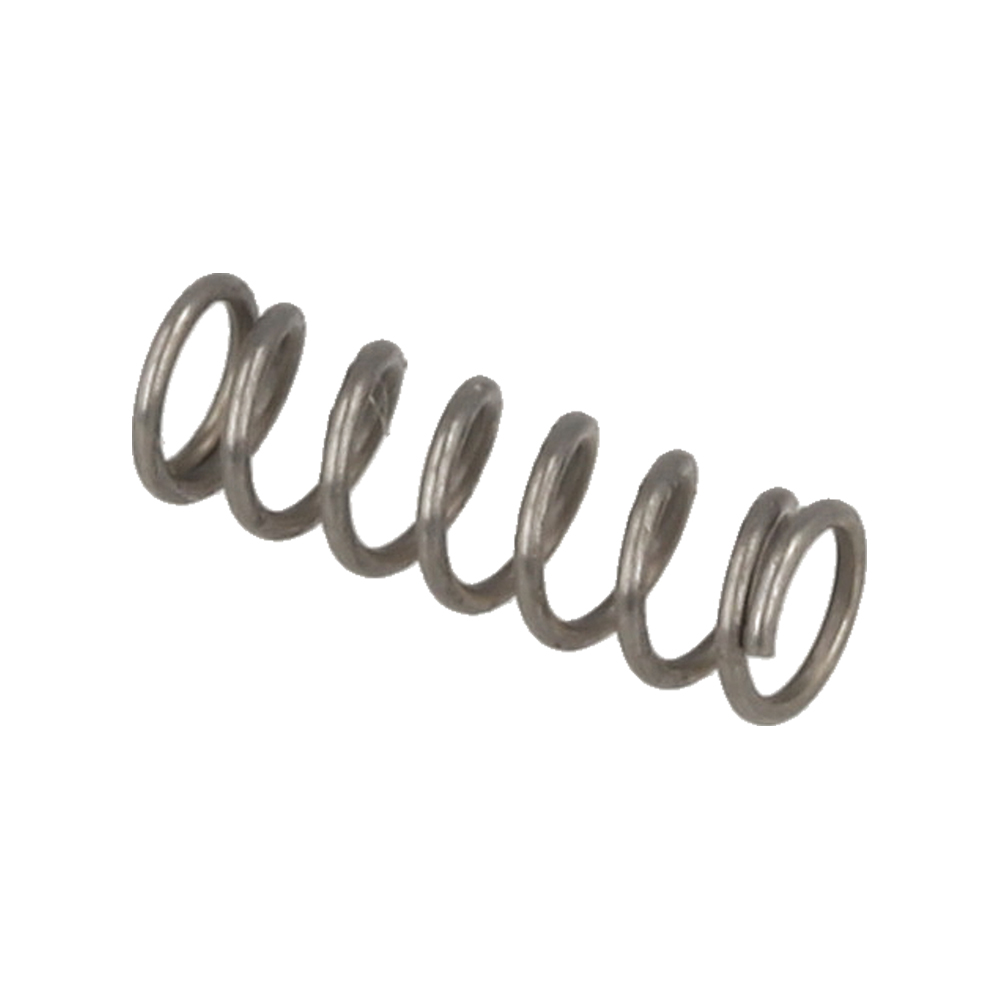

42	BE949/99535 Available to backorder	[42] - Spring	£0.85 £0.71
43	BE949/99536 Available to backorder	[43] - Lever	£0.74 £0.62
44	BE7/3010 Available to backorder	[44] - Screw	£0.48 £0.40
45	BE949/99537 Available to backorder	[45] - Airguide Shim	£0.68 £0.57
45	BE949/99602 Available to backorder	[45] - Airguide Shim M-Type	£1.38 £1.15
46	BE949/99603 Available to backorder	[46] - Screw St4x70	£0.68 £0.57
47	BE949/99604 Available to backorder	[47] - Safety Ring �10	£0.80 £0.67
48	BE949/99567 Available to backorder	[48] - Stator ( 1200W ) 230V 1200E - 230V	£36.40 £30.33
48	BE949/99579 Available to backorder	[48] - Stator 1200W 110V 1200E - 110V	£38.42 £32.02
48	BE949/99538 Available to backorder	[48] - Stator 1600W 230V 1600E - 230V	£51.20 £42.67

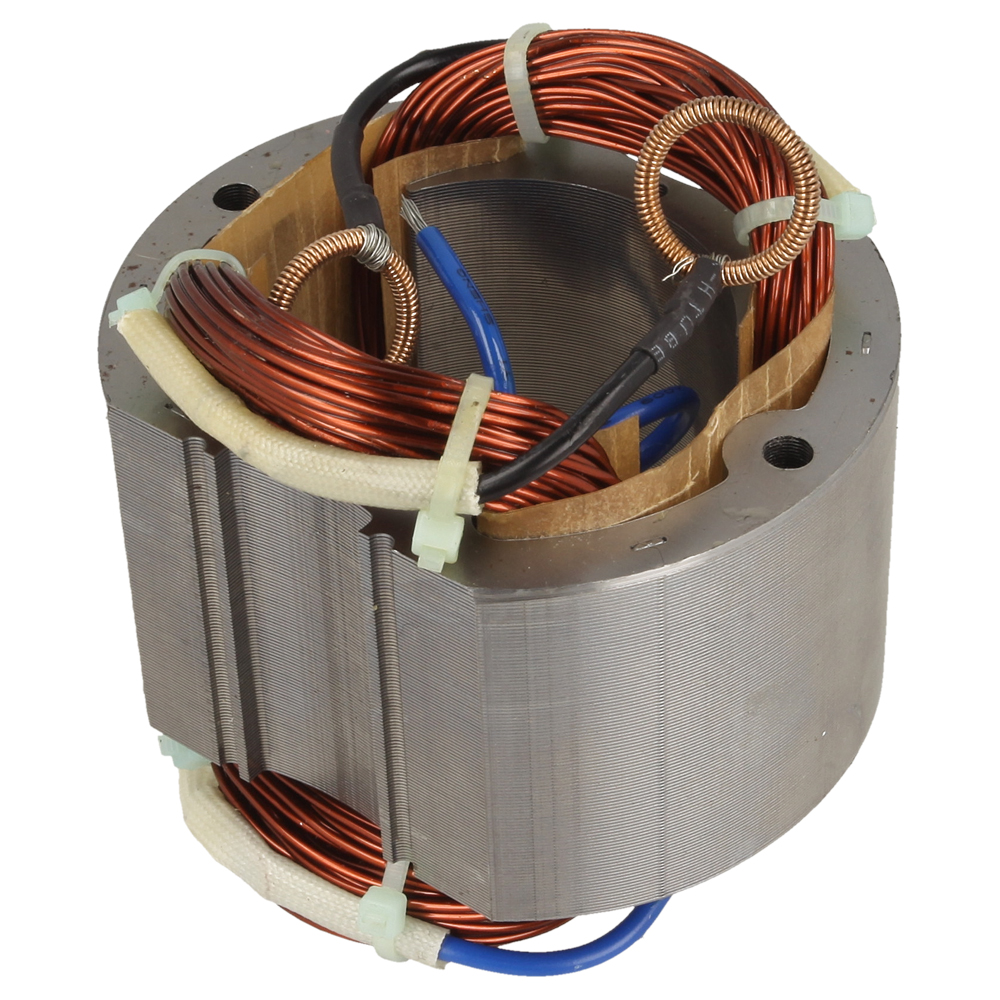

48	BE949/99578 Available to backorder	[48] - Stator 1600W 110V 1600E - 110V	£53.38 £44.48
49	BE949/99539 Available to backorder	[49] - Motor Box 1600E	£23.94 £19.95
49	BE949/99568 Available to backorder	[49] - Motor Box 1200E 1200E	£23.96 £19.97
50	BE7/5009 Available to backorder	[50] - Screw	£0.48 £0.40

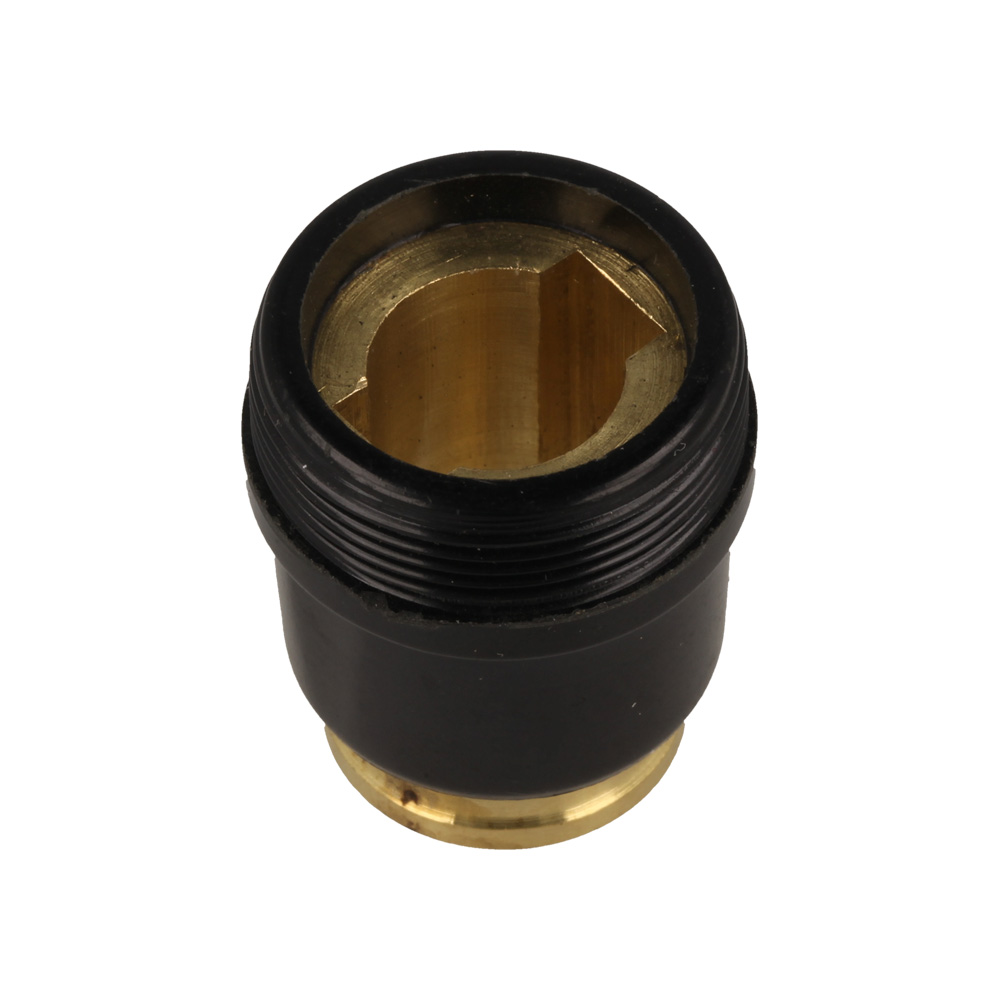

51	BE949/99540 Available to backorder	[51] - Brush Holder 1600E	£4.62 £3.85
51	BE949/99569 Available to backorder	[51] - Brush Holder ( 1200W ) 1200E	£3.48 £2.90
52	BE949/99541 Available to backorder	[52] - Brush ( 1600W ) 230V 1600E - 230V	£9.58 £7.98
52	BE949/99588 Available to backorder	[52] - Brush ( 1600W ) 110V (Set) 1600E - 110V	£9.58 £7.98
52	BE949/99589 Available to backorder	[52] - Brush ( 1200W ) 110V (Set) 1200E - 110V	£7.46 £6.22
52	BE949/99570 Available to backorder	[52] - Brush ( 1200W ) 230V 1200E - 230V	£7.46 £6.22

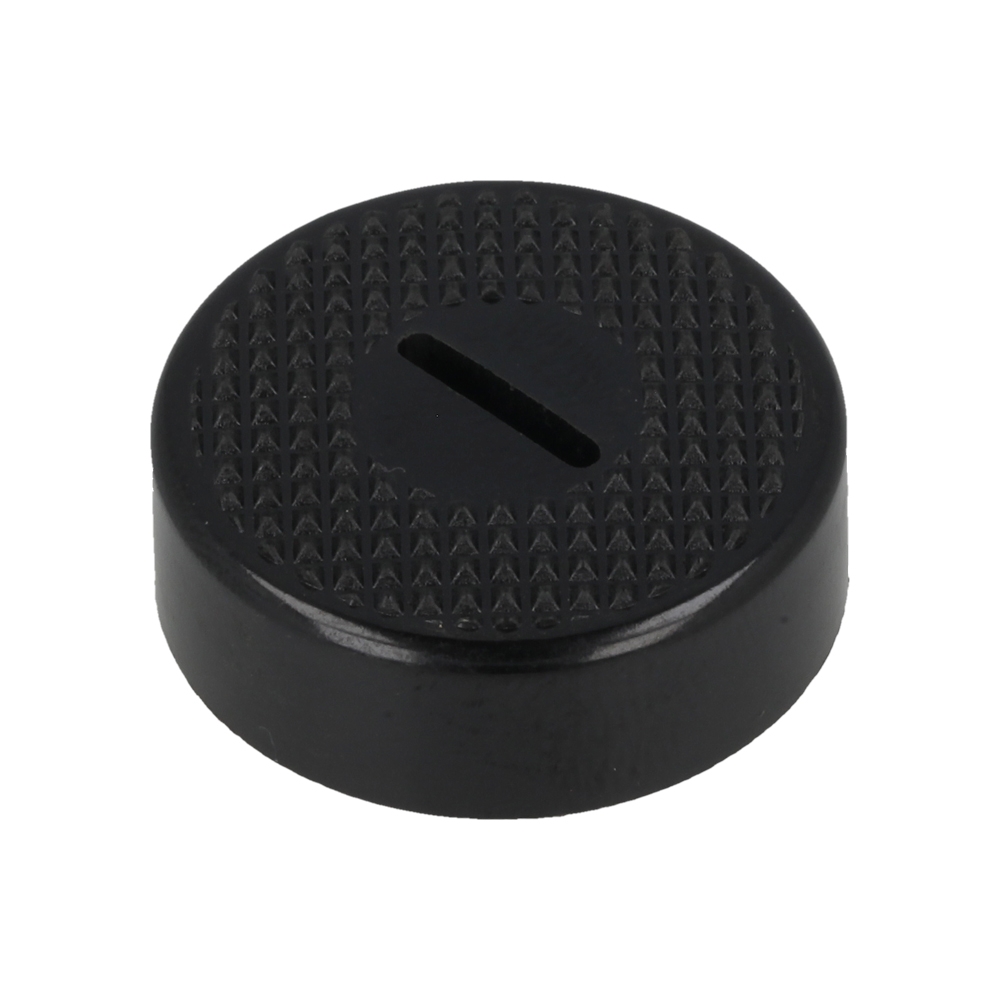

53	BE949/99542 Available to backorder	[53] - Set Of Brush Caps 1600E	£0.48 £0.40
53	BE949/99571 Available to backorder	[53] - Brush Cap ( 1200W ) 1200E	£0.68 £0.57
54	BE949/99590 Available to backorder	[54] - Controller 1200W 110V 1200E - 110V	£19.22 £16.02

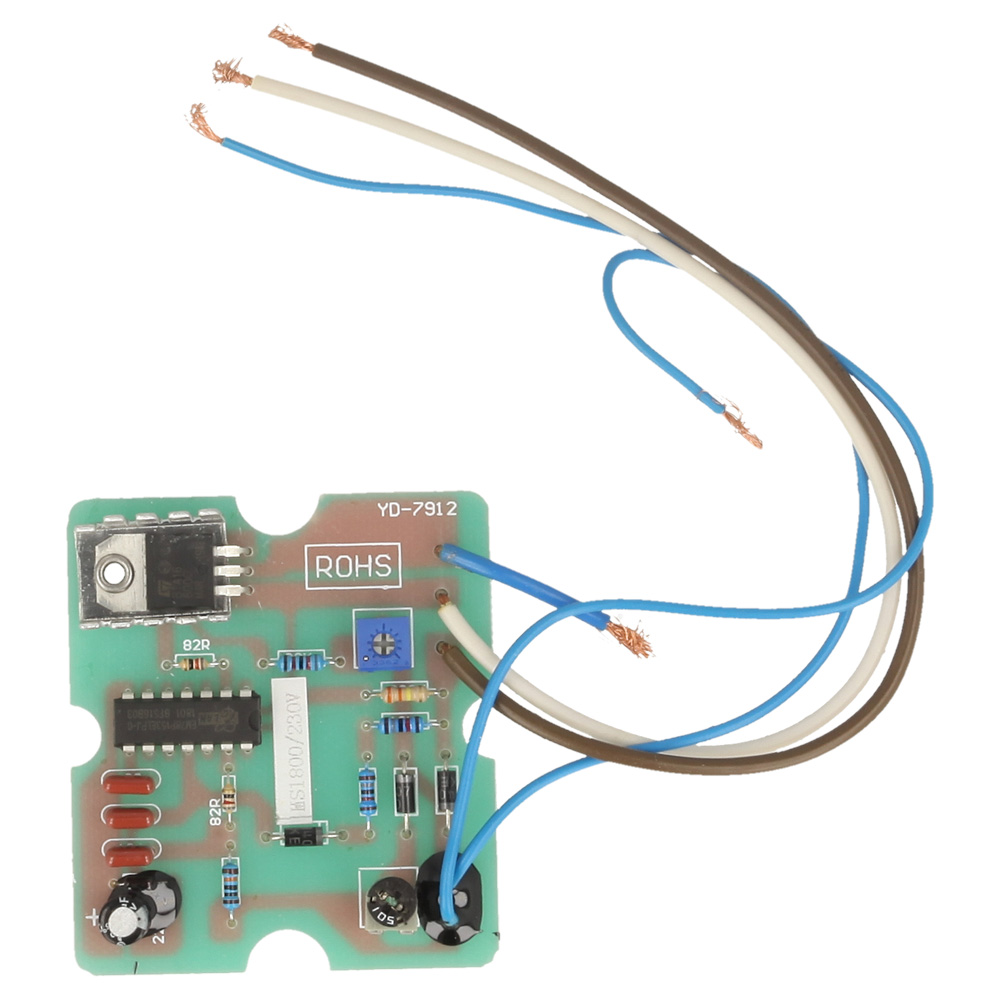

54	BE949/99543 Available to backorder	[54] - Controller 1600W 1600E - 230V	£57.60 £48.00
54	BE949/99572 Available to backorder	[54] - Controller 1200W 1200E - 230V	£52.64 £43.87
54	BE949/99591 Available to backorder	[54] - Controller 1600W 110V 1600E - 110V	£57.60 £48.00
55	BE949/99544 Available to backorder	[55] - Protective Guard	£0.48 £0.40
56	BE949/99574 Available to backorder	[56] - Rear Cover ( 1200W ) 1200E	£1.88 £1.57
56	BE949/99545 Available to backorder	[56] - Rear Cover 1600W 1600E	£4.26 £3.55
57	BE7/3009 Available to backorder	[57] - Screw	£0.48 £0.40
58	BE949/99581 Available to backorder	[58] - Cord 230V Eu Eu - 230V	£19.62 £16.35
58	BE949/99575 Available to backorder	[58] - Cord Uk 110V Uk - 110V	£23.62 £19.68

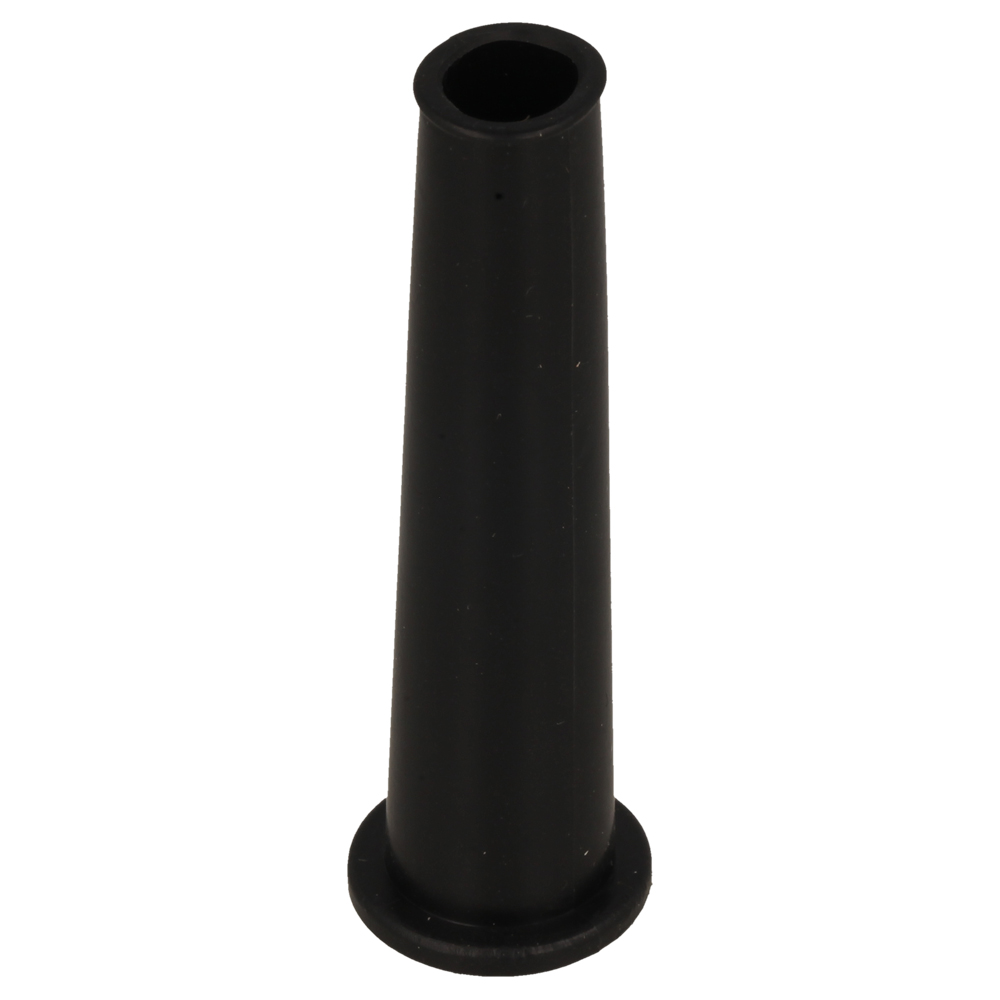

59	BE949/99547 Available to backorder	[59] - Sleeve	£0.72 £0.60
60	BE949/99582 Available to backorder	[60] - Safety Ring	£0.48 £0.40

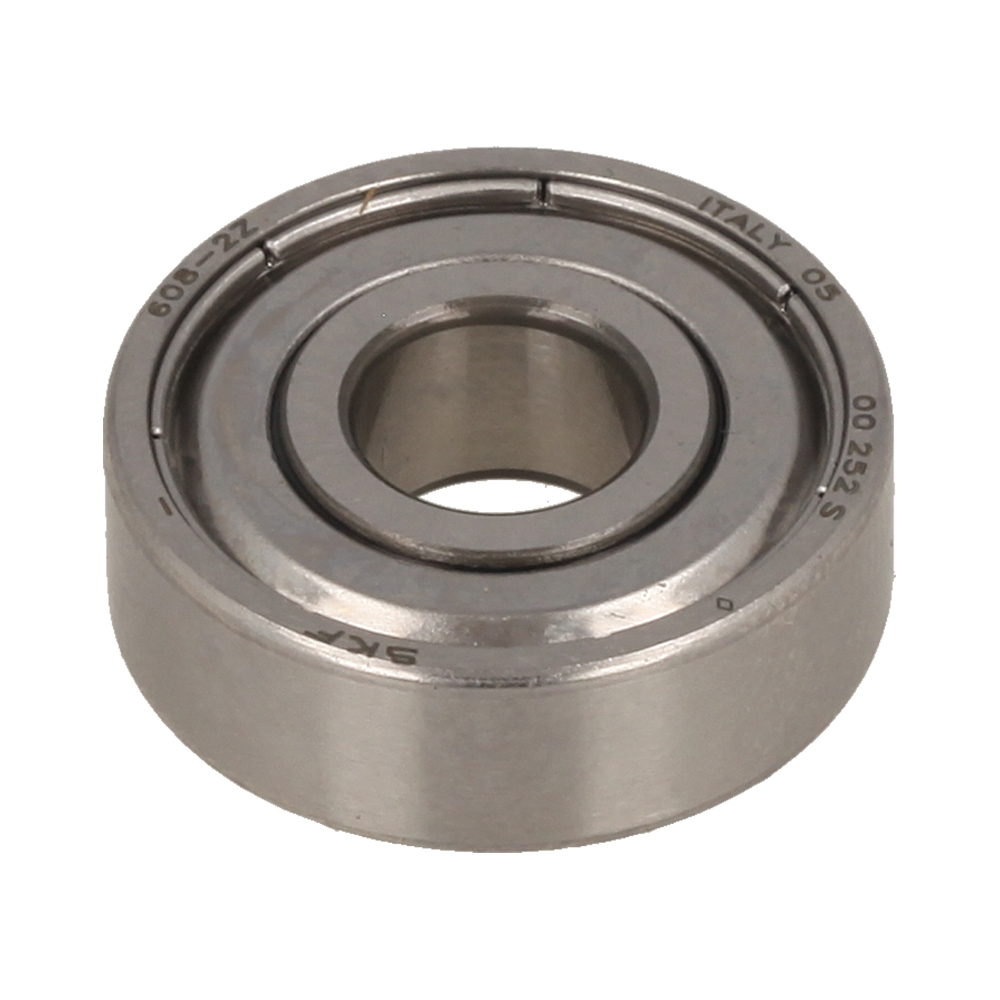

61	BE949/99527 Available to backorder	[61] - Bearing 608Zz	£1.82 £1.52
62	BE949/99583 Available to backorder	[62] - Safety Ring	£0.48 £0.40
63	BE949/99558 Available to backorder	[63] - Hemicycle Key 2.5 x 3.7 x 10	£0.48 £0.40
64	BE949/99605 Available to backorder	[64] - Spacer 0.8 1200E	£1.40 £1.17
