Belle Pro Screed - Pneumatic Sections - 7.6ft

Belle Pro Screed - Pneumatic Sections - 7.6ft
Belle Pro Screed - Pneumatic Sections - 7.6ft

Description

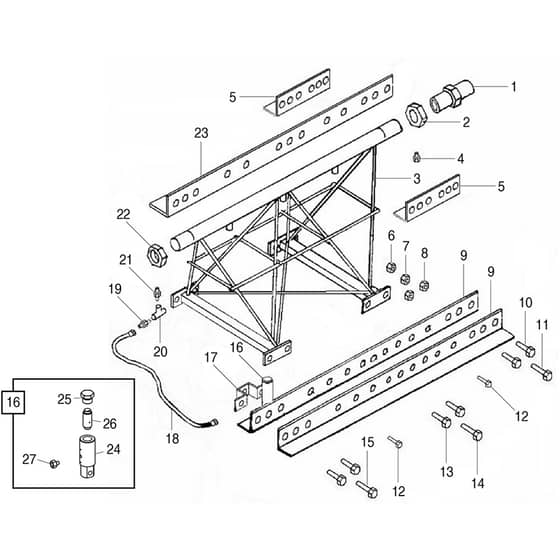

Belle Pro Screed - Pneumatic Sections - 7.6ft - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Top Pipe Coupler
[1] - Top Pipe Coupler
BE102.07.000
Available to backorder
[1] - Top Pipe Coupler
£61.62 £51.35

  2 [2] - Jam Nut L.H.
[2] - Jam Nut L.H.
BE102.08.001
Available to backorder
[2] - Jam Nut L.H.
£14.86 £12.38

  3 [3] - 7'6
[3] - 7'6
BE102.00.200
Available to backorder
[3] - 7'6" Frame Assy
£1,309.20 £1,091.00

  4 [4] - Oil Drain Plug - 1/4
[4] - Oil Drain Plug - 1/4
BE14.0.034
Available to backorder
[4] - Oil Drain Plug - 1/4"Bsp
£4.80 £4.00

  5 [5] - Blade Splice Plate
[5] - Blade Splice Plate
BE102.06.001
Available to backorder
[5] - Blade Splice Plate
£26.60 £22.17

  6 [6] - Philidas Nut 1/2
[6] - Philidas Nut 1/2
BE102.11.491
Available to backorder
[6] - Philidas Nut 1/2" Unf
£2.60 £2.17

  7 [7] - Nut 1/2
[7] - Nut 1/2
BE01.3.004
Available to backorder
[7] - Nut 1/2" Unf Bzp
£0.37 £0.31

  8 [8] - Nut 1/2
[8] - Nut 1/2
BE01.4.004
Available to backorder
[8] - Nut 1/2" Unc
£0.48 £0.40

  9 [9] - Screed Blade 7.5'
[9] - Screed Blade 7.5'
BE102.02.001
Available to backorder
[9] - Screed Blade 7.5'
£75.86 £63.22

  10 [10] - Setscrew 1/2
[10] - Setscrew 1/2
BE02.4.055
Available to backorder
[10] - Setscrew 1/2" x 1 1/4" Unc Ht
£1.43 £1.19

  11 [11] - Bolt 1/2
[11] - Bolt 1/2
BE00.3.060
Available to backorder
[11] - Bolt 1/2" x 2 1/2" Unf Bzp
£2.22 £1.85

  12 [12] - Setscrew 1/2
[12] - Setscrew 1/2
BE02.3.063
Available to backorder
[12] - Setscrew 1/2" x 3/4" Unf Bzp
£2.24 £1.87

  13 [13] - Setscrew 1/2
[13] - Setscrew 1/2
BE02.4.053
Available to backorder
[13] - Setscrew 1/2" x 1" Unc Bzp
£1.08 £0.90

  14 [14] - Bolt 1/2
[14] - Bolt 1/2
BE00.3.061
Available to backorder
[14] - Bolt 1/2"x 2 3/4" Unf Bzp
£2.60 £2.17

  15 [15] - Bolt 1/2
[15] - Bolt 1/2
BE102.11.489
Available to backorder
[15] - Bolt 1/2"Unf x 3" Ht Bzp
£1.64 £1.37

  16 [16] - Pneumatic Vibrator
[16] - Pneumatic Vibrator
BE102.11.000
Available to backorder
[16] - Pneumatic Vibrator
£153.72 £128.10

  17 [17] - Vib Mounting Bracket
[17] - Vib Mounting Bracket
BE102.20.053
Available to backorder
[17] - Vib Mounting Bracket
£31.82 £26.52

  18 [18] - Air Hose Assy - 24
[18] - Air Hose Assy - 24
BE102.32.000
Available to backorder
[18] - Air Hose Assy - 24"Lg 1/47"T/M
£32.24 £26.87

  19 [19] - Adaptor (60 Deg One Seat Type)
[19] - Adaptor (60 Deg One Seat Type)
BE14.0.594
Available to backorder
[19] - Adaptor (60 Deg One Seat Type)
£8.12 £6.77

  20 [20] - Tee Piece 1/4
[20] - Tee Piece 1/4
BE14.0.519
Available to backorder
[20] - Tee Piece 1/4"Bsp Mi
£11.44 £9.53

  21 [21] - Nipple 1/4
[21] - Nipple 1/4
BE14.0.013
Available to backorder
[21] - Nipple 1/4" Hex
£7.60 £6.33

  22 [22] - Jam Nut R.H
[22] - Jam Nut R.H
BE102.08.000
Available to backorder
[22] - Jam Nut R.H
£14.86 £12.38

  23 [23] - Bull Float Blade 7.5 Feet
[23] - Bull Float Blade 7.5 Feet
BE102.04.001
Available to backorder
[23] - Bull Float Blade 7.5 Feet
£82.44 £68.70

  24 [24] - Vibrator Housing
[24] - Vibrator Housing
BE102.11.000/1
Available to backorder
[24] - Vibrator Housing
£119.04 £99.20

  25 [25] - Vibrator Plug
[25] - Vibrator Plug
BE102.11.000/2
Available to backorder
[25] - Vibrator Plug
£19.97 £16.64

  26 [26] - Piston
[26] - Piston
BE102.11.000/3
Available to backorder
[26] - Piston
£51.60 £43.00

  27 [27] - Reducer
[27] - Reducer
BE102.11.000/4
Available to backorder
[27] - Reducer
£18.10 £15.08


Description

Belle Pro Screed - Pneumatic Sections - 7.6ft - Parts Diagram
