Belle Pro 600X - Main Assembly (Petrol) (From MT01991448)

Name: Belle Pro 600X - Main Assembly (Petrol) (From MT01991448)
SKU: Pro600XMainPetrolFromMT01991448-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Pro 600X - Main Assembly (Petrol) (From MT01991448)

Description

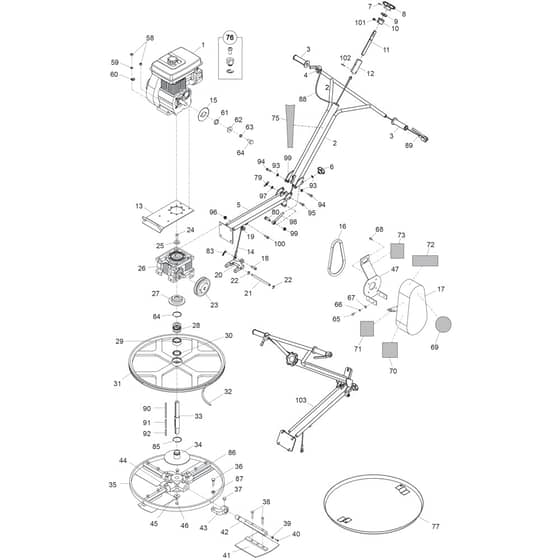

Belle Pro 600X - Main Assembly (Petrol) (From MT01991448) - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	BE945/99606 Available to backorder	[2] - Steering Arm - Upper	£189.36 £157.80
3	BE945/99545 Available to backorder	[3] - Handle Grip Dia 21mm	£19.64 £16.37
4	BE945/99607 Available to backorder	[4] - Gas Throttle Lever	£87.24 £72.70
5	BE945/99618 Available to backorder	[5] - Steering Arm - Lower	£269.28 £224.40
6	BE945/99614 Available to backorder	[6] - Blade Adjustment Knob	£24.26 £20.22
7	BE945/99608 Available to backorder	[7] - Pin	£3.34 £2.78
8	BE945/99501 Available to backorder	[8] - Blade Adjustment Wheel	£78.64 £65.53
9	BE53/0033 Available to backorder	[9] - Bearing (T77)	£42.38 £35.32
10	BE945/99502 Available to backorder	[10] - Aluminium Housings	£75.34 £62.78
11	BE945/99610 Available to backorder	[11] - Blade Adjustment Shaft	£42.52 £35.43
12	BE945/99611 Available to backorder	[12] - Sliding Sleeve	£170.00 £141.67
13	BE945/00100 Available to backorder	[13] - 600 Trowel Engine Plate Wa	£251.52 £209.60
14	BE945/99613 Available to backorder	[14] - Control Cable	£63.84 £53.20
16	BE945/99523 Available to backorder	[16] - Clutch Complete	£333.72 £278.10
17	BE945/99507 Available to backorder	[17] - Belt Cover	£49.20 £41.00
18	BE945/99621 Available to backorder	[18] - Screw	£15.84 £13.20
19	BE945/99620 Available to backorder	[19] - Roller	£20.48 £17.07
20	BE945/99510 Available to backorder	[20] - Yoke Arm	£125.08 £104.23
21	BE945/99511 Available to backorder	[21] - Yoke Shaft	£26.92 £22.43
22	BE945/99552 Available to backorder	[22] - Circlip	£3.86 £3.22
23	BE945/99543 Available to backorder	[23] - Pulley	£259.80 £216.50
24	BE945/99538 Available to backorder	[24] - Screw M10 x 20 H.B.C	£29.58 £24.65
25	BE4/3801 Available to backorder	[25] - Washer	£0.48 £0.40
26	BE945/99512 Available to backorder	[26] - Gearbox	£1,036.80 £864.00
27	BE945/99513 Available to backorder	[27] - Pressure Plate	£125.08 £104.23
28	BE53/0036 Available to backorder	[28] - Bearing ( 51107 )	£79.18 £65.98
29	BE53/0035 Available to backorder	[29] - Trust Bearing ( Nkj 40x20 )	£101.88 £84.90
30	BE53/0034 Available to backorder	[30] - Bearing ( 611808 )	£88.86 £74.05
31	BE945/99514 Available to backorder	[31] - Aluminium Ring	£379.20 £316.00
32	BE945/99544 Available to backorder	[32] - V Belt ( 13 x 1850 )	£51.68 £43.07
33	BE945/99515 Available to backorder	[33] - Main Shaft	£192.48 £160.40
34	BE945/99516 Available to backorder	[34] - Pressure Cap	£100.08 £83.40
35	BE945/99517 Available to backorder	[35] - Circle Plate	£62.54 £52.12
36	BE945/99539 Available to backorder	[36] - Screw ( M10 x 30 S.C.B )	£29.58 £24.65
37	BE7/10028 Available to backorder	[37] - Screw	£29.14 £24.28
38	BE02.0.019 Available to backorder	[38] - Setscrew M6 x 40 Ht Bzp	£0.48 £0.40
39	BE4/1611 Available to backorder	[39] - Washer	£27.22 £22.68
40	BE07.0.106 Available to backorder	[40] - Skt Hd Countersunk M8 x 20 Bzp	£3.56 £2.97
41	BE945/99518 Available to backorder	[41] - 600x Finish Blades - Metric	£123.66 £103.05
42	BE945/99519 Available to backorder	[42] - Blade Arm Set Of Four	£271.08 £225.90
43	BE945/99520 Available to backorder	[43] - Lift Lever Set Of Four	£267.96 £223.30
44	BE945/99521 Available to backorder	[44] - Spider Plate	£456.00 £380.00
45	BE4/1012 Available to backorder	[45] - Washer	£21.82 £18.18
46	BE945/99542 Available to backorder	[46] - Screw ( M5 x 10 Hic )	£7.38 £6.15
47	BE945/99522 Available to backorder	[47] - Pressing 600 Backplate	£31.32 £26.10
58	BE8/8001 Available to backorder	[58] - Nut	£0.48 £0.40
59	BE4/8006 Available to backorder	[59] - Washer M8	£0.48 £0.40
60	BE900/10200 Available to backorder	[60] - Clip Cable No.6	£2.98 £2.48
61	BE945/99551 Available to backorder	[61] - Clutch Spacer	£15.04 £12.53
62	BE05.3.062 Available to backorder	[62] - Washer	£2.06 £1.72
63	BE4/8003 Available to backorder	[63] - Washer M8	£0.71 £0.59
64	BE02.3.020 Available to backorder	[64] - Setscrew 5/16" x 1" Unf Bzp	£0.68 £0.57
65	BE02.0.012 Available to backorder	[65] - Setscrew M6x16 Now Use 9/6001	£0.48 £0.40
66	BE4/6005 Available to backorder	[66] - Washer M6	£0.48 £0.40
67	BE05.3.066 Available to backorder	[67] - Washer M6	£0.74 £0.62
68	BE7/5174 Available to backorder	[68] - Screw	£1.58 £1.32
72	BE19.0.230 Available to backorder	[72] - Warning Label Rotary Trowel	£3.32 £2.77
73	BE800/99986 Available to backorder	[73] - Decal Lifting Point	£1.94 £1.62
75	BE800/99973 Available to backorder	[75] - Losange Pro 600-x	£22.58 £18.82
76	BE21/0243 Available to backorder	[76] - Cable Holder	£6.42 £5.35
77	BE945/00200 Available to backorder	[77] - Trowel Pan 600	£110.76 £92.30
78	BE945/99554 Available to backorder	[78] - Steering Rubber	£37.94 £31.62
79	BE01.0.500 Available to backorder	[79] - Wing Nut M10	£0.86 £0.72
80	BE9/12001 Available to backorder	[80] - Bolt	£1.04 £0.87
81	BE945/99566 Available to backorder	[81] - Bolt	£7.58 £6.32
82	BE945/99567 Available to backorder	[82] - Washer	£3.76 £3.13
83	BE945/99622 Available to backorder	[83] - Cotter Pin 3 x 50	£5.76 £4.80
84	BE945/99587 Available to backorder	[84] - Retaining Ring	£3.48 £2.90
85	BE945/99588 Available to backorder	[85] - Retaining Ring	£3.48 £2.90
86	BE945/99589 Available to backorder	[86] - Spider Screw	£13.58 £11.32
87	BE945/99590 Available to backorder	[87] - Check Nut	£3.38 £2.82
88	BE945/99603 Available to backorder	[88] - Pro 600x Throttle Cable	£22.86 £19.05
89	BE945/99604 Available to backorder	[89] - Pro 600x	£221.52 £184.60
90	BE945/99636 Available to backorder	[90] - Key	£22.76 £18.97
91	BE945/99569 Available to backorder	[91] - Key	£44.06 £36.72
92	BE945/99585 Available to backorder	[92] - Key	£3.48 £2.90
93	BE945/99615 Available to backorder	[93] - Washer M10	£3.34 £2.78
94	BE945/99616 Available to backorder	[94] - Bolt M12 x 25	£5.76 £4.80
95	BE7/12024 Available to backorder	[95] - Screw	£5.56 £4.63
96	BE8/10006 Available to backorder	[96] - Nut	£0.48 £0.40
97	BE945/99617 Available to backorder	[97] - Washer M10	£3.34 £2.78
98	BE945/99619 Available to backorder	[98] - Bolt M12 x 100	£5.76 £4.80
99	BE8/12006 Available to backorder	[99] - Nut	£0.48 £0.40
100	BE9/10030 Available to backorder	[100] - Bolt	£0.68 £0.57
101	BE945/99609 Available to backorder	[101] - Hex. Bolt M8 x 10	£3.34 £2.78
102	BE945/99612 Available to backorder	[102] - Pin	£3.34 £2.78
103	BE945/99605 Available to backorder	[103] - Steering Arm - Complete	£626.40 £522.00
