Belle Pro 600X - Main Assembly (Electric)

Description

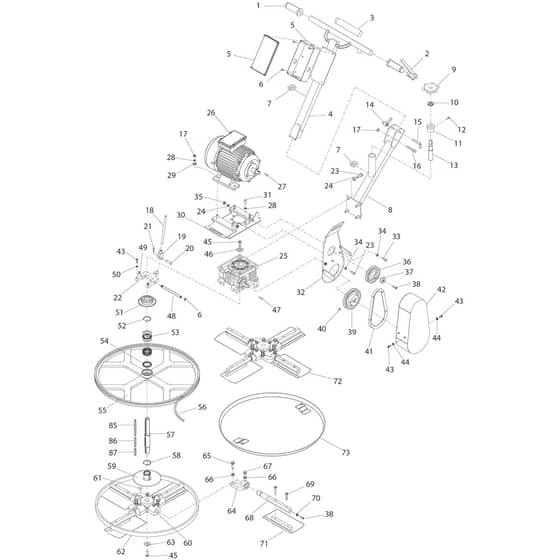

Belle Pro 600X - Main Assembly (Electric) - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE945/99545 Available to backorder	[1] - Handle Grip Dia 21mm	£19.64 £16.37
2	BE945/99553 Available to backorder	[2] - Electric Stop Handle	£132.14 £110.12
3	BE945/99554 Available to backorder	[3] - Steering Rubber	£37.94 £31.62
4	BE945/99555 Available to backorder	[4] - Steering Upper Part	£186.98 £155.82
5	BE945/99556 Available to backorder	[5] - Electric Box	£81.06 £67.55
6	BE945/99557 Available to backorder	[6] - Screw	£6.02 £5.02
7	BE945/99558 Available to backorder	[7] - Hook	£26.66 £22.22
8	BE945/99559 Available to backorder	[8] - Steering Bottom Part	£193.78 £161.48
9	BE945/99501 Available to backorder	[9] - Blade Adjustment Wheel	£78.64 £65.53
10	BE53/0033 Available to backorder	[10] - Bearing (T77)	£42.38 £35.32
11	BE945/99502 Available to backorder	[11] - Aluminium Housings	£75.34 £62.78
12	BE945/99560 Available to backorder	[12] - Hexagonal Bolt	£7.58 £6.32
13	BE945/99503 Available to backorder	[13] - Adjustment Shaft	£72.04 £60.03
14	BE945/99561 Available to backorder	[14] - Bakelite	£33.66 £28.05
15	BE945/99562 Available to backorder	[15] - Adjustment Pin	£17.68 £14.73
16	BE945/99563 Available to backorder	[16] - Bolt	£6.66 £5.55
17	BE945/99564 Available to backorder	[17] - Locknut	£3.76 £3.13
18	BE945/99506 Available to backorder	[18] - Extension Shaft	£29.58 £24.65
19	BE945/99509 Available to backorder	[19] - Blade Adjustment Yoke	£117.08 £97.57
20	BE945/99508 Available to backorder	[20] - Yoke Pin	£72.12 £60.10
21	BE945/99565 Available to backorder	[21] - Cotter Pin	£3.76 £3.13
22	BE945/99510 Available to backorder	[22] - Yoke Arm	£125.08 £104.23
23	BE945/99566 Available to backorder	[23] - Bolt	£7.58 £6.32
24	BE945/99567 Available to backorder	[24] - Washer	£3.76 £3.13
25	BE945/99512 Available to backorder	[25] - Gearbox	£1,036.80 £864.00
26	BE945/99568 Available to backorder	[26] - Electric Motor	£1,453.20 £1,211.00
27	BE945/99569 Available to backorder	[27] - Key	£44.06 £36.72
28	BE945/99570 Available to backorder	[28] - Spring Washer	£3.76 £3.13
29	BE945/99571 Available to backorder	[29] - Washer	£3.76 £3.13
30	BE945/99572 Available to backorder	[30] - Engine Plate	£283.92 £236.60
31	BE945/99573 Available to backorder	[31] - Bolt	£7.58 £6.32
32	BE945/99574 Available to backorder	[32] - Belt Guard	£17.72 £14.77
33	BE945/99575 Available to backorder	[33] - Bolt	£7.58 £6.32
34	BE945/99576 Available to backorder	[34] - Spring Washer	£3.76 £3.13
35	BE945/99577 Available to backorder	[35] - Locknut	£5.62 £4.68
36	BE945/99578 Available to backorder	[36] - Pulley	£127.62 £106.35
37	BE945/99579 Available to backorder	[37] - Ring	£54.68 £45.57
38	BE07.0.106 Available to backorder	[38] - Skt Hd Countersunk M8 x 20 Bzp	£3.56 £2.97
39	BE945/99543 Available to backorder	[39] - Pulley	£259.80 £216.50
40	BE945/99580 Available to backorder	[40] - Special Bolt	£7.58 £6.32
41	BE945/99581 Available to backorder	[41] - V-Belt	£32.52 £27.10
42	BE945/99582 Available to backorder	[42] - Belt Guard	£11.40 £9.50
43	BE945/99583 Available to backorder	[43] - Bolt	£7.58 £6.32
44	BE945/99584 Available to backorder	[44] - Spring Washer	£3.76 £3.13
45	BE945/99538 Available to backorder	[45] - Screw M10 x 20 H.B.C	£29.58 £24.65
46	BE4/3801 Available to backorder	[46] - Washer	£0.48 £0.40
47	BE945/99585 Available to backorder	[47] - Key	£3.48 £2.90
48	BE945/99511 Available to backorder	[48] - Yoke Shaft	£26.92 £22.43
49	BE945/99552 Available to backorder	[49] - Circlip	£3.86 £3.22
50	BE945/99586 Available to backorder	[50] - Nut	£3.76 £3.13
51	BE945/99513 Available to backorder	[51] - Pressure Plate	£125.08 £104.23
52	BE945/99587 Available to backorder	[52] - Retaining Ring	£3.48 £2.90
53	BE53/0034 Available to backorder	[53] - Bearing ( 611808 )	£88.86 £74.05
54	BE53/0036 Available to backorder	[54] - Bearing ( 51107 )	£79.18 £65.98
55	BE945/99514 Available to backorder	[55] - Aluminium Ring	£379.20 £316.00
56	BE945/99544 Available to backorder	[56] - V Belt ( 13 x 1850 )	£51.68 £43.07
57	BE945/99515 Available to backorder	[57] - Main Shaft	£192.48 £160.40
58	BE945/99588 Available to backorder	[58] - Retaining Ring	£3.48 £2.90
59	BE945/99516 Available to backorder	[59] - Pressure Cap	£100.08 £83.40
