Belle Pro 600X - Clutch Assembly (Petrol)

Belle Pro 600X - Clutch Assembly (Petrol)

Part No. Pro600XClutchPetrol-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Pro 600X - Clutch Assembly (Petrol)

Belle Pro 600X - Clutch Assembly (Petrol)

Description

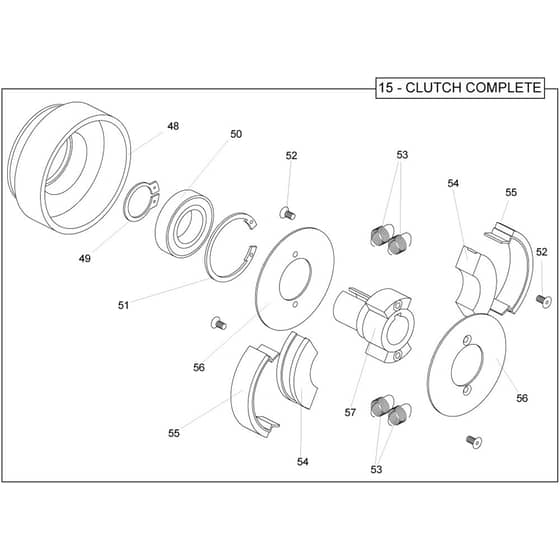

Belle Pro 600X - Clutch Assembly (Petrol) - Parts Diagram

Ref.		Img.	Part No.	Details
	48		BE945/99524 Available to backorder	[48] - Cover Coupling		£137.52 £114.60
	49		BE945/99525 Available to backorder	[49] - Circlip		£20.32 £16.93
	50		BE53/0030 Available to backorder	[50] - Bearing		£49.54 £41.28
	51		BE945/99527 Available to backorder	[51] - Circlip		£17.32 £14.43
	52		BE945/99542 Available to backorder	[52] - Screw ( M5 x 10 Hic )		£7.63 £6.36
	53		BE945/99528 Available to backorder	[53] - Clutch Spring		£4.78 £3.98
	54		BE945/99529 Available to backorder	[54] - Shoe Parts		£88.68 £73.90
	55		BE945/99530 Available to backorder	[55] - Clutch Shoes		£57.97 £48.31
	56		BE945/99531 Available to backorder	[56] - Cover		£51.54 £42.95
	57		BE945/99532 Available to backorder	[57] - Clamping Bush		£71.64 £59.70

Description

Belle Pro 600X - Clutch Assembly (Petrol) - Parts Diagram
